Sony STR-DE875 - Printed Wiring Boards - Video Section; S-Video and Video Board Layouts

2323
STR-DE875/DE975

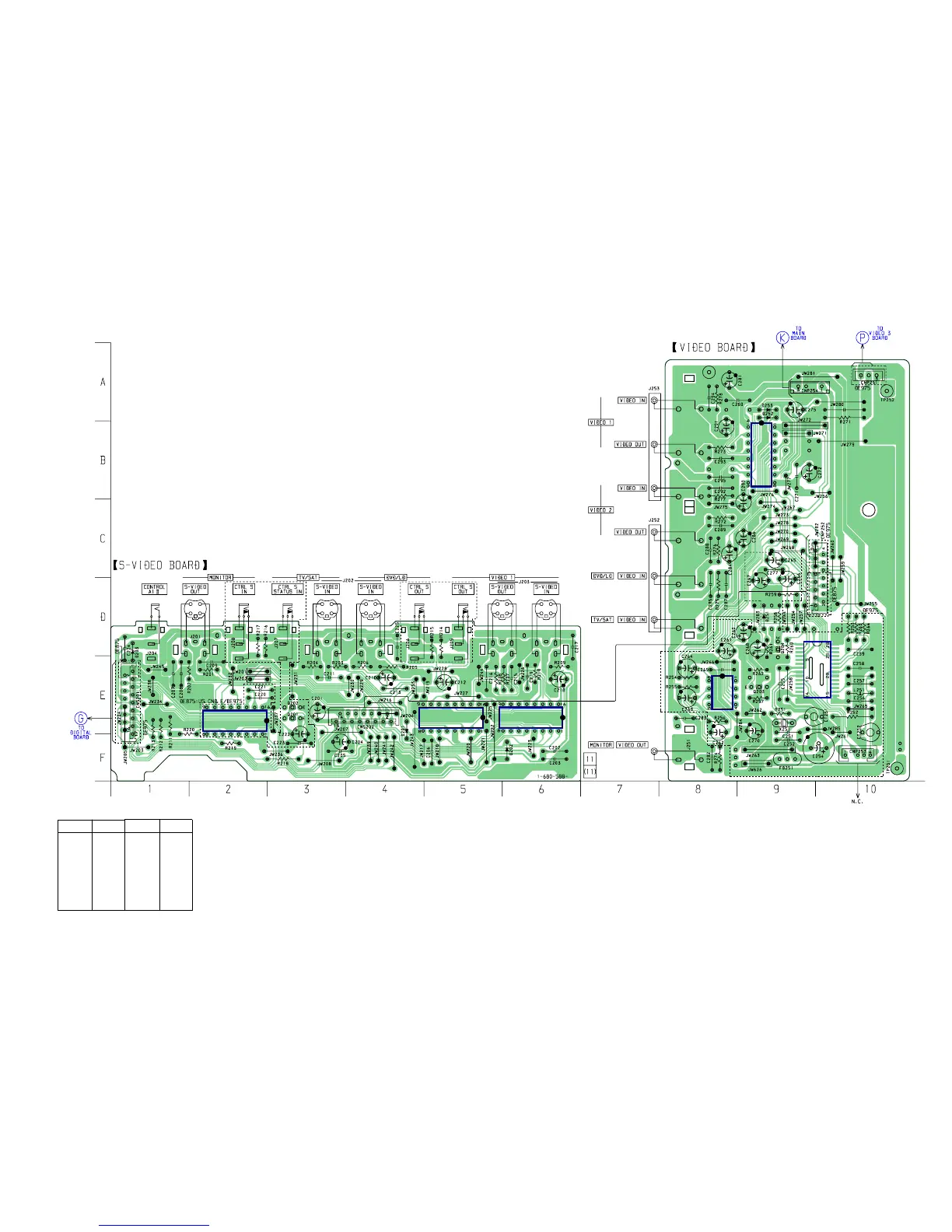

3-14. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 8 for Circuit Boards Location.
IC251
IC252
IC253
IC201
IC202
IC203
DE875: US,CND,E/DE975
CNS509
(PAGE 12)
CN804
(PAGE 17)
CNP104
(PAGE 25)
Ref. No. Location
• Semiconductor
Location
D201 E-4
D202 F-6
D203 D-1
D251 D-9
D252 A-9
D253 A-9
IC201 E-5
IC202 E-6
Ref. No. Location
IC203 E-2
IC251 B-9
IC252 E-10
IC253 E-8
Q201 E-3
Q202 E-3
Q203 E-9
Q204 D-9
