36
STR-DE875/DE975
SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
• Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
CH : Chinese model
AUS : Australian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

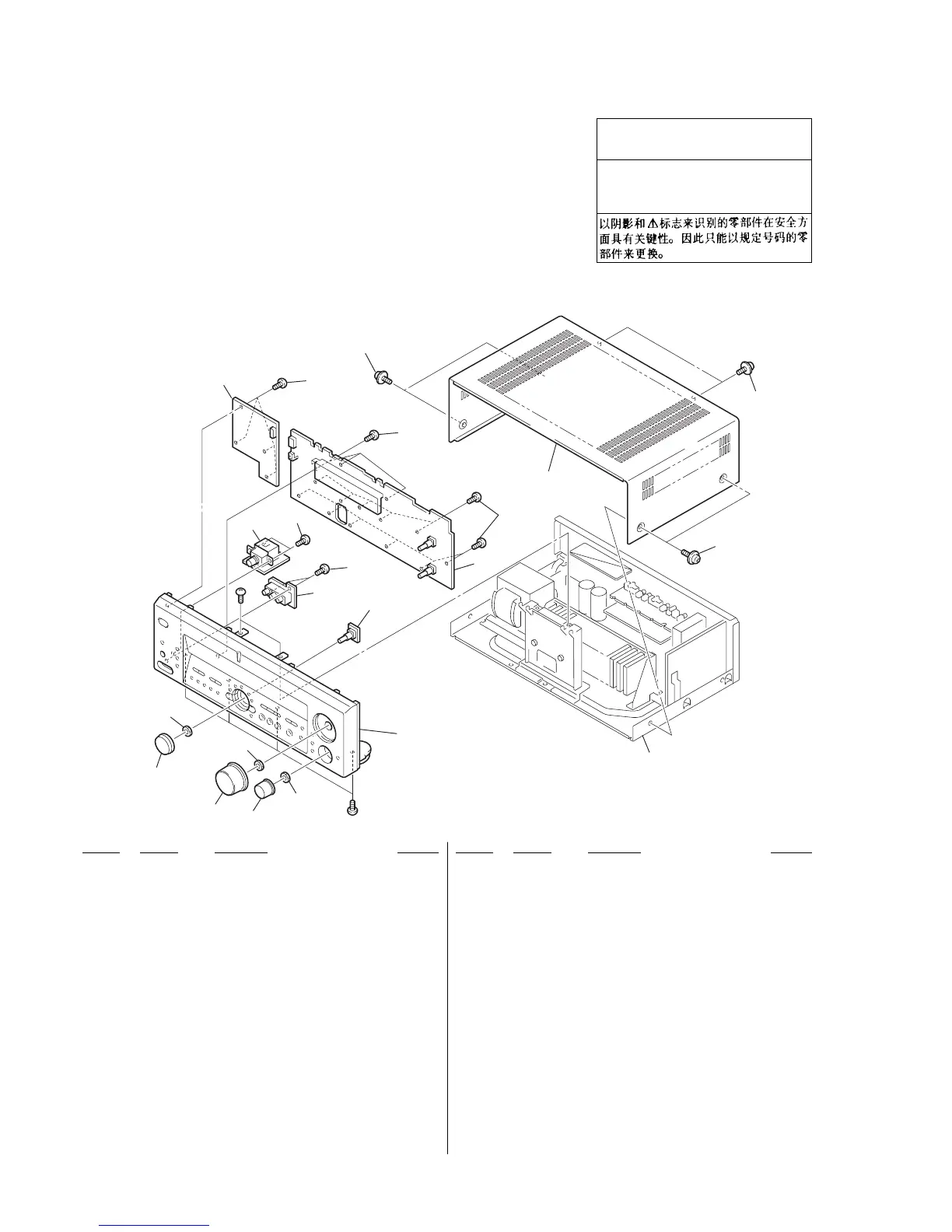

4-1. FRONT PANEL SECTION
1 X-4953-522-1 FRONT PANEL ASSY (BLACK)(DE975:US)
1 X-4953-592-1 FRONT PANEL ASSY (BLACK)(DE975:CND)
1 X-4953-593-1 FRONT PANEL ASSY (BLACK)(DE875:US)
1 X-4953-594-1 FRONT PANEL ASSY (BLACK)(DE875:CND)
1 X-4953-595-1 FRONT PANEL ASSY (BLACK)(DE875:AUS,E)
1 X-4953-597-1 FRONT PANEL ASSY (SILVER)(DE875:AEP,UK)
1 X-4953-598-1 FRONT PANEL ASSY (GOLD)(DE875:MY,SP,CH)
1 X-4953-599-1 FRONT PANEL ASSY (BLACK)(DE875:AEP,UK)
2 4-232-113-01 KNOB (VOL)(BLACK)
(DE875:US,CND,AEP,UK,E,AUS/DE975)
2 4-232-113-11 KNOB (VOL)(SILVER)(DE875:AEP,UK)
2 4-232-113-21 KNOB (VOL) (GOLD)(DE875:MY,SP,CH)
3 4-232-239-01 KNOB (JOG)(BLACK)
(DE875:US,CND,AEP,UK,E,AUS/DE975)
3 4-232-239-11 KNOB (JOG) (GOLD)(DE875:MY,SP,CH)
3 4-232-239-21 KNOB (JOG) (SILVER)(DE875:AEP,UK)
4 4-232-569-01 KNOB (FN DE9) (BLACK)(DE875)
4 4-232-569-11 KNOB (FN DE9) (GOLD)(DE875:MY,SP,CH)
4 4-232-569-21 KNOB (FN DE9) (SILVER)(DE875:AEP,UK)
5 4-951-620-01 SCREW (2.6X8), +BVTP
6 1-680-591-11 JOG BOARD
7 1-680-595-11 HEADPHONE BOARD
8 1-680-592-11 VIDEO 3 BOARD (DE975)
9 A-4476-066-A DISPLAY BOARD, COMPLETE (DE975)
9 A-4476-160-A DISPLAY BOARD, COMPLETE (DE875)
10 1-680-594-11 POWER SWITCH BOARD
11 4-232-576-11 CASE (DE9)(BLACK)
(DE875:US,CND,AEP,UK,E,AUS/DE975)
11 4-232-576-31 CASE (DE9) (GOLD)(DE875:MY,SP,CH)
11 4-232-576-51 CASE (DE9) (SILVER)(DE875:AEP,UK)
12 4-210-291-01 SCREW (CASE 3 TP2) (FOR BLACK)
(DE875:US,CND,AEP,UK,E,AUS/DE975)
12 4-210-291-11 SCREW (CASE 3 TP2)(FOR SILVER,GOLD)
(DE875:AEP,UK,MY,SP,CH)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
2
3
7
1
5
5
6
9
10
12
12
11
12
4
5
8
#1
#1
5
5
not supplied
not supplied
CHASSIS SECTION
not supplied
To Next Page
