2525
STR-DE875/DE975

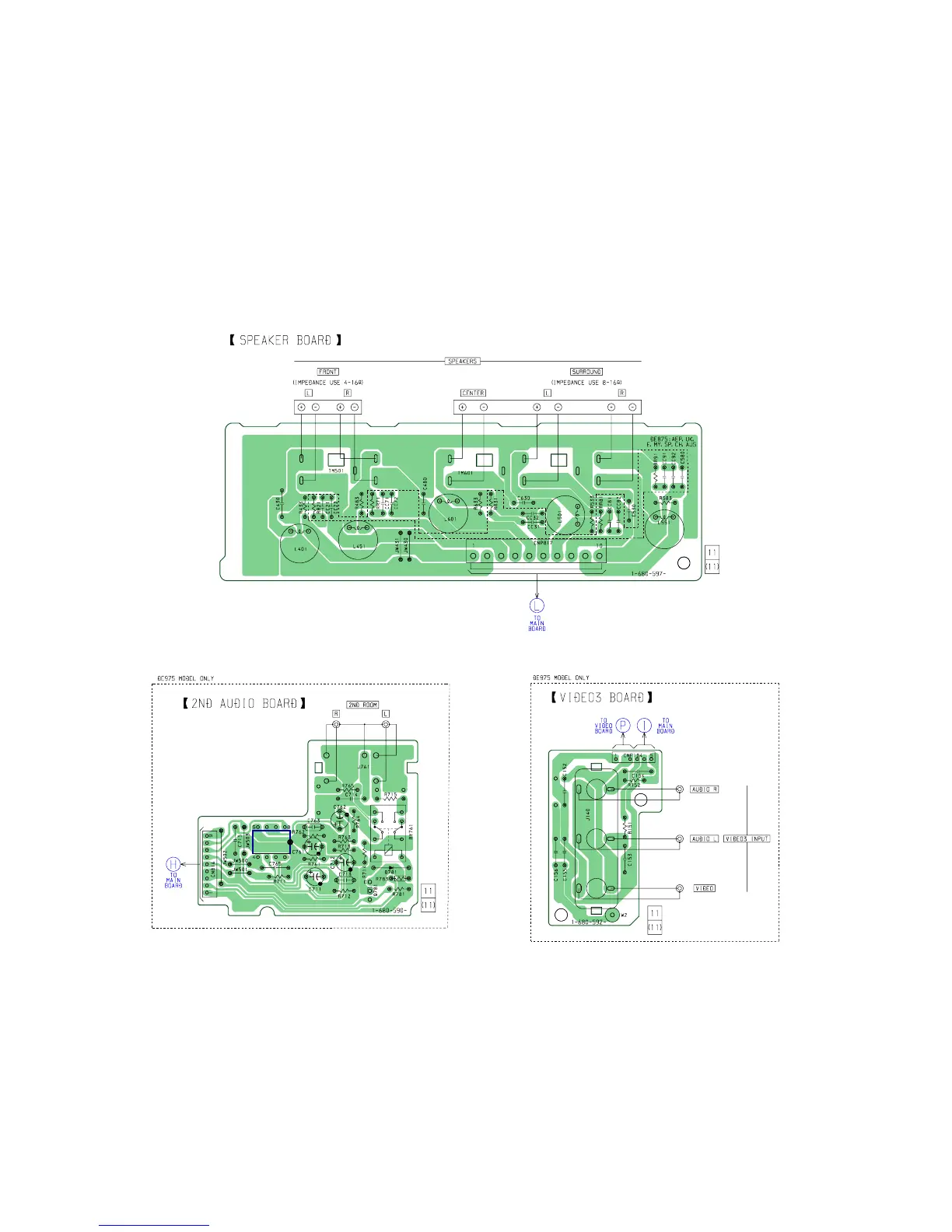

3-16. PRINTED WIRING BOARD – SPEAKER SECTION –
• See page 8 for Circuit Boards Location.
IC761
CN807
(PAGE 17)
CNP811
(PAGE 17)
CNP251
(PAGE 23)
CNP809
(PAGE 17)
