STR-DE875/DE975

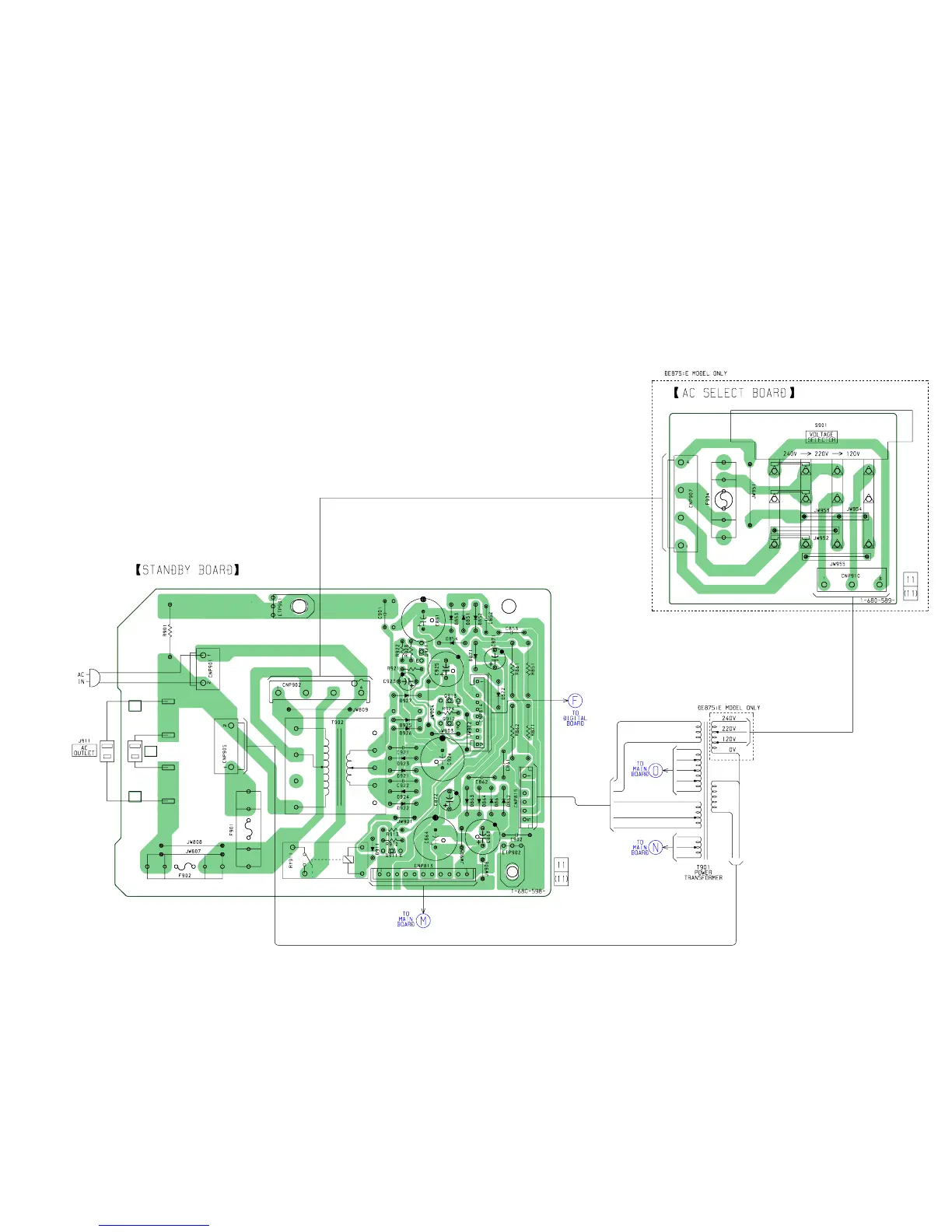

3-18. PRINTED WIRING BOARD – POWER SECTION –
• See page 8 for Circuit Boards Location.
CNP803
(PAGE 17)
CNP506
(PAGE 12)
CNP801
(PAGE 17)
CNP802
(PAGE 17)
