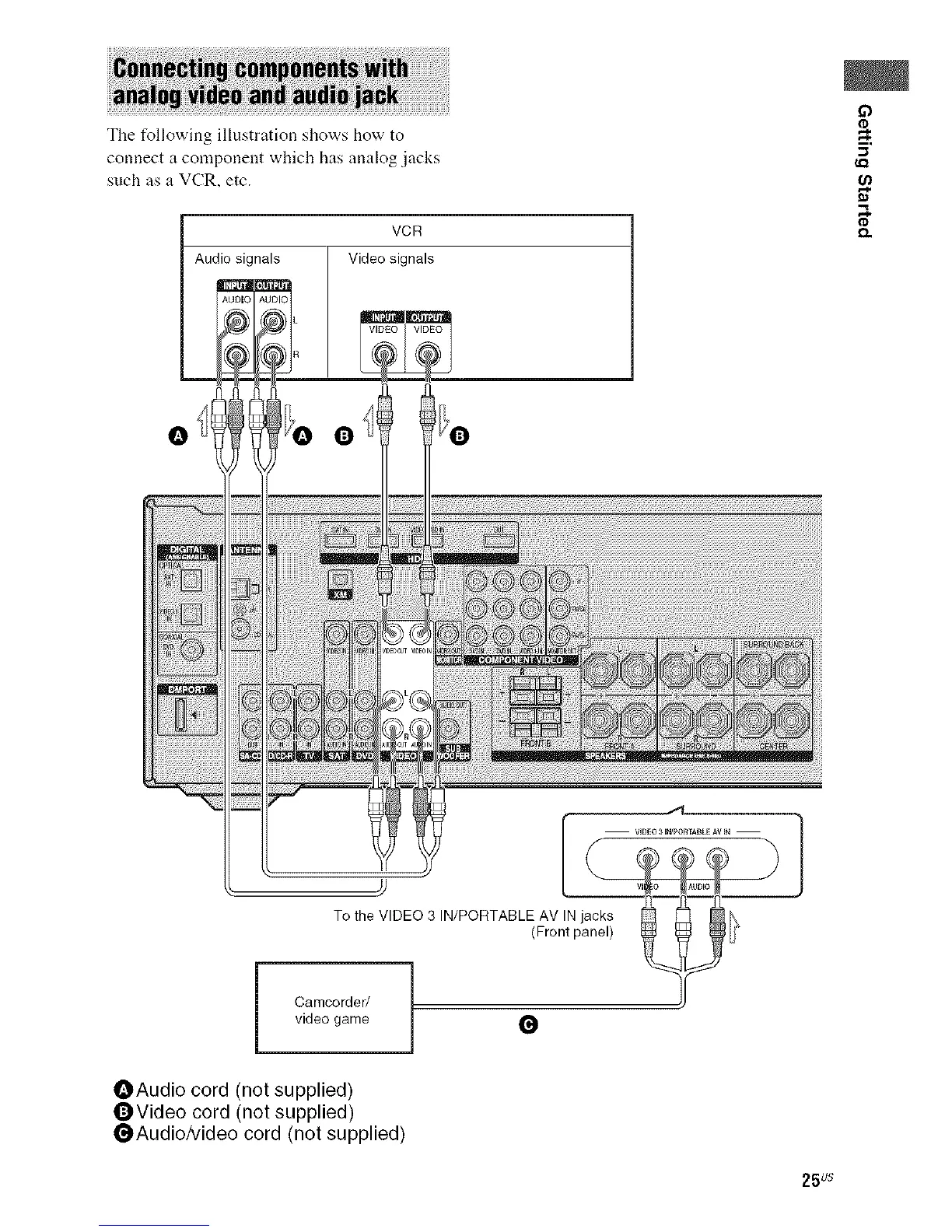

The following illustration shows how to
connect a component which has analog .jacks
such as a VCR, etc.
VCR
Audio signals Video signals
O Q
To the VIDEO 3 IN/PORTABLE AV IN jacks
(Front panel)
i Camcorder/
video game
O
OAudio cord (not supplied)
OVideo cord (not supplied)
_Audio/Video cord (not supplied)
