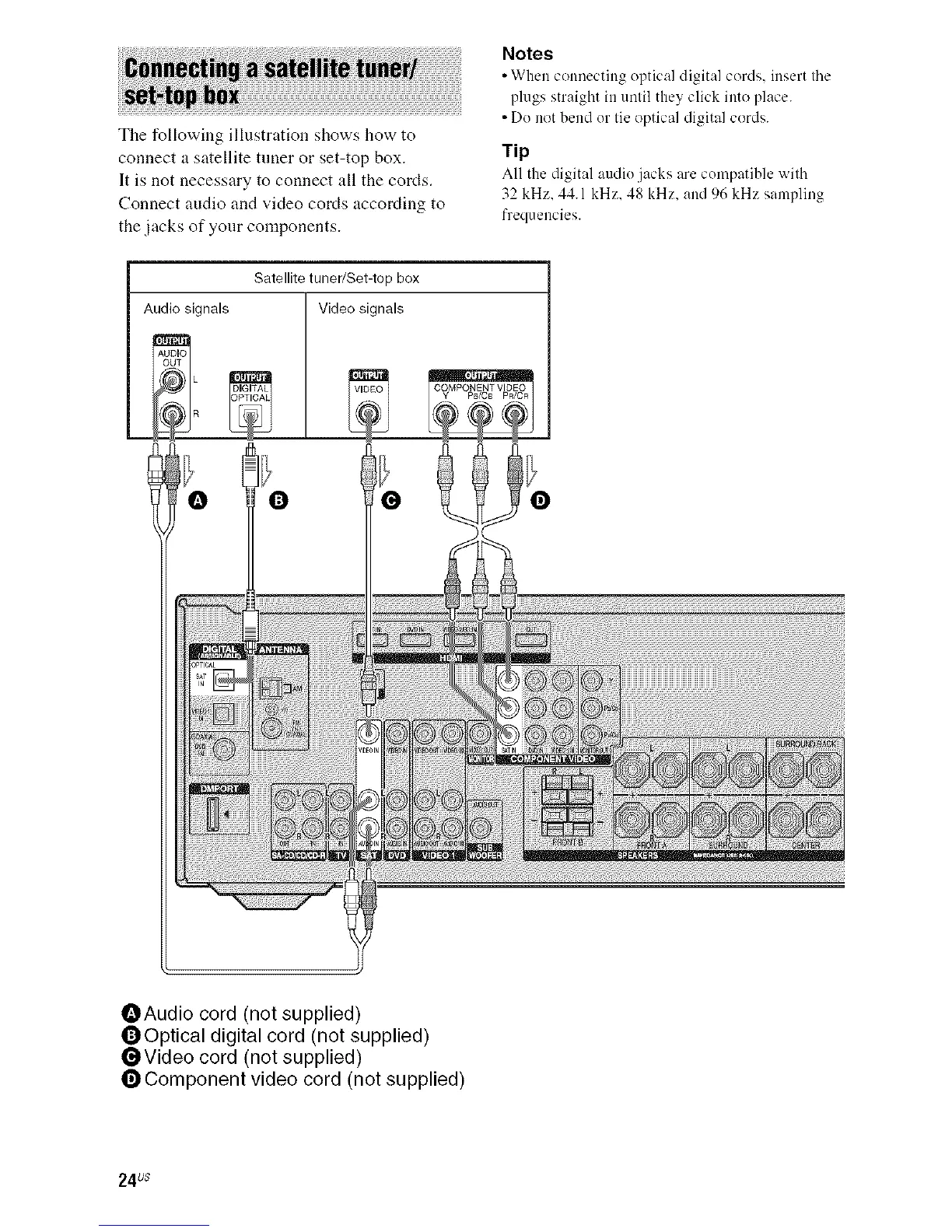

The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Satellite tuner/Set-top box
Audio signals Video signals
Notes
• When coenectiog optical digit:d cords, insert tile
plugs straight in entil they click into place.
• De not bend er tie optical digital cords.
Tip
All the digital audie jacks are compatible with
32 kHz. 44.1 kHz. 48 kHz. and 96 kHz sampling
frequencies.
OAudio cord (not supplied)
OOptical digital cord (not supplied)
OVideo cord (not supplied)
OComponent video cord (not supplied)
24us
