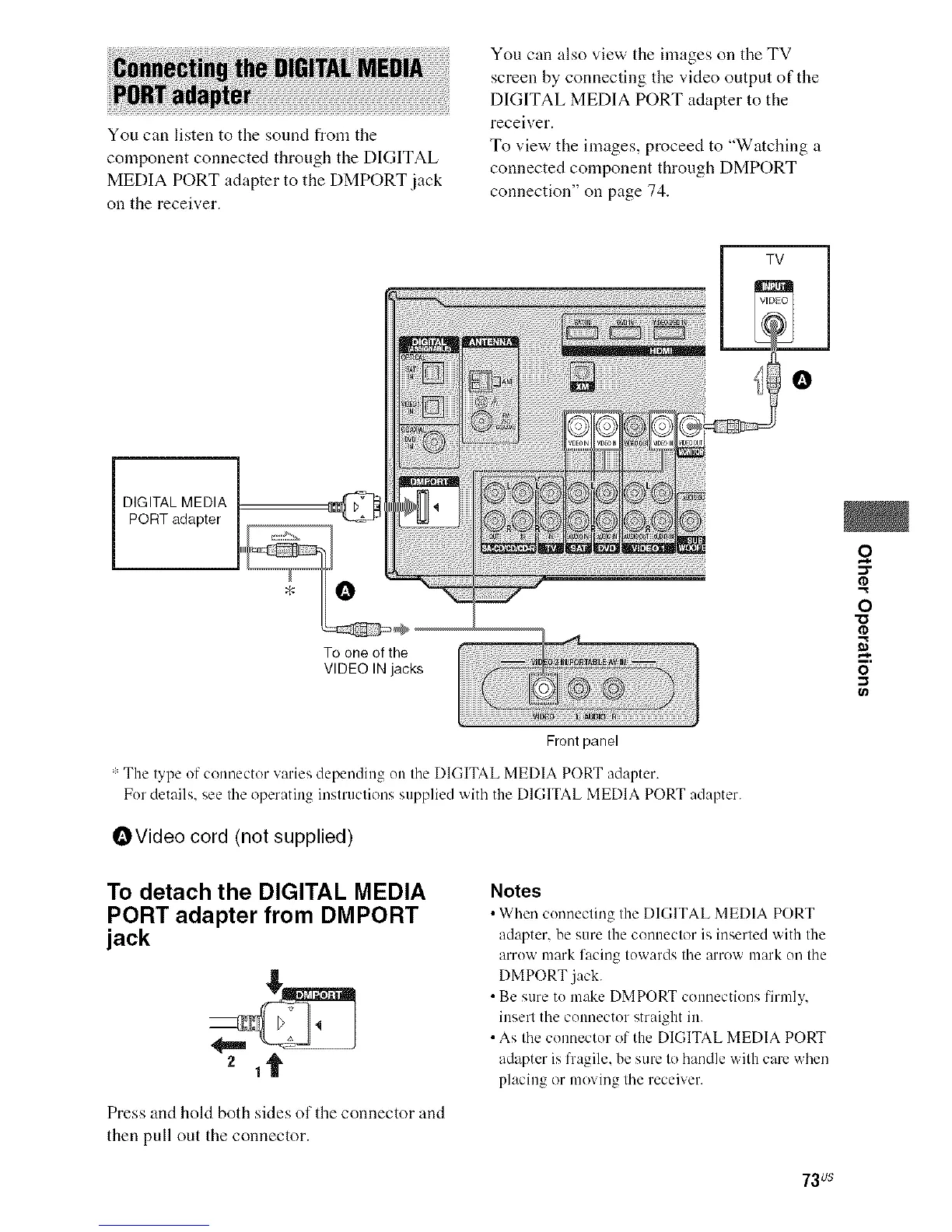

You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to "Watching a
connected component through DMPORT
connection" on page 74.
TV
DIGITAL MEDIA
PORT adapter
To one ofthe
VIDEO IN jacks
o
O
t_
Front panel
: The type of connector varies depending en tile DIGITAL MEDIA PORT adapter.
Fer details, see tile operating instructions supplied with the DIGITAL MEDIA PORT adapter.
OVideo cord (not supplied)
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
$,
2 it
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When cennccting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrew mark facing towards the arrow mark en the
DMPORT jack.
• Be sure te make DMPORT connections firmly,
insert the cennector straight in.
• As the connecter of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.
73us
