Getting Started

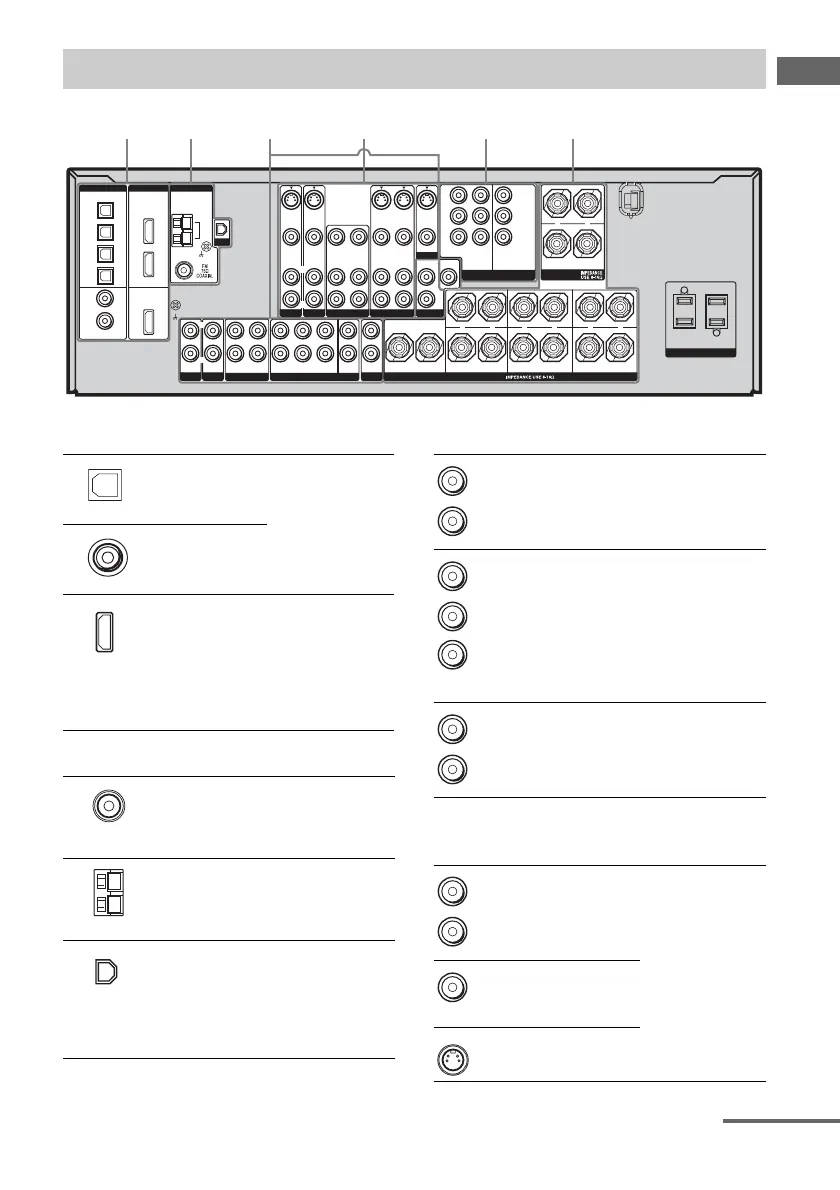

Rear panel
ASSIGNABLE
(INPUT ONLY)
AC OUTLET
DVD
IN
COAXIAL
SA-CD/
CD
IN
OPTICAL
VIDEO 1
IN
TV/SAT
IN
MD/
TAPE
IN
MD/
TAPE
OUT
ASSIGNABLE
IN 1
IN 2
MONITOR
OUT
SIGNAL GND
DIGITAL HDMI
XM
ANTENNA
AM
TV/SAT
AUDIO IN
VIDEO IN
S-VIDEO
IN
DVD
AUDIO IN
VIDEO IN
S-VIDEO
IN
R
L
AUDIO IN
VIDEO IN
AUDIO OUT
VIDEO OUT
L
R
VIDEO 2 VIDEO 1
AUDIO OUT
VIDEO OUT
S-VIDEO
OUT
AUDIO IN
VIDEO IN
S-VIDEO
IN
L
R
PRE OUT
MONITOR
VIDEO OUT
S-VIDEO
OUT
SUR
L
R
P
B
/C
B
/B-Y
P
R
/C
R
/R-Y
Y
ASSIGNABLE
TV/SAT
IN
DVD
IN
MONITOR
OUT
COMPONENT VIDEO
FRONT B
L
R
+ –
SPEAKERS
FRONT A
L
R
+ –
SURROUND
L
R
+ –
SURROUND BACK
(ZONE 2)
L
R
+ –
CENTER
+ –
SPEAKERS
SUB
WOOFER
PHONO
IN
SA-CD/CD
L
R
L
R
MULTI CH IN
L
R
ZONE 2
OUT IN
L
R
FRONT SURROUND
L
R
SUR
BACK
SUB
WOOFER
CENTER
OUT
IN
MD/TAPE
1 3 4 5 62
A DIGITAL INPUT/OUTPUT section
OPTICAL
IN/OUT jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 18, 25,
27).
COAXIAL IN
jack
HDMI IN/
MONITOR
OUT jack
Connects to a DVD
player, or a satellite
tuner. The image
and the sound are
output to TV or a
projector (page
29).
B ANTENNA section
FM
ANTENNA
Connects to the
FM wire antenna
supplied with this
receiver (page 31).
AM
ANTENNA
Connects to the
AM loop antenna
supplied with this
receiver (page 31).
XM Connects to the
XM connect-and-
play antenna (not
supplied with this
receiver) (page
75).
C AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jack
Connects to an MD
deck or CD player,
etc. (page 21).
MULTI CH IN
jack
Connects to a
Super Audio CD
player or DVD
player which has
an analog audio
jack for 7.1
channel sound
(page 20).
PRE OUT
SUR jack
Connects to an
external power
amplifier.
D VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jack
Connects the video
and audio jacks of
a VCR or a DVD
player (page 24,
25, 26, 27, 28).
VIDEO IN/
OUT jack*
S-VIDEO IN/
OUT jack*
White (L)
Red (R)
White (L)
Red (R)
Black
White (L)
Red (R)
White (L)
Red (R)
Yellow
