[16] Preparation 2. Connecting speakers
Connecting 7.1-channel speaker system using
surround back speakers

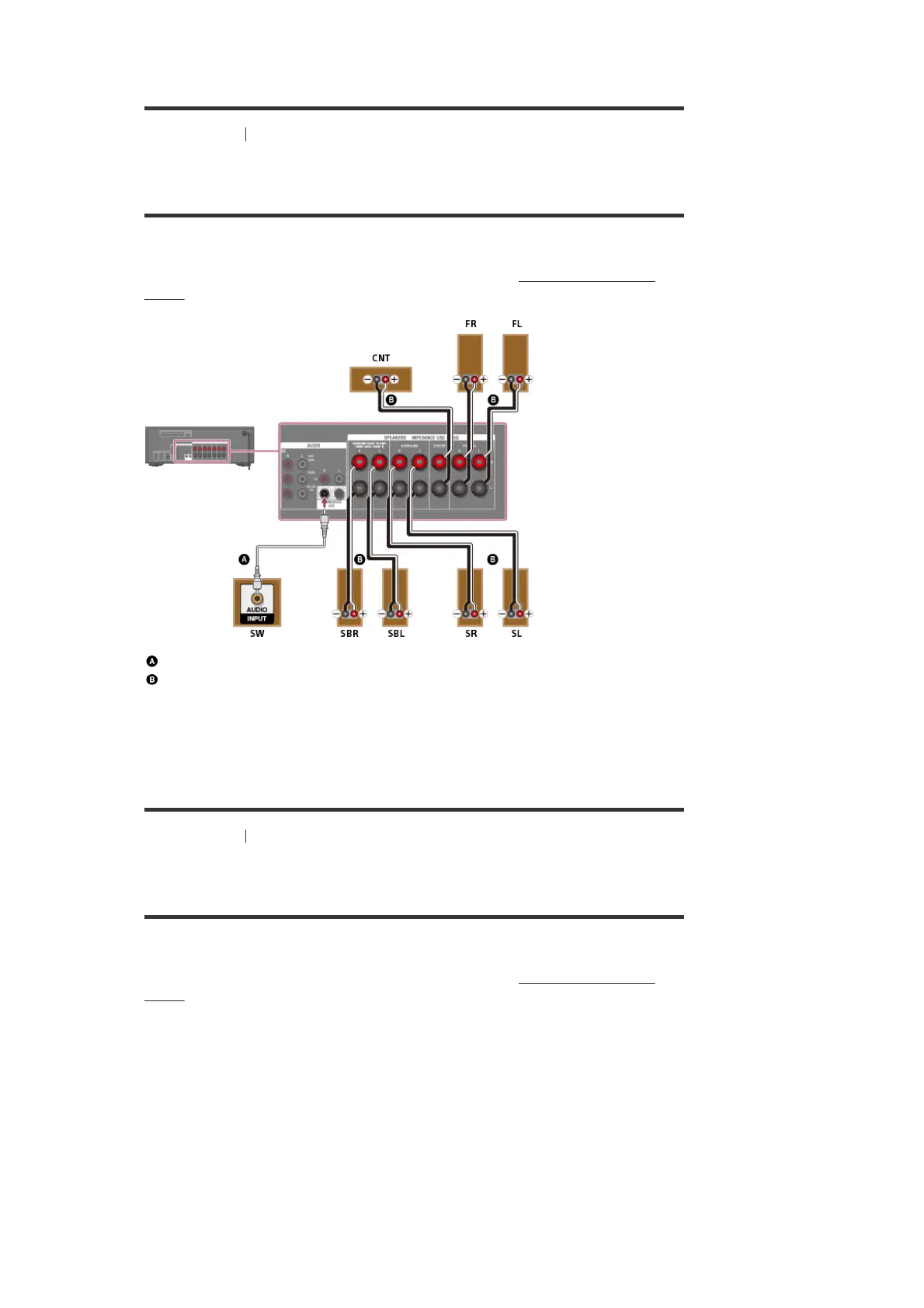

Connect each speaker as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the receiver, see “How to connect speaker
cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
After you have connected the surround back speakers, set [Speaker Setting] - [Surround Back
Speakers Assign] to [Surround Back Speakers] from the home menu.
[17] Preparation
2. Connecting speakers
Connecting 7.1-channel speaker system using front
high speakers
Connect each speaker as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the receiver, see “How to connect speaker
cables.”
