KV-25M2/25T2
SECTION 2
DISASSEMBLY

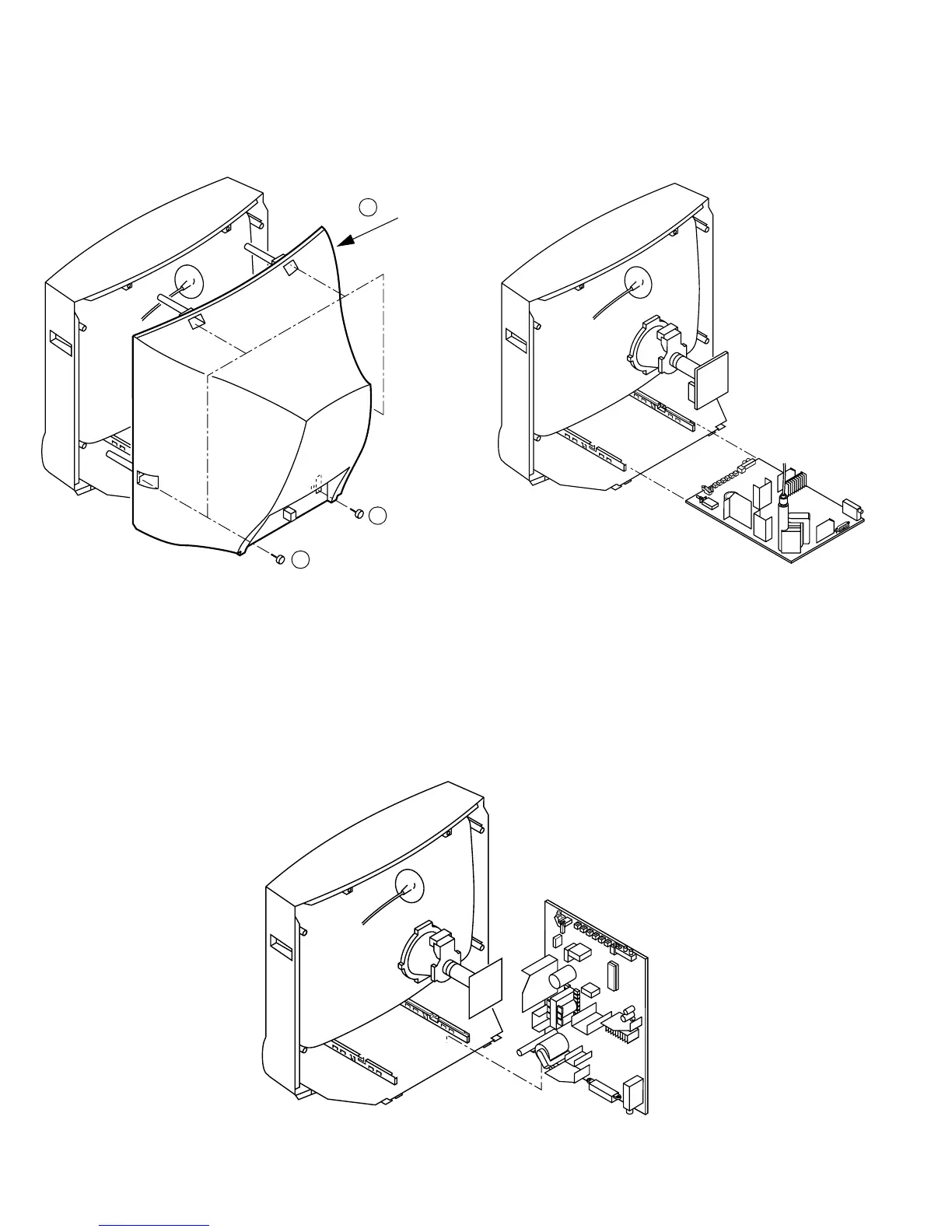

2-1. REAR COVER REMOVAL
2-3. SERVICE POSITION
2-2. CHASSIS ASSY REMOVAL
2 1 Screw
BTV 4x16
1 4 Screws BTV 4x16
3 Rear Cover
