KV-25M2/25T2
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

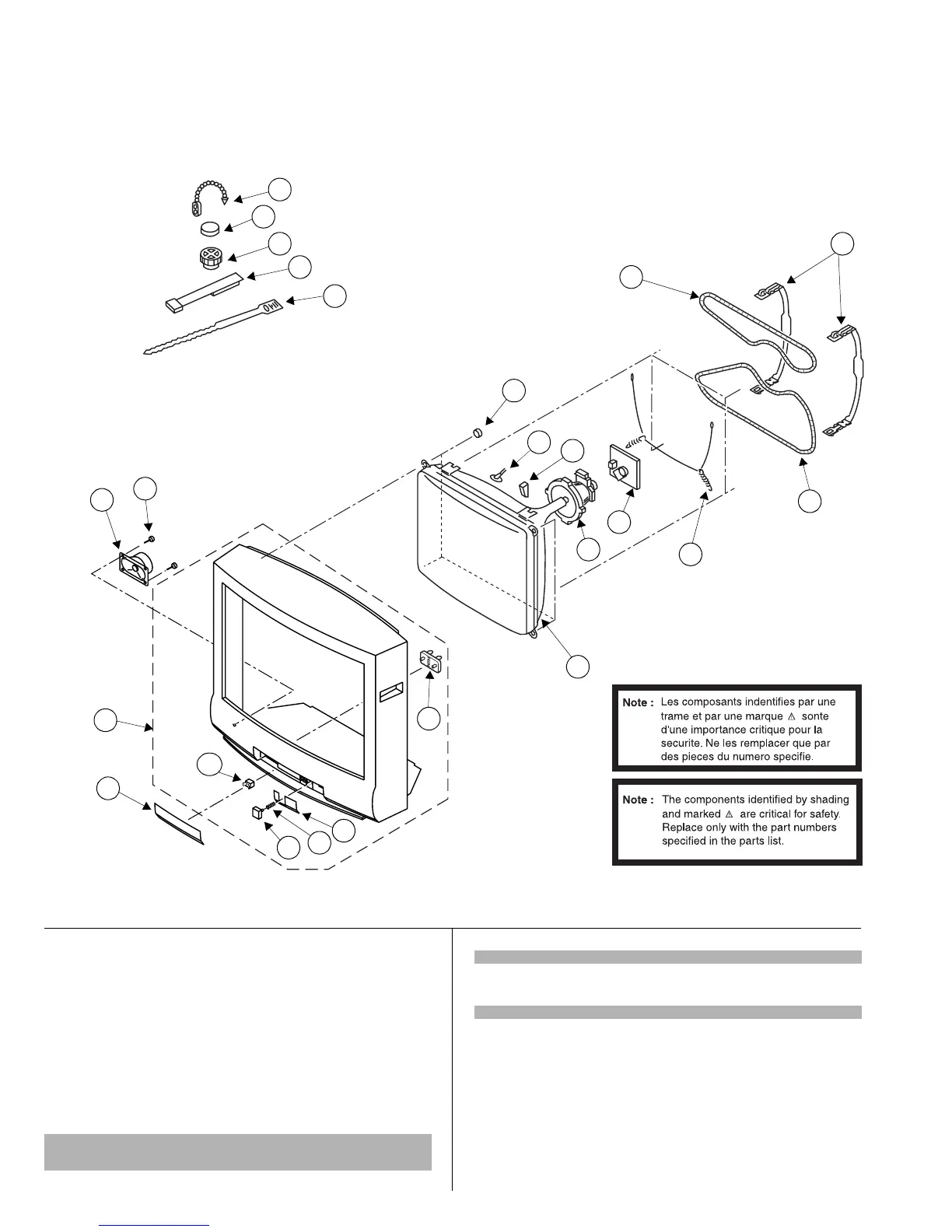

6-2. PICTURE TUBE
53
63
65
52
69
70
71
72
73
62
54
56
57
58
64
59
60
66
55
61
62
51
68
67
51 X-4200-391-1 BEZNET ASSY 53-57
52 4-204-212-01 DOOR, BARE (KV-25M2A/25M2D/25M2E/25M2K)
4-204-211-11 DOOR, PRINTED (KV-25T2A)
4-204-211-01 DOOR, PRINTED (KV-25T2B/25T2D/25T2E/
KV-25T2K/25T2L/25T2R/
KV-25T2U)
53 4-047-464-01 CATCHER, PUSH
54 4-204-216-01 BUTTON, POWER
55 4-202-964-01 SPRING
56 4-204-215-01 WINDOW
57 4-204-213-01 GUIDE LIGHT
58 £ 8-733-254-05 PICTURE TUBE (SD-257) (M60LCS60X)
59 £ 8-451-404-23 DEFLECTION YOKE (Y25GXABA)
60 *A-1638-111-A C BOARD COMPLETE
61 4-369-318-21 SPRING, TENSION
62 £ 1-416-465-21 COIL, DEMAGNETIC
63 4-202-745-01 HOLDER, DGC (25)
64 3-704-495-01 SPACER, DY
65 £ 1-251-317-31 CAP ASSY, HIGH VOLTAGE
66 4-203-043-01 SCREW (PT)
67 1-504-698-11 SPEAKER (5X9CM)
68 7-685-648-79 SCREW +BVTP 3X12
69 4-308-870-00 CLIP, LEAD WIRE
70 1-425-032-00 MAGNET, DISK; 10MM Ø
71 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
72 X-4387-214-1 PERMALLOY ASSY, CORRECTION
73 3-701-007-00 BAND, BINDING
