Sony Trinitron KV-25M2A - 6 Exploded Views; Chassis

41
KV-25M2/25T2
SECTION 6
EXPLODED VIEWS
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK
• Items with no part number and no description are not
stocked because they are seldom required for routine
service.
• The construction parts of an assembled part are indi-
cated with a collation number in the remarks column.
• Items marked “ * “ are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering
these items.

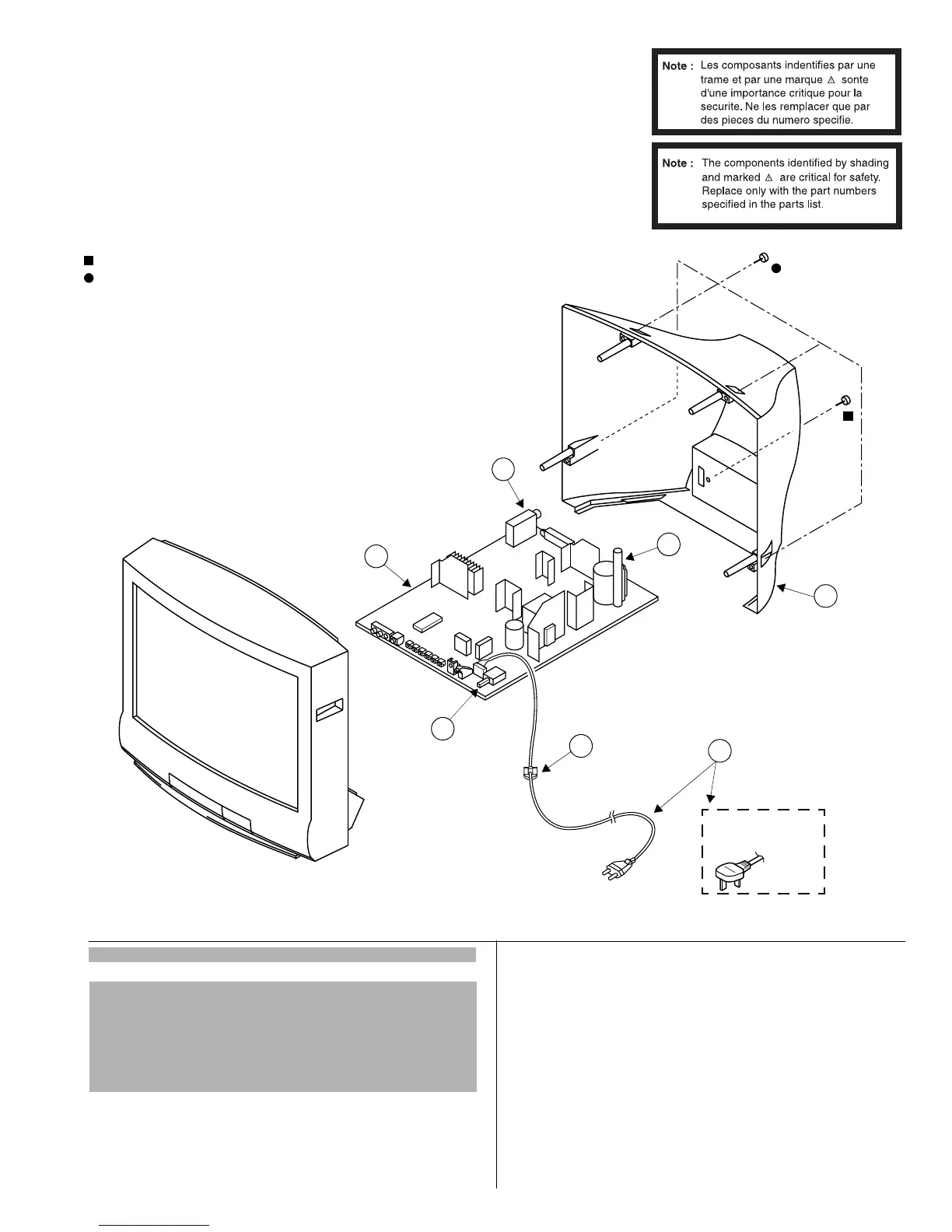

6-1. CHASSIS
NOTE :
1 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
2 4-202-531-01 AC CORD LOCK (SC)
3 £ 1-765-286-11 CORD, POWER
(KV-25M2A/25T2A/25T2B/25M2D/25T2D/25M2E
KV-25T2E/25T2K/25M2K)
£ 1-776-860-11 POWER CORD, FILTER (UK) (KV-25T2L/25T2U)
£ 1-690-270-21 CORD, POWER (WITH CONNECTOR) (KV-25T2R)
4 £ 1-453-264-11 TRANSFORMER ASSY, FLYBACK (NX-1680/U2B4)
5 8-598-331-02 TUNER (VSS BT-AC401)
(KV-25M2A/25T2A/25M2D/25T2D/25M2E/25T2E/
KV-25M2K/25T2K/25T2L/25T2R/25T2U)
1-693-310-11 TUNER (TELE-002B) (KV-25T2B)
6 *A-1632-761-A A BOARD, COMPLETE (KV-25M2A)
*A-1632-762-A A BOARD, COMPLETE (KV-25T2A)
*A-1632-788-A A BOARD, COMPLETE (KV-25T2B)
*A-1632-756-A A BOARD, COMPLETE (KV-25M2D)
*A-1632-755-A A BOARD, COMPLETE (KV-25T2D)
*A-1632-758-A A BOARD, COMPLETE (KV-25M2E)
*A-1632-754-A A BOARD, COMPLETE (KV-25T2E)
*A-1632-767-A A BOARD, COMPLETE (KV-25M2K)
*A-1632-766-A A BOARD, COMPLETE (KV-25T2K)
*A-1632-765-A A BOARD, COMPLETE (KV-25T2L)
*A-1632-764-A A BOARD, COMPLETE (KV-25T2R)
*A-1632-763-A A BOARD, COMPLETE (KV-25T2U)
7 4-203-259-21 COVER, REAR
7
5
1
2
4
6
KV-25T2L
KV-25T2U only
7-685-663-79 x 1
7-685-663-71 x 4
3
