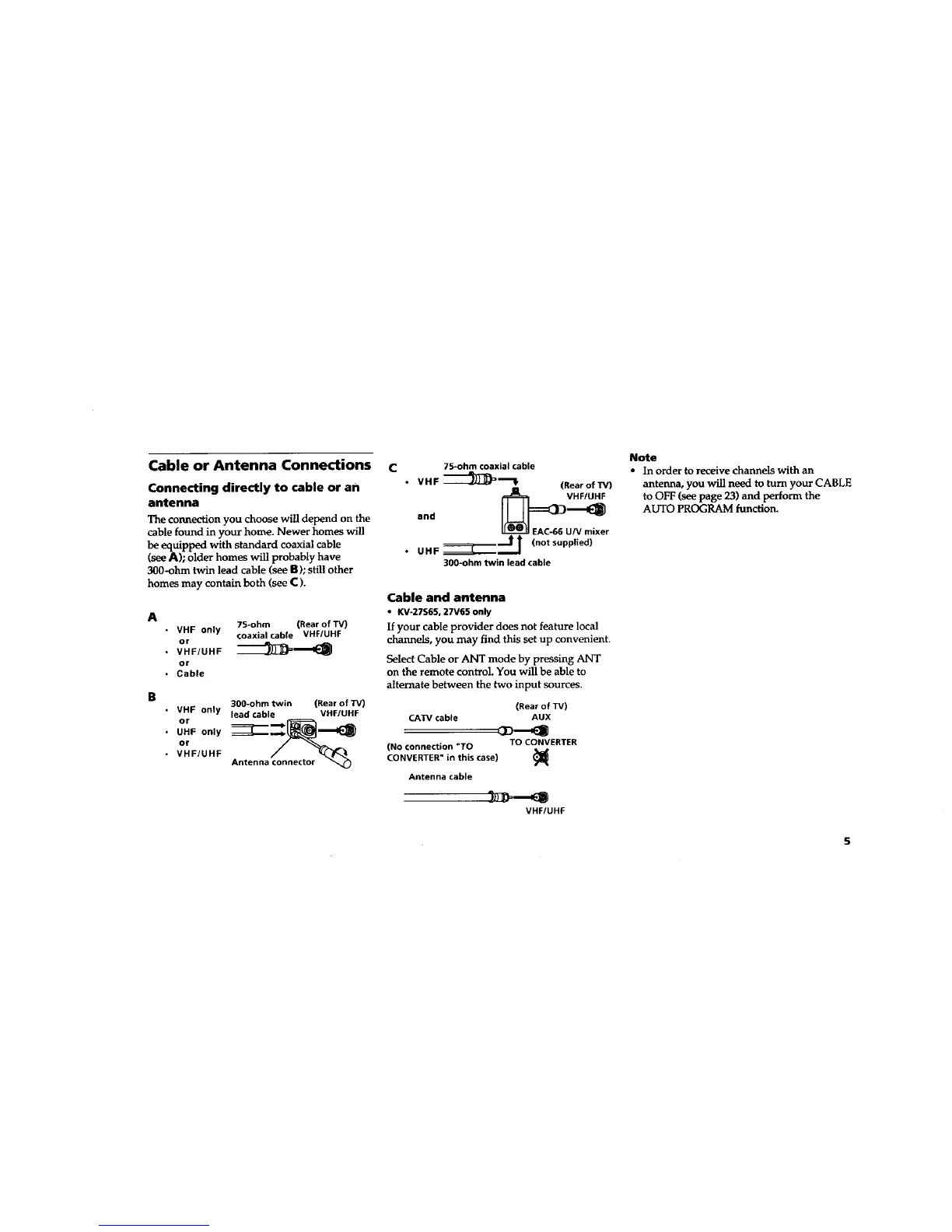

Cable or Antenna Connections c
Connecting directly to cable or an
antenna
The connection you choose will depend on the
cable found in your home. Newer homes will
be equipped with standard coaxial cable
(see A); older homes will probably have
300-ohm twin lead cable (see B); still other
homes may contain both (see C).
A
B
• VHF only
or
• VHF/UHF
or
• Cable
75-ohm (Rearof TV)
coaxialcable VHF/UHF
300-ohm twin (Rear of TV)
• VHF only lead cable VHF/UHF
or
• UHF only
or
• VHF/UHF Antennaconnector
75-ohm coaxial cable
• VHF _l='_ (RearofTV)
EAC-66 U/V mixer
• UHF =====(_'J| #
(not supplied)
300-ohmtwin leadcable
Cable and antenna
• KV.27S65,27V65only
If your cable provider does not feature local
channels, you may find this set up convenient.
Select Cable or ANT mode by pressing ANT
on the remote control. You will be able to
alternate between the two input sources.
(Rear of TV)
CATV cable AUX
aD'-- l
(No connection "TO TO CONVERTER
CONVERTER" in this case)
Antenna cable
VHF/UHF
Note
• In order to receive channels with an
antenna, you will need to turn your CABLE
to OFF (see page 23) and perform the
AUTO PROGRAM function.
