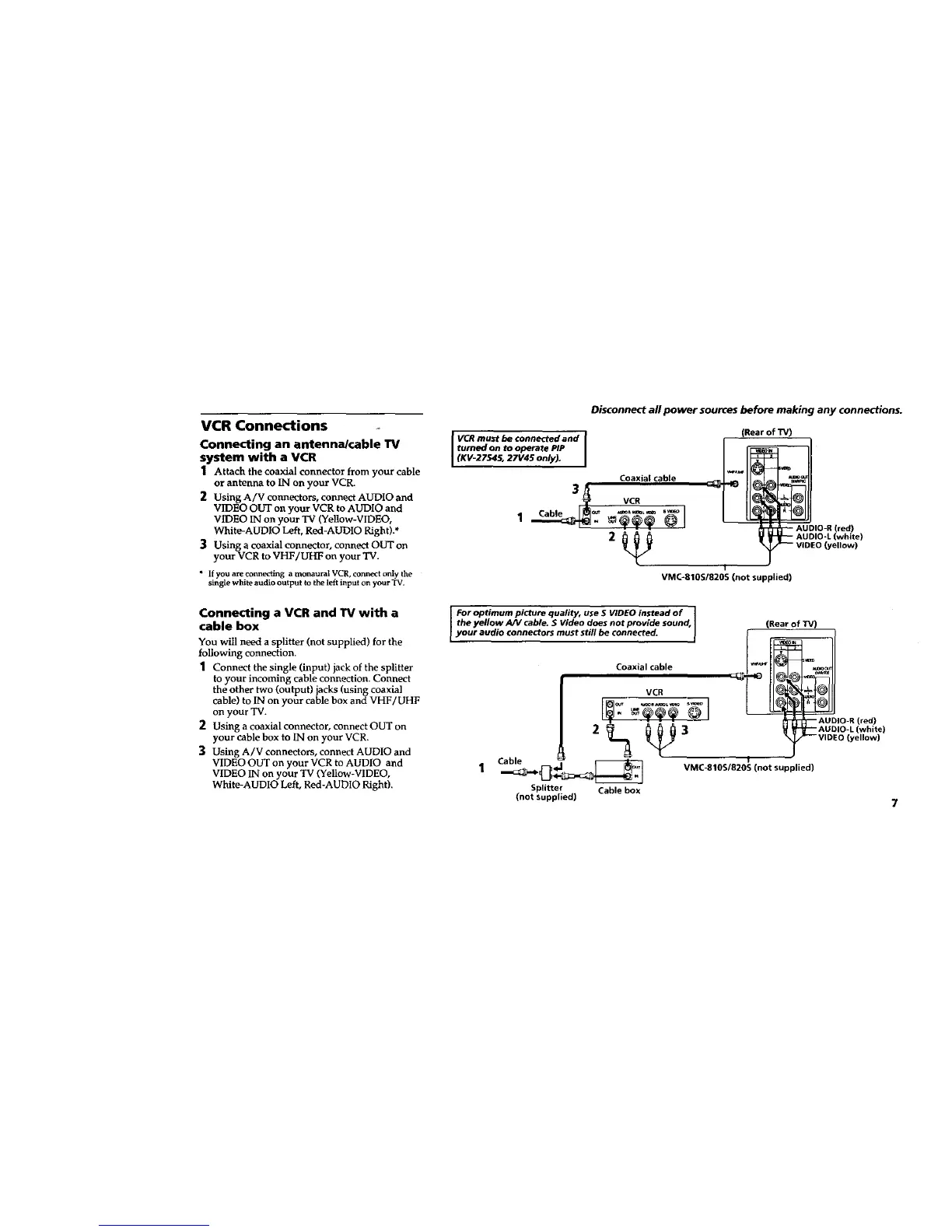

VCR Connections
Connecting an antenna/cable TV
system with a VCR
1 Attach the coaxial connector from your cable
or antenna to IN on your VCR+
2 Using A/V connectors, connect AUDIO and
VIDEO OUT on your VCR to AUDIO and
VIDEO IN on your TV (Yellow-VIDEO,
White-AUDIO Left, Red-AUDIO Right).*
3 Using a coaxial connector, connect OUT on
your VCR to VHF/UHF on your TV.
• If you a_e connecting a monaural VCR, connect only the
single white audio output to the left input on your "IV.
Disconnect aft power sources before making any connections.
VCR must be connected and
turned on to operate PIP
(KV-27S45, 271/45 only).
Coaxial cable
VCR
m_ _ AmOR_L _0_ SW_
1 " _ _1
(Rear of TV)
VMC-810S/820S (not supplied)
Ired)
[white)
(yellow)
Connecting a VCR and lrv with a
cable box
You will need a splitter (not supplied) for the
following connection.
1 Connect the single (input) jack of the splitter
to your incoming cable connection. Connect
the other two (output) jacks (using coaxial
cable) to IN on your cable box and VHF/UHF
on your TV.
2 Using a coaxial connector, connect OUT on
your cable box to IN on your VCR.
3 Using A/V connectors, connect AUDIO and
VIDEO OUT on your VCR to AUDIO and
VIDEO IN on your TV (Yellow-VIDEO,
White-AUDIO Left, Red-AUDIO Right).
For optimum picture quality, use S VIDEO instead of I
the yellow AN cable. S Video does not provide sound,
your audio connectors must still be connected.
1
Cable
Splitter Cable box
(not supplied)
Coaxial cable
VCR
[+:
(Rear of TV)
t
VMC-810S/820S (not supplied)
(redl
(white)
[yellow)
7
