Sony TRINITRON KV-34DRC430 - Cable Wire Dressing

KV-34DRC430/36DRC430
13
KV-34DRC430/36DRC430

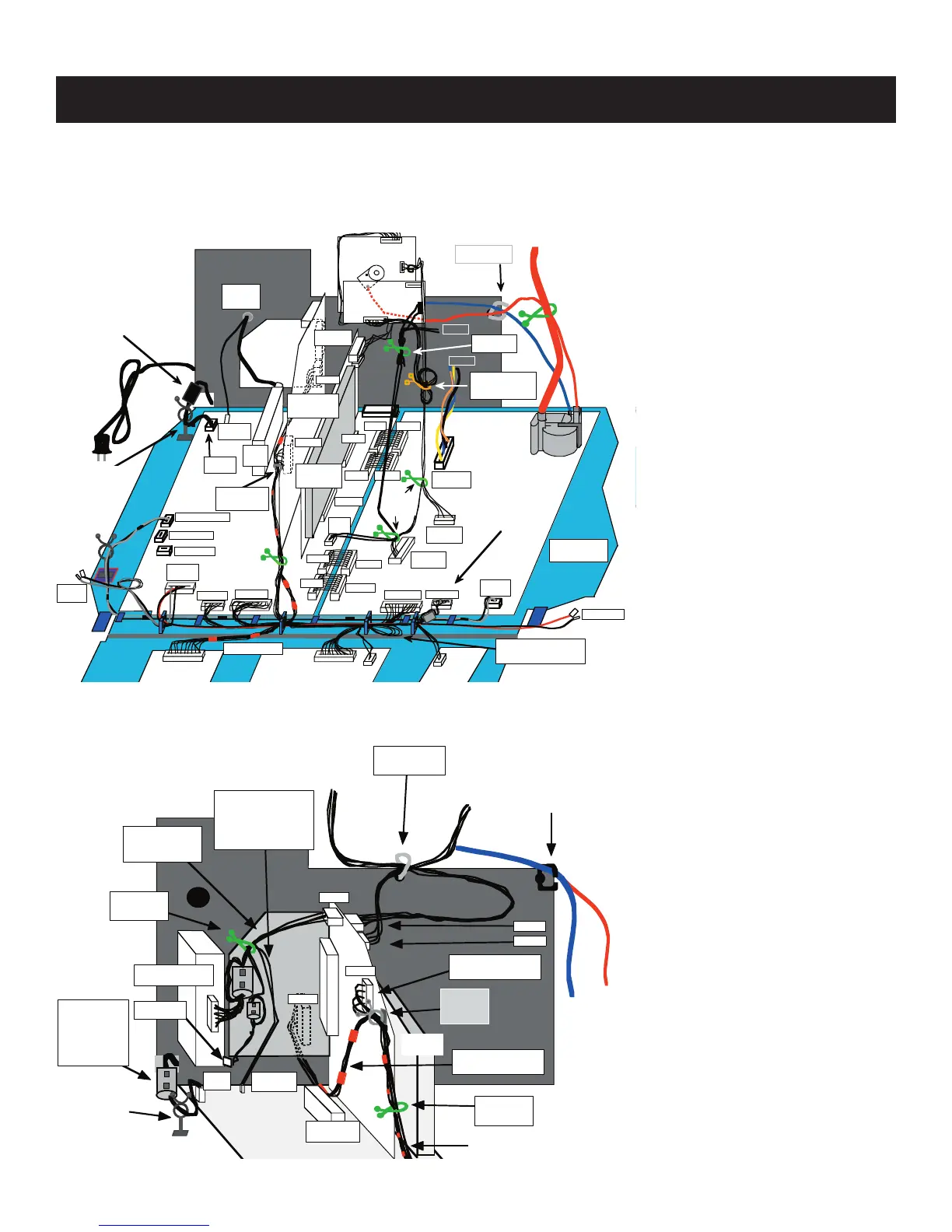

CABLE WIRE DRESSING
[DZ]
[AY]
[HAX]
HB
[
Y
]
CN513
CN527 8P
SPEAKER
CN903
to CY
CN5509 9P
to [VM]
CN1000
CN1100
CN504 (DGC)
CN6502
(AC LINE)
DY CONN
CN5002
CN5009
CN5001
CN5003
200V
BUS CONN
CN510
CN509
CN526 5P
CN501
(Terminal)
[WY]
[CY]
CN9001
CN9002
FOCUS LEAD
5mm
Purse
Lock
HV LEAD
CN514 (AC LINE)
12mm Purse Lock
(38mm height)
4-072-499-01
TO DY
CN9102
CN9103
CN9102
5P
CN505 (DGC)
CN524 12P
CLIP-ON
FERRITE
1-500-386-11
or
1-500-586-11
G2 LEAD
[BY]
[UY]
CN510
CN521
CN900
CN6506
CN5011
Box-Purselock
4-065-850-11
CN2301
CN6503 5PCN6504 12P
H-BRACKET
5mm
Purse
Lock
11mm
Purse Lock
p/n: 3-703-983-02
9mm
Purse
Lock
Angled Purselock
A-SIDE of [MY]
4-355-912-21
CN1501
To Speaker
To
Speaker
5P Conn. Assy.
w/Ferrite Core
1-900-807-16
F-Pin Plug
w/GND lead
1-829-088-11
MAIN
Tu
CN1002
CN1052
[HCX]
CN2805 11P
RGB on CH
TO DY
CN503
MAIN AC
12mm Purse Lock
(38mm height)
4-072-499-01
AC Power Cord
w/filter plug
1-769-837-13
5mm
Purse Lock
[MY]
CN2301 --> CN1000 10P
1-900-808-01
LOOP extra wires in clip here.
MAIN
BRACKET
TO FBT
“G2”
1-900-808-42
Clip
G2/Focus
Lead Here
[UY]
[MY]
[BY]
Purselock
4-072-499-01
Attached to Main
Bracket Assembl
y
CN518
TERMINAL
CN2301
CN1501
CN2304
[AY]
Wire Holder
4-065-850-11
To CH Bd
CN9001 11P
1-900-806-85
To WY Bd
CN9102 6P
1-900-808-32
To HA/HBY Bd
TO FBT
“Focus”
1-900-805-19
CN 503
AC
P-Shield
CLAMP
4-857-472-01
+ 3X12mm Scre
w
CLP2002
Purselock
(angled)
4-355-912-21
CN2805
CN2803
9mm
Purse Lock
3-703-982-02
TERMINAL TAB
ON P-SHIELD
9mm
Purse Lock
3-703-982-02
1-900-808-41
14P Conn. Assy.
w/Ferrite Core
1-900-805-24
Terminal Wire Assy.
And Ferrite Core
(with one loop)
1-500-082-11
1-900-806-83
11P Conn. Assy.
1-900-808-01
10P Conn. Assy.
CLAMP-ON
Ferrite Bead
1-500-386-11
or 1-500-586-11
w/ NO Loop
on AC Cord
1-769-837-13
Tuner
NOTE: IF THE WIRE DRESSING IS NOT DONE PROPERLY, IT MAY CAUSE DISTORTION
CHASSIS ASSEMBLY
U-BRACKET WIRE DRESSING
