Sony TRINITRON KV-34DRC430 - Side View

KV-34DRC430/36DRC430
15
KV-34DRC430/36DRC430

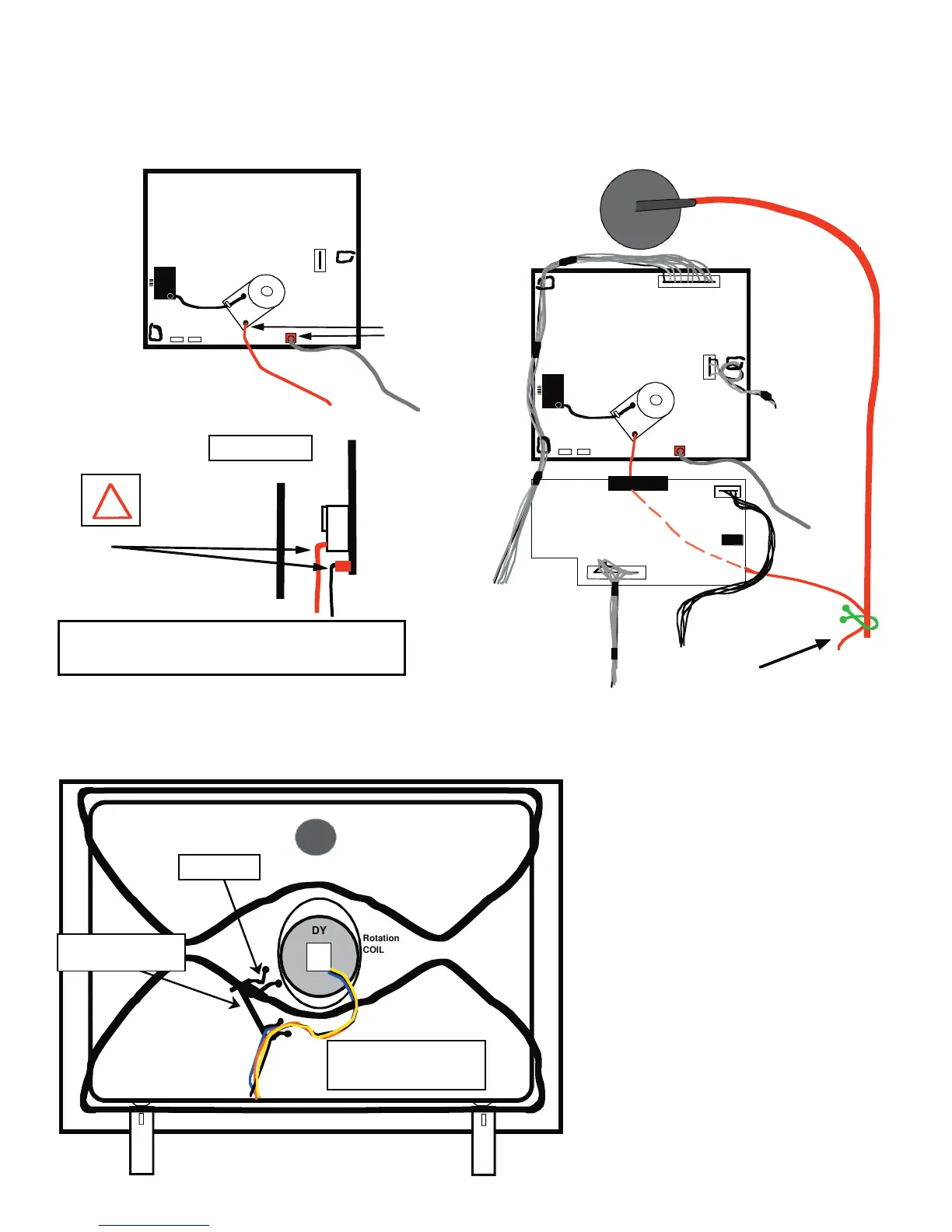

G2 & FOCUS LEAD WIRE DRESSING
CAUTION POINT
Dress
wires in
Clamp on
U-Bracket
CN9003
ECG
[CH]
CLP9002
CN9109
G2
CN9004
ECG
CLP9003
FOCUS
LEAD
BEFORE Installing CH-Board to CRT Neck
PUSH down G2 Lead AND Focus Lead. The wires
must NOT touch B-side of WY-Board!
Push Wire Down
HERE
SIDE VIEW
[CH]
[WY]
CRT SOCKET
B-Side
Push Wire Down
HERE.
Dress wires so
they do NOT
touch B-Side of
WX-Board!
!
FOCUS Lead
G2 Lead
CN9001
RGB
CN9002
200V
HV-Lead Spacer
See CRT dress
diagram for
details. Number
of
spacers vary by
model.
CN9003
ECG
[CH]
CLP9001
CLP9002
CN9100
CN9101
(Rot. Coil)
CN9109
G2
TO [D]
CN5003
3 wire - 4P
CN9102
5mm
Purse
Lock
Focus Lead
Clip BOTH
Anode &
Focus Leads
TO [BY]
CN 2805
11P
HV-Lead Spacer
CN9004
ECG
CLP9003
G2
TO FBT
TO [BY]
CN 2803
6P
TO [D]
CN 5509
12P
[WY]
TO [DL]
CN 5808
4P
[CH] /[WY] /[HV]
DY LEAD DRESSING
DY
Rotation
COIL
DGC Purselock
P/N: 4-081-411-02
ATTACH DY LEADS to DGC
Purselock
4-081-411-02
NOTE: Do not apply a LOOP on the
leadstotakeupslack.
The leads can be slack ABOVE the
purselock.
