Sony TRINITRON KV-34DRC430 - Section 6: Exploded Views; 6-1.Chassis

96
KV-34DRC430/36DRC430
KV-34DRC430/36DRC430
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION
1
1
21
3
2
7
5
8
10
6
22
23
24
20
17
15
18
4
9
16
19
14
12
11
13
25

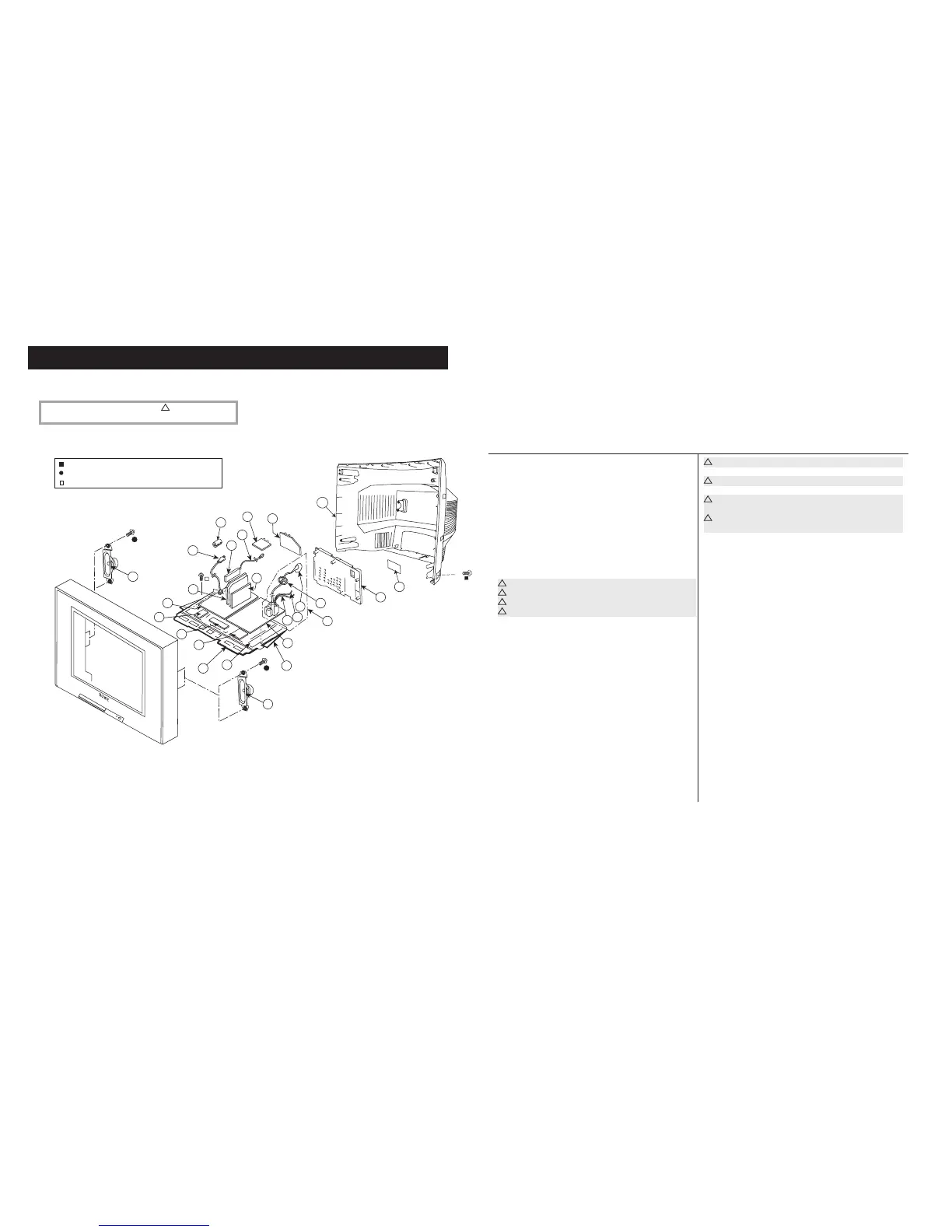

SECTION 6: EXPLODED VIEWS
1 1-825-840-12 LOUDSPEAKER
* 2 4-102-133-21 BOARD, BOTTOM
* 3 A-1101-770-A DZ BOARD, COMPLETE
(KV-34DRC430/36DRC430 L. SOUTH)
The high-voltage leads associated with the FBT on
this DZ Board are not included and must be ordered
separately (SEE 5-7).
* 3 A-1302-936-A DZ BOARD, COMPLETE
(KV-34DRC430/36DRC430 L. NORTH)
The high-voltage leads associated with the FBT on
this DZ Board are not included and must be ordered
separately (SEE 5-7).
!
4 1-453-464-11 FBT ASSY, NX-6200//X4J4 [5-7]
!
5 1-900-808-42 WIRE ASSY, G2
!
6 1-900-805-19 WIRE ASSY, FOCUS HV
!
7 1-251-715-22 CAP ASSY, HIGH-VOLTAGE
8 4-084-918-01 HOLDER, HV CABLE
* 9 4-102-135-11 BRACKET, U
10 4-102-764-01 LABEL, TERMINAL
* 11 A-1302-938-A UY BOARD, COMPLETE
* 12 A-1302-939-A P BOARD, COMPLETE
* 12 A-1085-903-A PA BOARD, COMPLETE
The P and PA Boards are interchangeable.
Either board can be used as a replacement.
!
13 1-829-088-11 CABLE, P-F
* 14 A-1302-940-A BY BOARD, COMPLETE
!
15 8-598-593-70 TUNER, FSS BTF-WA421
16 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
!
17 1-769-837-11 CORD, POWER(WITH NOISE FILTER)
(KV-34DRC430/36DRC430 L. NORTH)
!
17 1-769-796-62 CORD, POWER (WITH CONNECTOR)
(KV-34DRC430/36DRC430 L. SOUTH)
* 18 A-1302-937-A MY BOARD, COMPLETE
* 19 A-1073-921-A AY BOARD, COMPLETE
(KV-34DRC430 L. NORTH)
19 A-1101-768-A AY BOARD, COMPLETE
(KV-36DRC430 L. SOUTH)
19 A-1101-772-A AY BOARD, COMPLETE
(KV-34DRC430 L. SOUTH)
* 19 A-1302-941-A AY BOARD, COMPLETE
(KV-36DRC430 L. NORTH)
* 20 A-1302-942-A HBY BOARD, COMPLETE
* 21 A-140
5-292-A HAX BOARD, MOUNTED
* 22 A-1302-943-A HCX BOARD, COMPLETE
* 23 4-102-134-05 BRACKET, H
* 24 4-095-271-21 BRACKET, MAIN
25 4-102-132-01 COVER, REAR
(KV-34DRC430)
25 4-102-123-02 COVER, REAR
(KV-36DRC430)
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
4-384-096-01 SCREW (4X1
6), TAPPING, +P
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
[ASSEMBLY INCLUDES]
6-1.CHASSIS
