Sony TRINITRON KV-34DRC430 - Picture Tube

97
KV-34DRC430/36DRC430
KV-34DRC430/36DRC430
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION
30 X-2055-684-1 BEZNET ASSY [31-37]
(KV-34DRC430)
30 X-2055-685-1 BEZNET ASSY [31-37]
(KV-36DRC430)
31 3-704-179-02 EMBLEM, SONY (NO.9)
32 4-102-127-11 DOOR, CONTROL
33 4-102-768-11 LABEL, FRONT CONTROL
34 4-102-129-11 BUTTON, POWER
35 4-10
2-128-01 GUIDE, LED
36 4-093-611-12 BUTTON, MULTI
37 4-102-131-11 DAMPER, DOOR
!
38 1-451-498-41 COIL, NA ROTATION
(KV-34DRC430)
!
38 1-451-498-31 COIL, NA ROTATION
(KV-36DRC430)
39 4-102-136-01 SUPPORTER, CRT
!
40 8-735-244-05 CRT 34RSN(SDP)(FOR N/AMERICA) (A80LPD50X)
(KV-34DRC430 L. NORTH)
!
40 8-735-245-05 CRT 34RSN(SDP)(FOR EQUATOR) (A80LPD50X)
(KV-34DRC430 L. SOUTH)
!
40 8-735-223-05 CRT 36RVN2 (W86LPH010X)
(KV-36DRC430 L. NORTH)
!
40 8-735-224-05 CRT 36RVN2(DDP)(FOR EQUATOR)(W86LPH010X)
(KV-36DRC430 L. SOUTH)
!
41 8-451-512-12 DY Y34RSC-M
(KV-34DRC430)
!
41 8-451-498-23 DY Y36RVC-M2
(KV-36DRC430)
!
42 8-453-023-21 NECK ASSEMBLY NA328-M2
* 43 A-1415-602-A WY (VAR) BOARD, MOUNTED
44 4-098-344-01 TUBE, DGC(B)
(KV-34DRC430)
!
45 1-419-163-21 COIL, DEGAUSSING
(KV-34DRC430 L. SOUTH)
!
45 1-428-988-31 DEGAUSSING COIL (31 INCH 120V)
(KV-34DRC430 L. NORTH)
!
45 1-416-837-21 COIL, DEGAUSSING
(KV-36DRC430)
* 46 A-1400-550-A CH BOARD, MOUNTED
47 4-053-005-01 SPACER, DY
* 48 4-102-284-01 CLIP, DGC
49 4-051-734-21 PIECE B(120), CONV. CORRECT
(KV-36DRC430)
50 1-452-885-11 MAGNET, LANDING
(KV-34DRC430)
50 1-452-032-00 MAGNET, DISC
(KV-36DRC430)
51 4-083
-414-01 PIECE A(110), CONV CORRECT
52 4-081-170-01 PLATE, TLH CORRECTION
(KV-34DRC430)
52 2-163-920-01 PLATE, TLH CORRECTION
(KV-36DRC430)
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
45
44
51
50
46
39
42
47
48
49
52
38
43
40
41
37
36
35
31
32
30
33
34

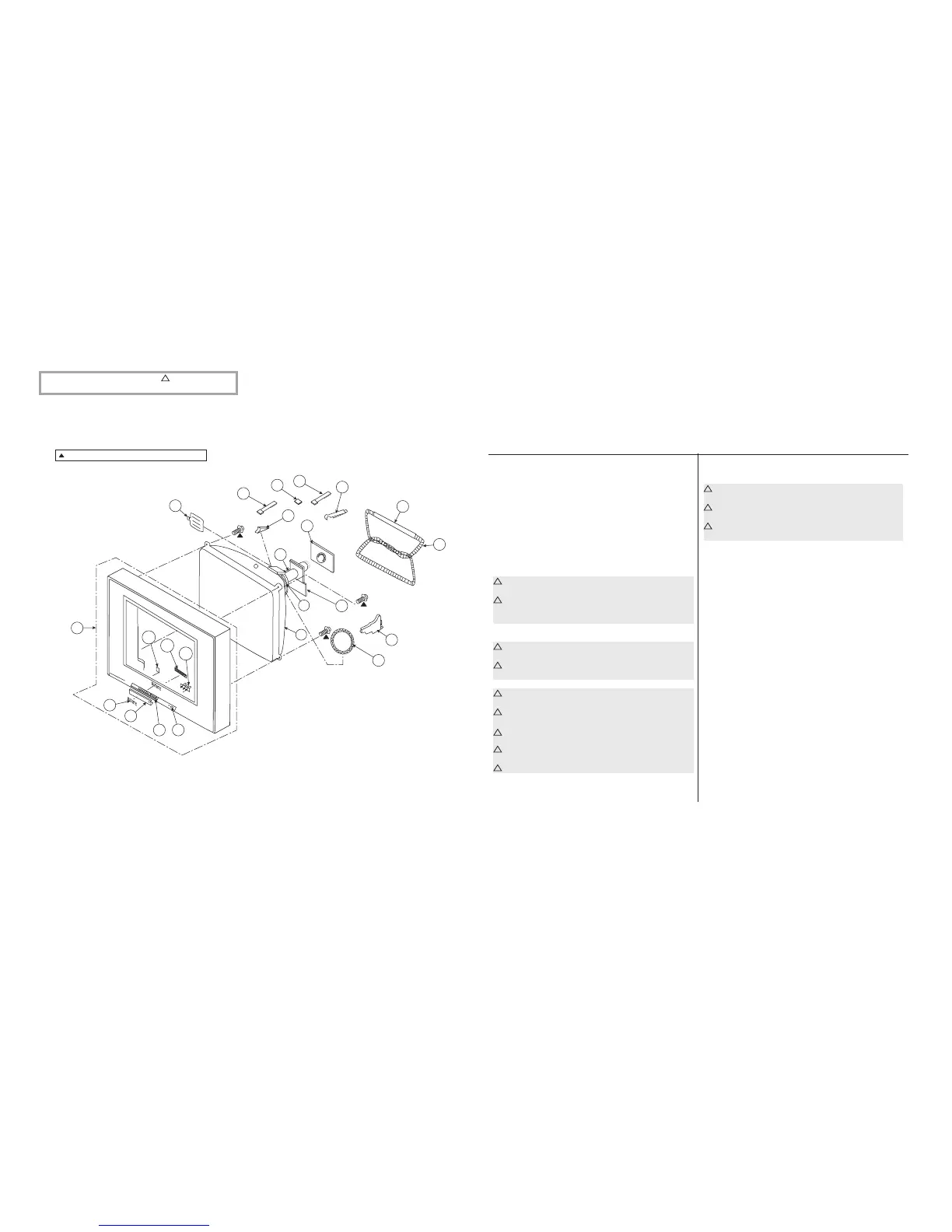

6-2. PICTURE TUBE
[ASSEMBLY INCLUDES]
