KV-34DRC430/36DRC430
16
KV-34DRC430/36DRC430

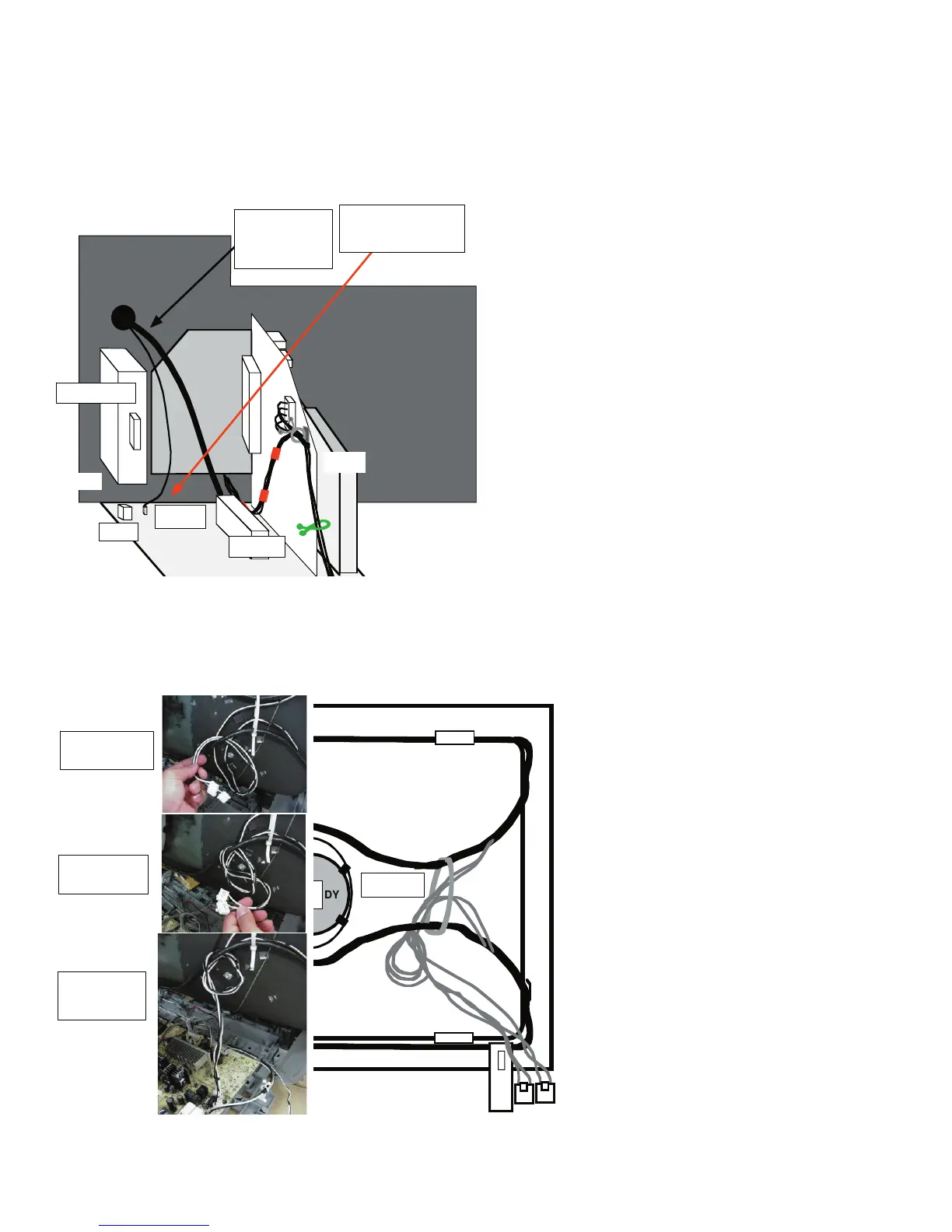

F-PIN CABLE WIRE DRESSING
[UY]
[MY]
[BY]
CN501
TERMINAL
[AY]
CN 503
AC Conn.
P-Shield
1-829-088-11
P-F Cable
w/Gnd. Lead Terminal
(NOT dressed with
other connectors)
CAUTION:
MAKE SURE Ground Lead
Terminal is attached to
CN501 (not CN528)!!
Tuner
DY
Cable Tie
4-041-041-02
STEP1:
Make a loop in leads
and route loop BEHIND
The DGC Coil.
STEP 2:
Thread both connector
housings through the
loop in lead wires.
STEP 3:
Plug in connector
housings into the
[AY] Board using the
loop to take up slack.
DGC LEAD WIRE DRESSING
