KV-34DRC430/36DRC430
KV-34DRC430/36DRC430

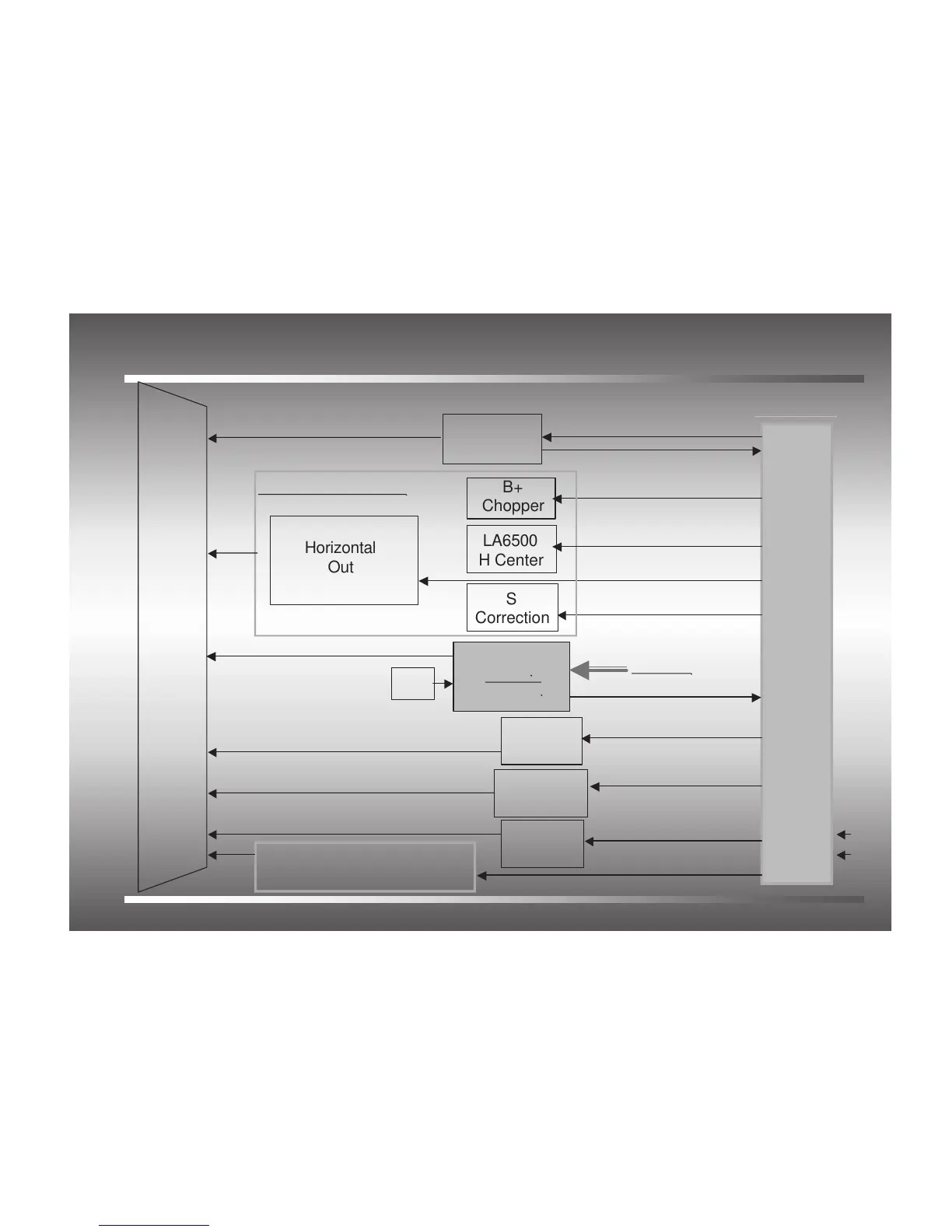

BLOCK DIAGRAMS (2 OF 3)
Deflection & HV System Block
CXA2170Q
ABL_IN
ABL S
VSAW0
EW_DRV
EW DRV
MP_PARA
M PIN
HC_PARA
H CENT
H_DRV
VPROT
H PROT
VDRV+/VDRV-
HP_IN
Vcc 9V
Vcc 5V
STV9379
Vout
LA6500
V pin out
B+
Chopper
HV Reg
DF
S
Correction
LA6500
H Center
Horizontal
Out
LA6500 x2
DQP
VPARA1/VPARA2
AC RECT
H DRV/HPROT/HP IN
VDRV-/VSIN
CXA8070AP/ STK390-910
DC
V DEF
H DEF
HV/FV
DY-v
DY-h
CRT
CY
Neck-
Assy
VSAW1
LA6500
N/S out
Rotation
coil
Horizontal deflection block
