Sony UP-D897 - Page 38

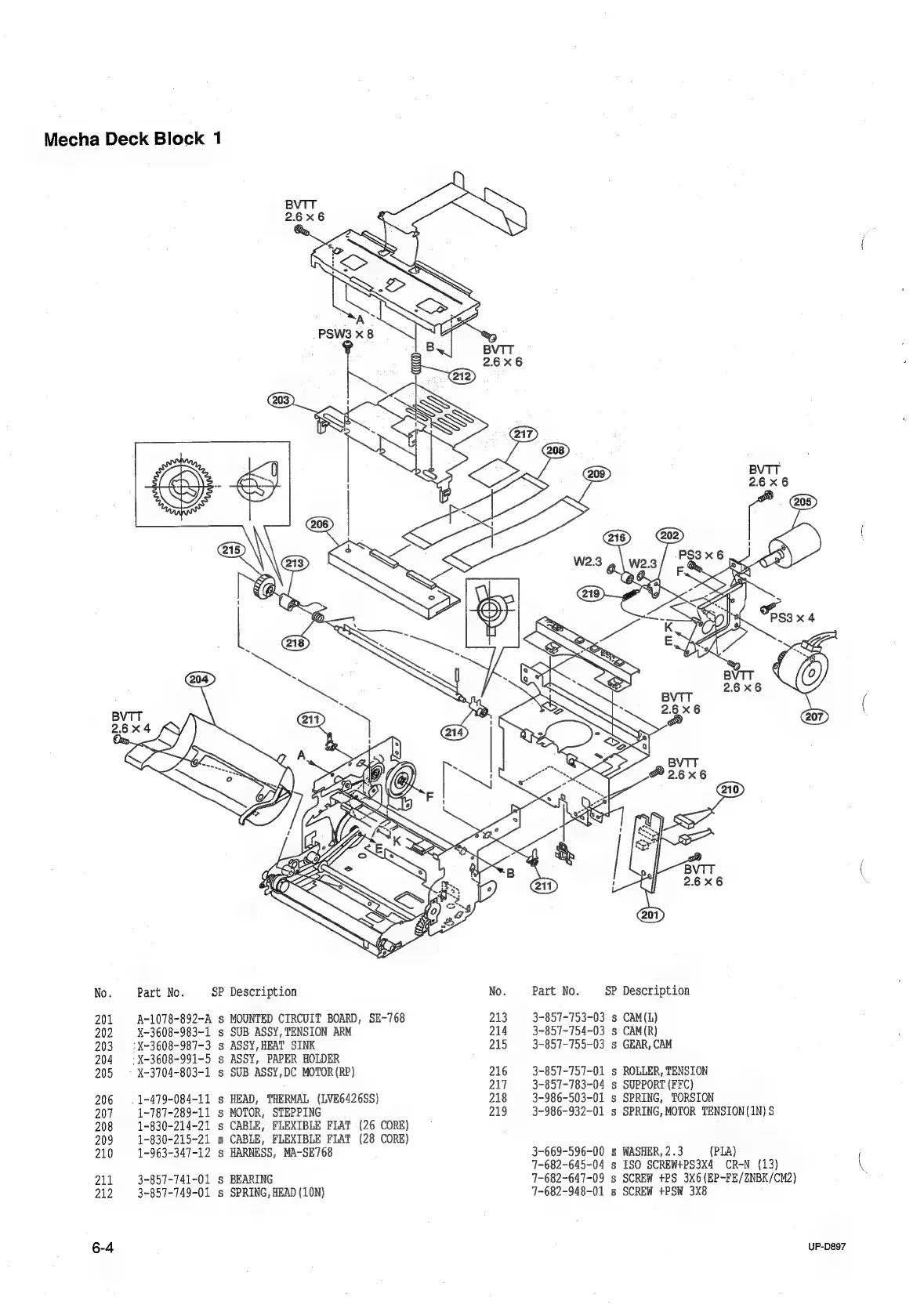

Mecha Deck Block 1
No. Part No. SP
201 A-1078-892-A s
202 = X-3608-983-1 s
203 = X-3608-987-3 s
204 = X-3608-991-5 s
205 = X-3704-803-1 s
206 = 1-479-084-11 s
207 1-787-289-11 s
208 1-830-214-21 5
209 1-830-215-21 s
210 1-963-347-12 5
211 3-857-741-01 s
212 3-857-749-01 s
6-4
Description
MOUNTED CIRCUIT BOARD, SE-768
SUB ASSY, TENSION ARM
ASSY, HEAT SINK
ASSY, PAPER HOLDER
SUB ASSY,DC MOTOR (RP)
HEAD, THERMAL (LVE64268S)
MOTOR, STEPPING
CABLE, FLEXIBLE FLAT (26 CORE)
CABLE, FLEXIBLE FLAT (28 CORE)
HARNESS, MA-SE768
BEARING
SPRING, HEAD (10N)
No.
213
214
215
216
217
218
219
Part No.
3-857-753-03
3-857-754-03
3-857-755-03
3-857-757-01
3-857-783-04
3-986-503-01
3-986-932-01
3-669-596-00
7-682-645-04
7-682-647-09
7-682-948-01
s
s
s
8
s
s
§
5
s
s
s
SP Description
CAM (L)
CAM (R)
GEAR, CAM
ROLLER, TENSION
SUPPORT (FFC)
SPRING, TORSION
SPRING, MOTOR TENSION (1N)S
WASHER, 2.3 (PLA)
ISO SCREW+PS3X4 CR-N (13)
SCREW +PS$ 3X6(EP-FE/ZNBK/CM2)
SCREW +PSW 3X8
UP-D897
