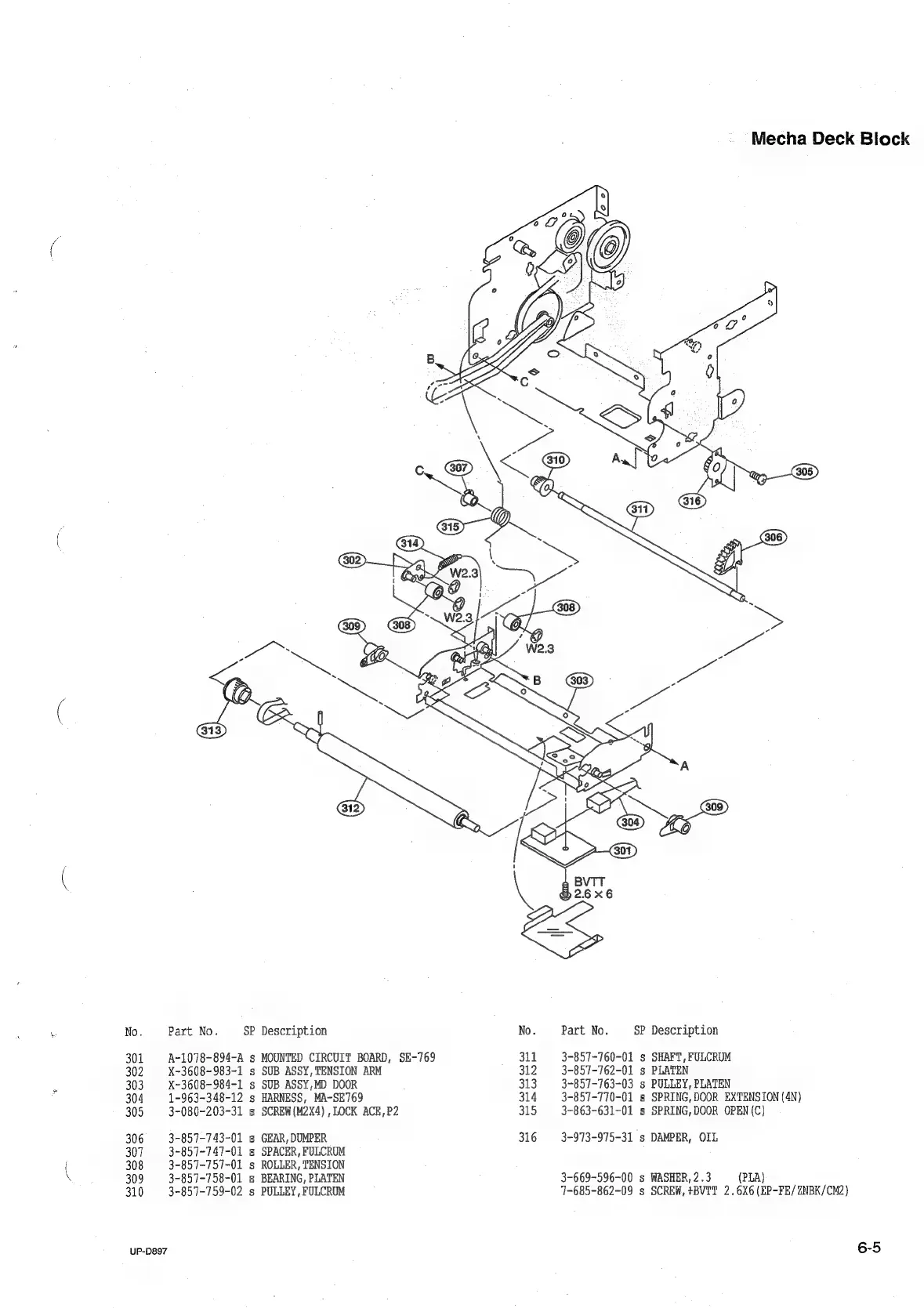

Mecha Deck Block
No. Part No. SP Description No. Part No. SP Description
301 A-1078-894-A s MOUNTED CIRCUIT BOARD, SE-769 311 3-857-760-01 s SHAFT, FULCRUM
302 X-3608~983-1 s SUB ASSY, TENSION ARM 312 3-857-762-01 s PLATEN
303 X-3608-984-1 s SUB ASSY,MD DOOR 313 3-857-763-03 s PULLEY, PLATEN
304 1-963-348-12 s HARNESS, MA-SE769 314 3-857-770-01 s SPRING,DOOR EXTENSION (4N)
305 3-080-203-31 s SCREW(M2X4), LOCK ACE,P2 315 3-863-631-01 s SPRING, DOOR OPEN (C)
306 3-857-743-01 s GEAR, DUMPER 316 3-973-975-31 s DAMPER, OIL
307 3-857-747-01 s SPACER, FULCRUM
( 308 3-857-757-01 s ROLLER, TENSION
309 3-857-758-01 s BEARING, PLATEN 3-669-596-00 s WASHER, 2.3 (PLA)
310 3-857-759-02 s PULLEY, FULCRUM 7-685-862-09 s SCREW, +BVIT 2. 6X6 (EP-FE/ZNBK/CM2)
6-5
UP-D897
