Sony UP-D897 - Page 40

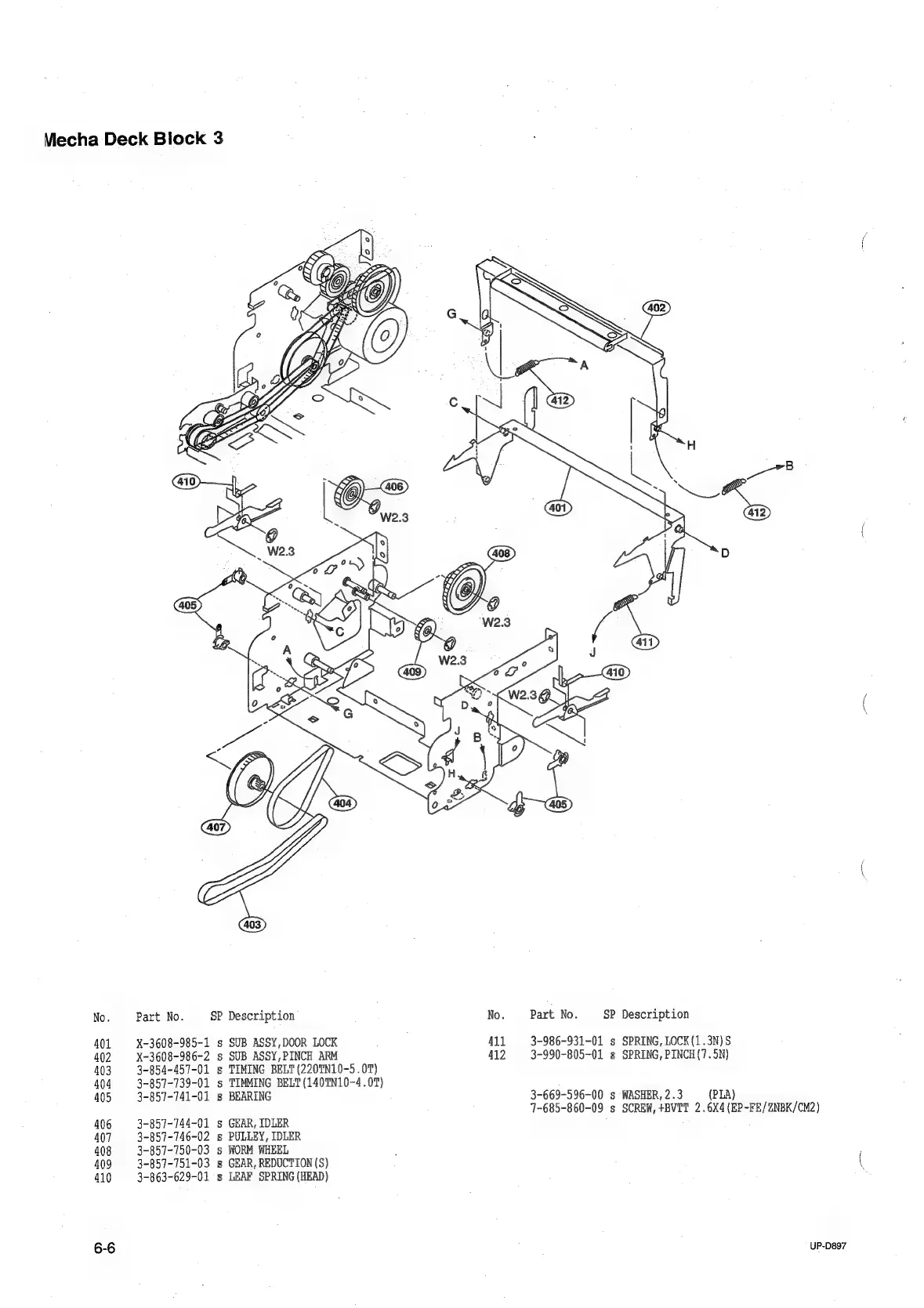

VMiecha Deck Block 3
No.
Part
No.
SP
Description
No.
Part
No.
SP
Description
401
X-3608-985-1
s
SUB
ASSY,DOOR
LOCK
411
3-986-931-01
s
SPRING,
LOCK(1.3N)S
402
X-3608-986-2
s
SUB
ASSY,PINCH
ARM
412
3-990-805-01
s
SPRING,
PINCH(7.5N)
403 3-854-457-01 s TIMING BELT(220IN10-5.0T)
404 3-857-739-01 s TIMMING BELT (140TN10-4.0T)
405
3-857-741-01
s
BEARING
3-669-596-00
s
WASHER,
2.3
(PLA)
7-685-860-09 s SCREW, +BVTT 2. 6X4 (EP-FE/ZNBK/CM2)
406 3-857-744-01 s GEAR, IDLER
407 3-857-746-02 s PULLEY, IDLER
408 3-857-750-03 s WORM WHEEL
409 3-857-751-03 s GEAR, REDUCTION (S)
410 3-863-629-01 s LEAF SPRING (HEAD)
6-6
UP-D897
