Sony VPL-CH355 - Connector Panel

5
Location and Function of Controls
Overview
VPL-CH375/CH355
VPL-CH370/CH350
Input (pages 9, 11)
a INPUT A
Video: RGB/YPBPR input connector
(RGB/YPBPR)
Audio: Audio input connector (AUDIO)
b INPUT B
Video: HDMI input connector (HDMI)
Audio: HDMI input connector (HDMI)
c INPUT C
Video: HDMI input connector (HDMI)
Audio: HDMI input connector (HDMI)
d INPUT D
HDBaseT connector
*
/LAN connector
(page 37)
Use a straight CAT5e or CAT6 shielded
LAN cable (not supplied).
* VPL-CH375/CH355 only
e S VIDEO (S VIDEO IN)
Video: S video input connector
(S VIDEO IN)
Audio: Audio input connector
(L (MONO) AUDIO/R)

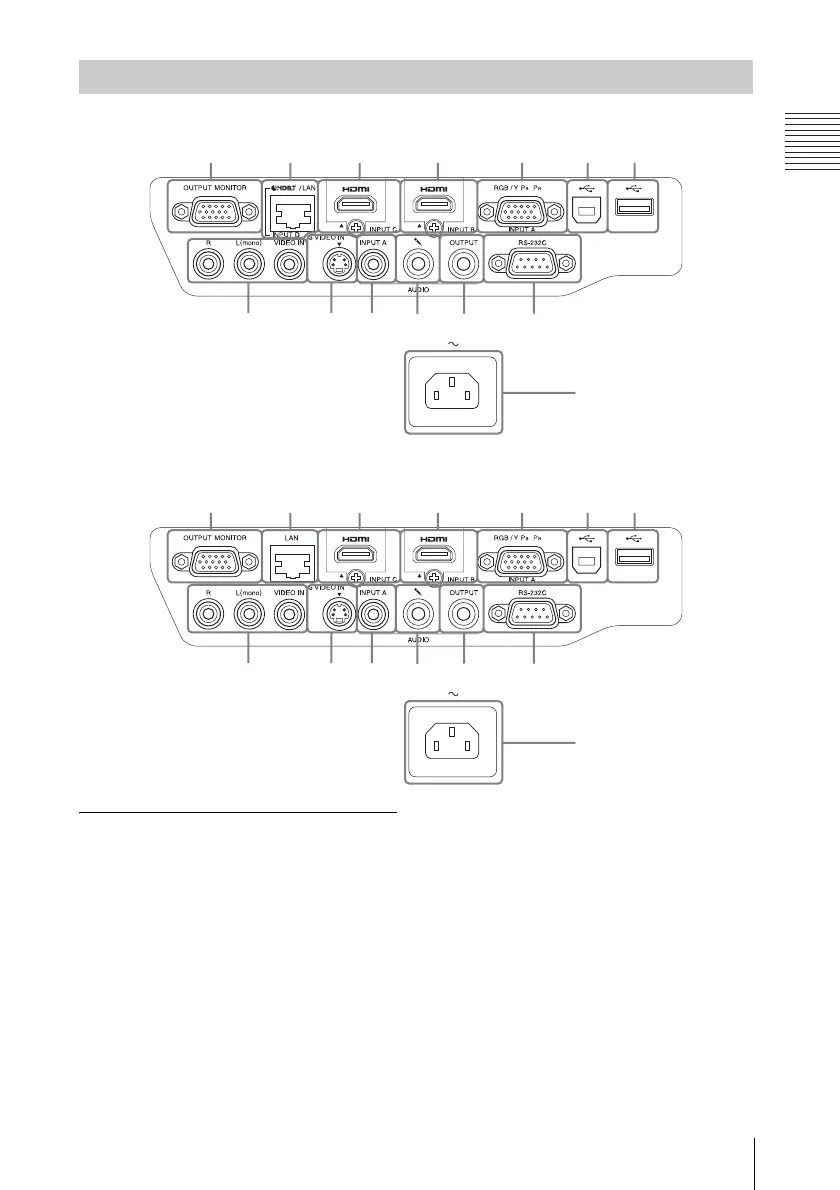

Connector Panel
1
1
2
9
q;3
qs
qa
6
57
8
47
1
1
2
9
q;3
qs
qa
6
57
8
47
