Sony VPL-FX52 - Lamp Power Supply Removal; Lens Assy Removal (VPL-FX52)

1-7
VPL-FX52/FX52L

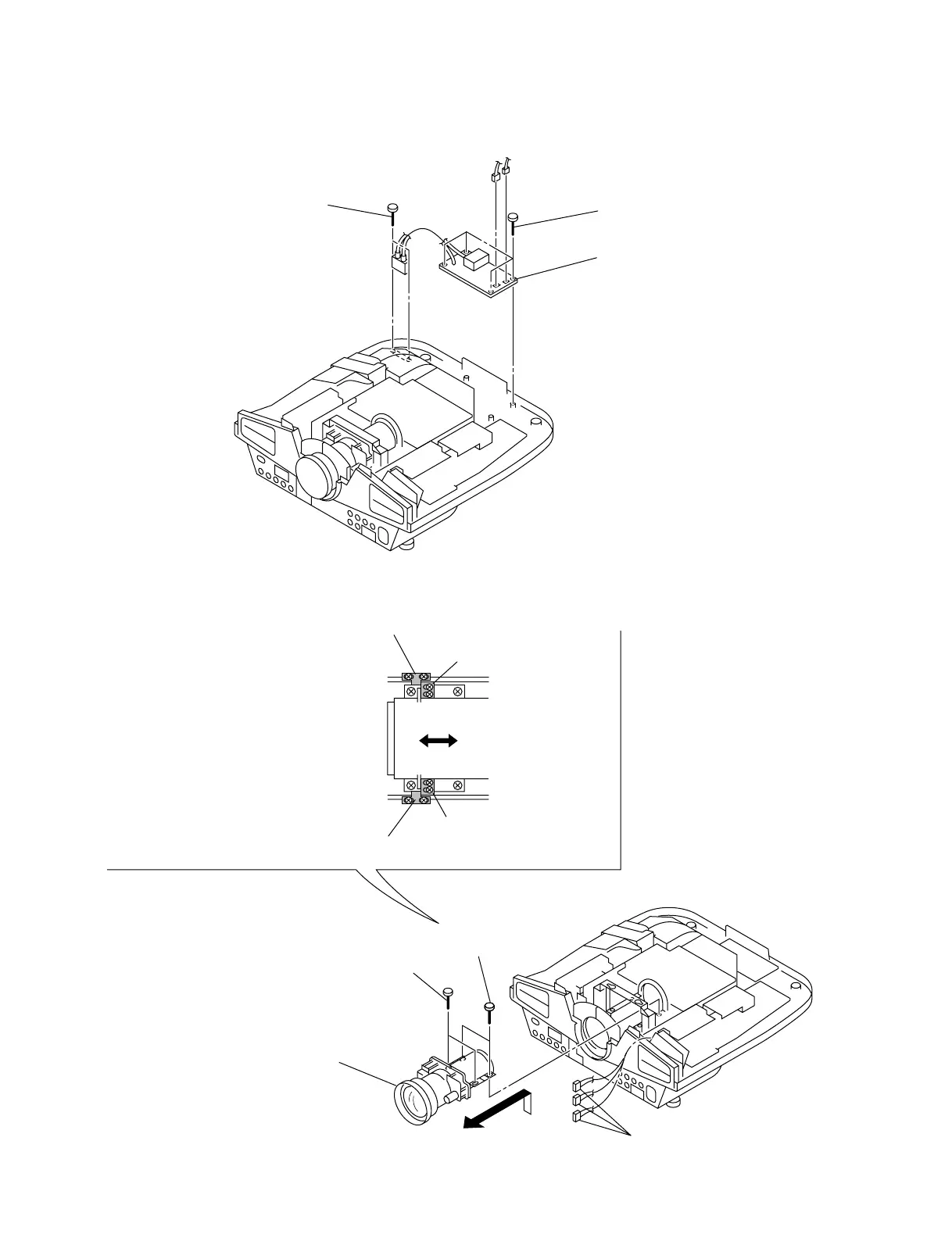

1-2-9. Lamp Power Supply Removal
1 Two screws
(+PSW 3x8)
2 Four screws
(+PSW 3x8)
3 Lamp power supply
CN2
CN1
1-2-10. Lens Assy Removal (VPL-FX52)
Stopper (Chassis side)
Stopper (Chassis side)
Stopper (Lens side)
Stopper (Lens side)
3 Remove the lens assy
in the direction of the arrow.
* When replace a Lens Assy,
secure the lens assy to where it
stops at the stopper of chassis.
Three connectors
* Unnecessary when remove lens assy
other than the standard lens assy.
1 Two screws
(+B 2x4)
2 Two screws
(+PSW 4x12)
