Sony VPL-FX52 - Front Panel Assy Removal; Connector Block Assy Removal

1-9
VPL-FX52/FX52L

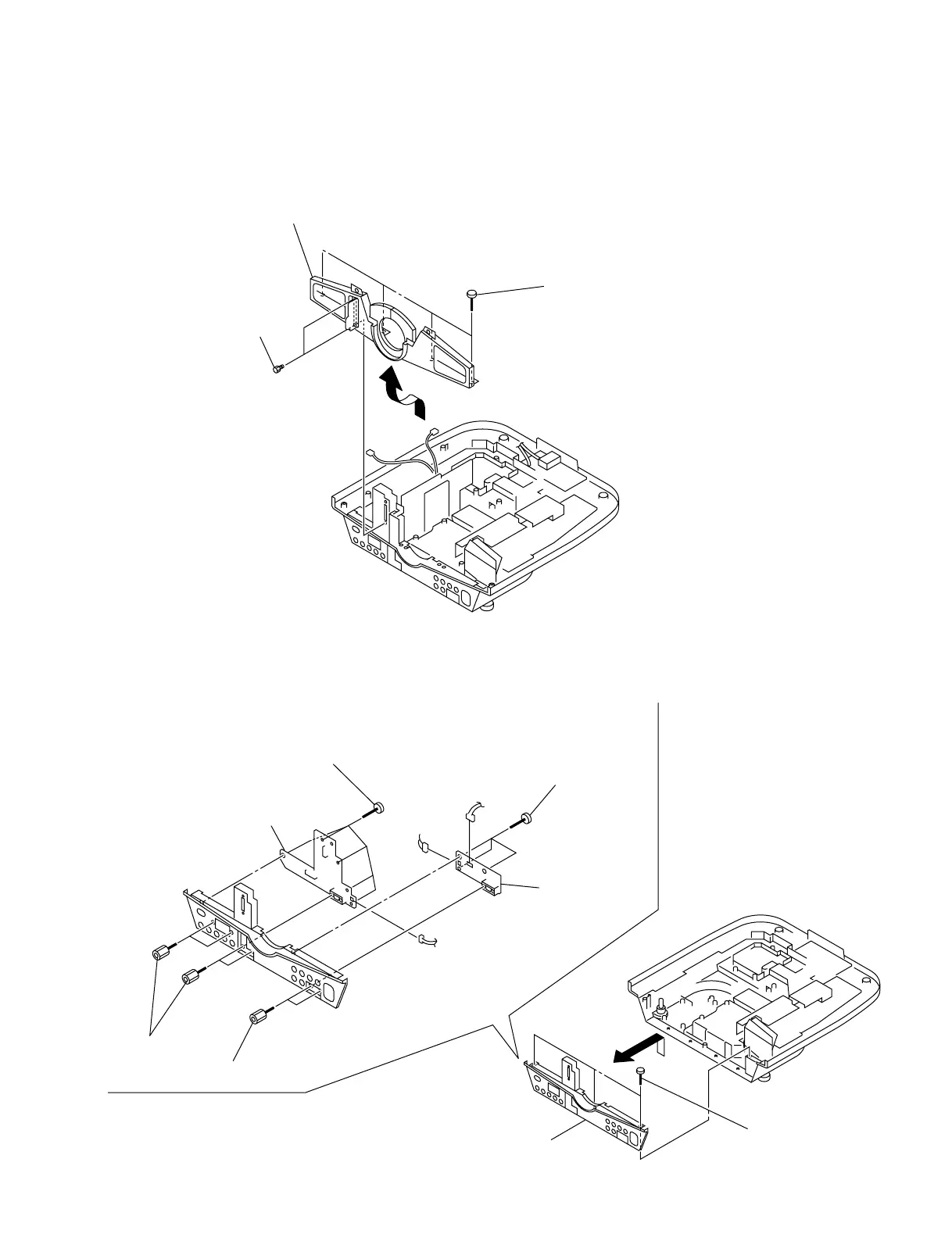

1-2-13. Front Panel Assy Removal
* To remove the front panel assy, remove the C board, lamp duct assy and optical block (G) assy before-
hand.
1 Four s crews
(+PSW 4x10)
2 Two
s crews
3 Remove the front panel assy
in the direction of the arrow.
1-2-14. Connector Block Assy Removal
* To remove the connector block, remove the C board, lamp duct assy, QC board, B block assy, optical
block (G) assy and front panel assy beforehand.
CN2000
CN2101
CN2100
7 Five
s crews
(+PSW 3x8)
4 Three
s crews
(+PSW 3x8)
1 Three
s crews
(+PSW 4x10)
2 Remove the connector block assy
in the direction of the arrow.
3 Two
s crews
6 Four
s crews
8 QA board
5 QB board
