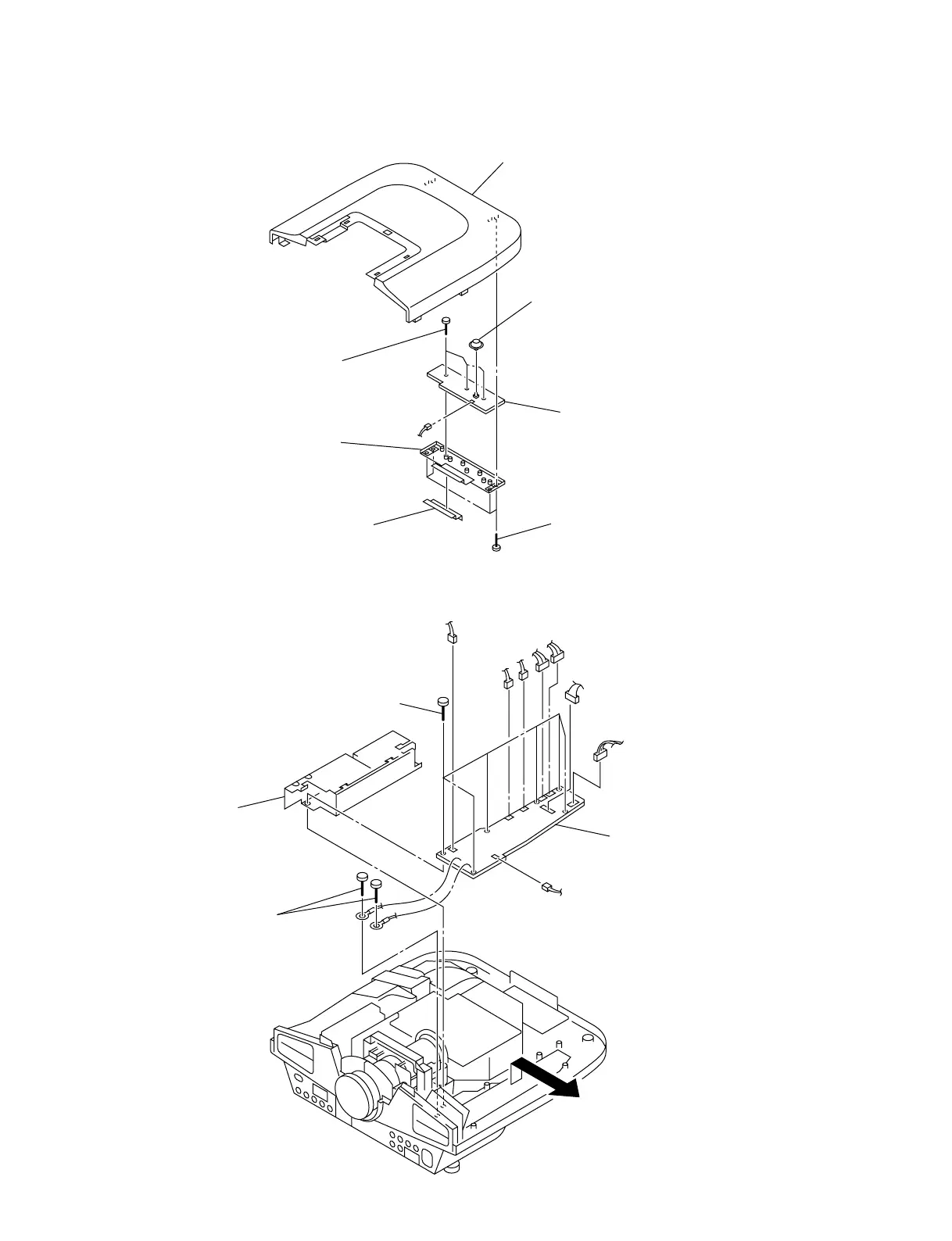

1-2-2. H Board Removal
1 Four screws
(+BVTP 4x10)
5 Three screws
(+PSW 3x8)
7 H board
6 Cursor key
4 Insulating sheet (H)
2Top cabinet assy
3 H holder
CN2201
1-2-3. GA Board Removal
1 Two screws
(+PS 4x12)
2 Six screws
(+PSW 3x8)
4 Remove the GA board
in the direction of the arrow.
3 Insulating sheet GA
CN303
CN101
CN105
CN103
GND
GND
CN301
CN202
CN201
CN302
