Sony VPL-FX52 - Optical Block (G) Assy and S Board Removal; DC Fan Removal

1-8
VPL-FX52/FX52L

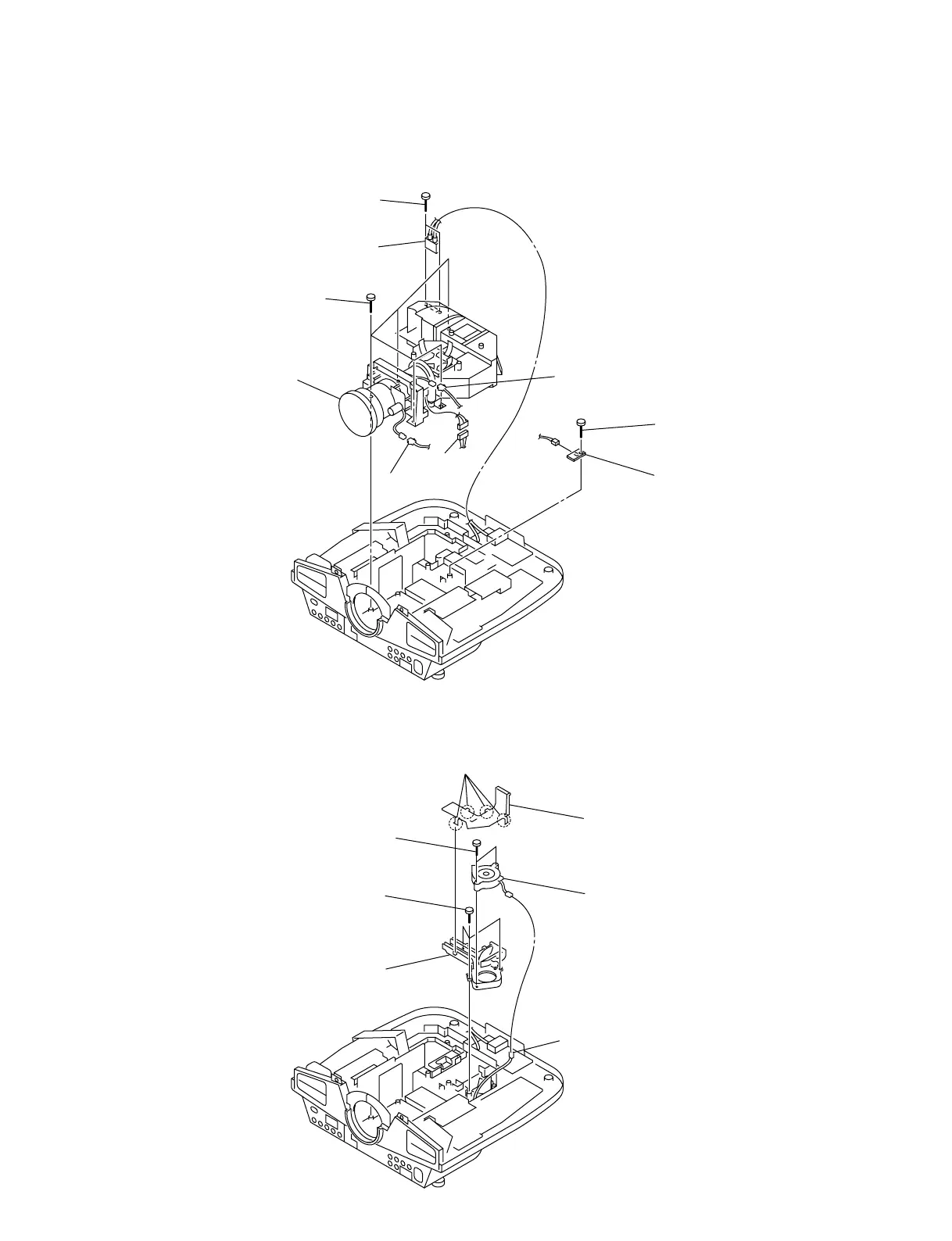

1-2-12. DC Fan Removal
* To remove the DC fan, remove the C board beforehand.
2 Lamp duct (bottom)
1 Three
s crews
(+PSW 4x10)
5 DC fan
Connector (3P)
3 Lamp duct (top)
4 Two
s crews
(+PSW 3x25)
Four claws
1-2-11. Optical Block (G) Assy and S Board Removal
* To remove the optical block (G) assy and S board, remove the C board beforehand.
CN2400
Connector (4P)
Connector (4P)
3
Five s crews
(+PS 4x12)
1
Two s crews
(+PWH 3x8)
2
Connector (2P)
5
Screw
(+PSW 4x10)
4
Optical block (G) assy
6
S board
Connector
