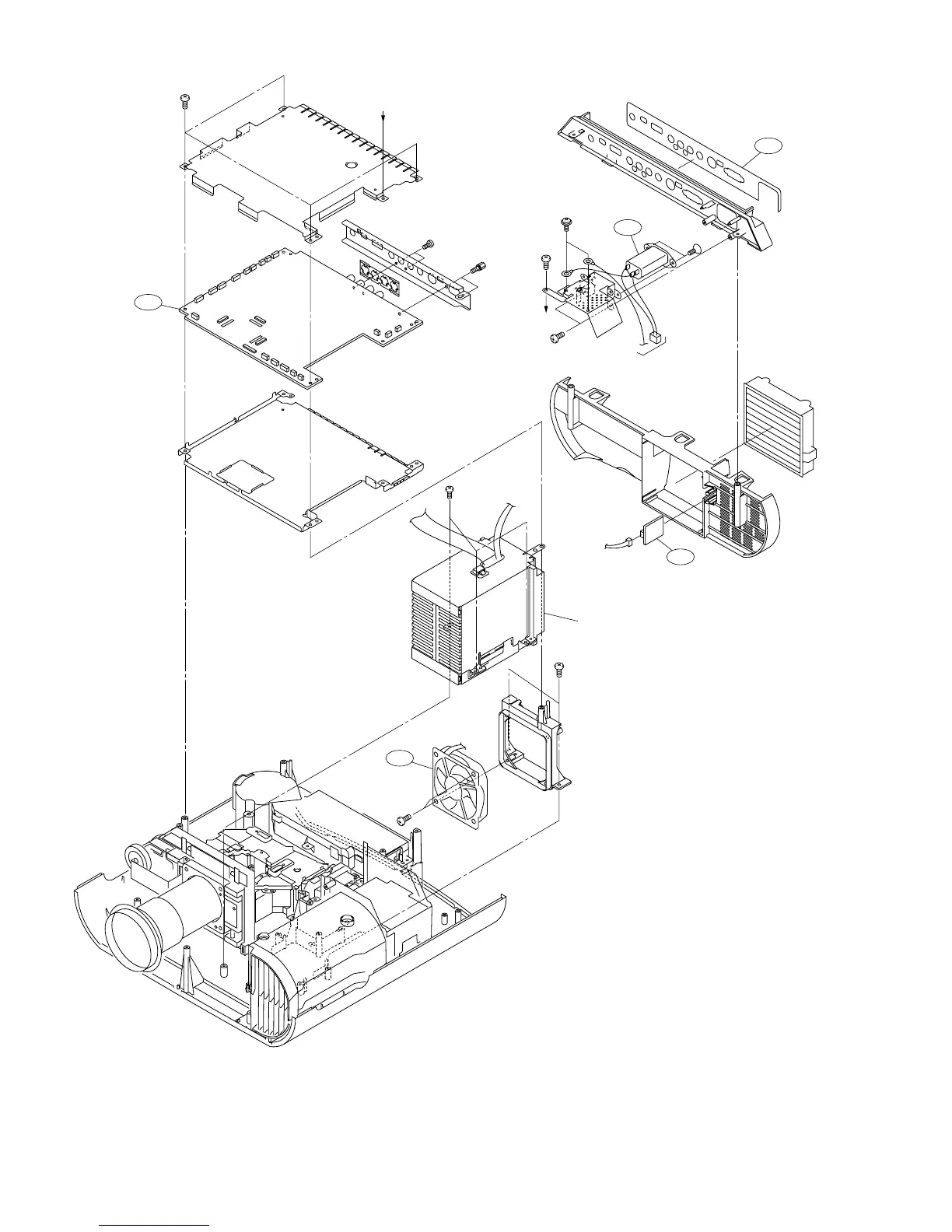

VPL-HS60/HS51A
Main Board and Rear Block
BTP
3 x 12
BTP
3 x 12
A
BTP
3 x 12
BTP
3 x 12
BTP
3 x 12
PSW
4 x 8
K3 x 6
BTP
3 x 12
TO
F MOUNT
BTP
3 x 12
A
204
202
203
201
See GA and GB Block
205
No. Part No. SP Description
201 A-1057-965-A s MOUNTED CIRCUIT BOARD, V
202 A-1164-049-A s MOUNTED CIRCUIT BOARD, C
(FOR VPL-HS60)
A-1164-045-A s MOUNTED CIRCUIT BOARD, C
(FOR VPL-HS51A)
203
!
1-787-404-11 s DC FAN
204
!
1-818-098-21 s INLET, AC (WITH NOISE FILTER)
205
2-188-260-01 s LABEL, CONNECTOR
7-682-247-09 s SCREW +K 3X6
7-682-961-01 s SCREW +PSW 4X8
7-685-548-19 s SCREW +BTP 3X12 TYPE2 N-S
