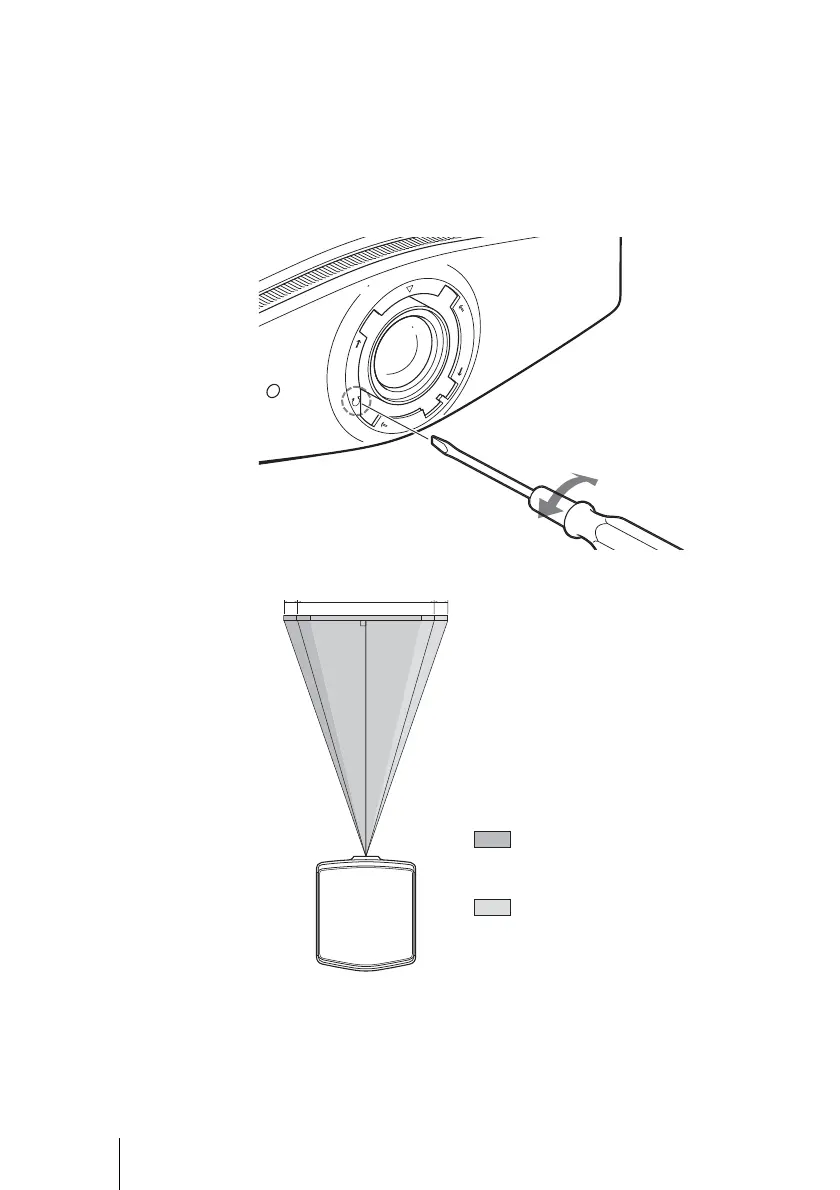

Making Fine Adjustments to the Horizontal Picture Position
3 Insert a flat-blade screwdriver into the lens adjustment groove
located at the left bottom (when the projector projects the
image when placed on the floor, on a desk, etc.), and turn it in
the direction in which you want to move the lens.
If you turn it to the left, the lens moves to the left, and if you turn it to the
right, the lens moves to the right. (The range of movement is
approximately ± 1mm.)
Top view
Picture position when
moving the picture the
maximum distance to the
left.
Picture position when
moving the picture the
maximum distance to the
right.
1H
