6

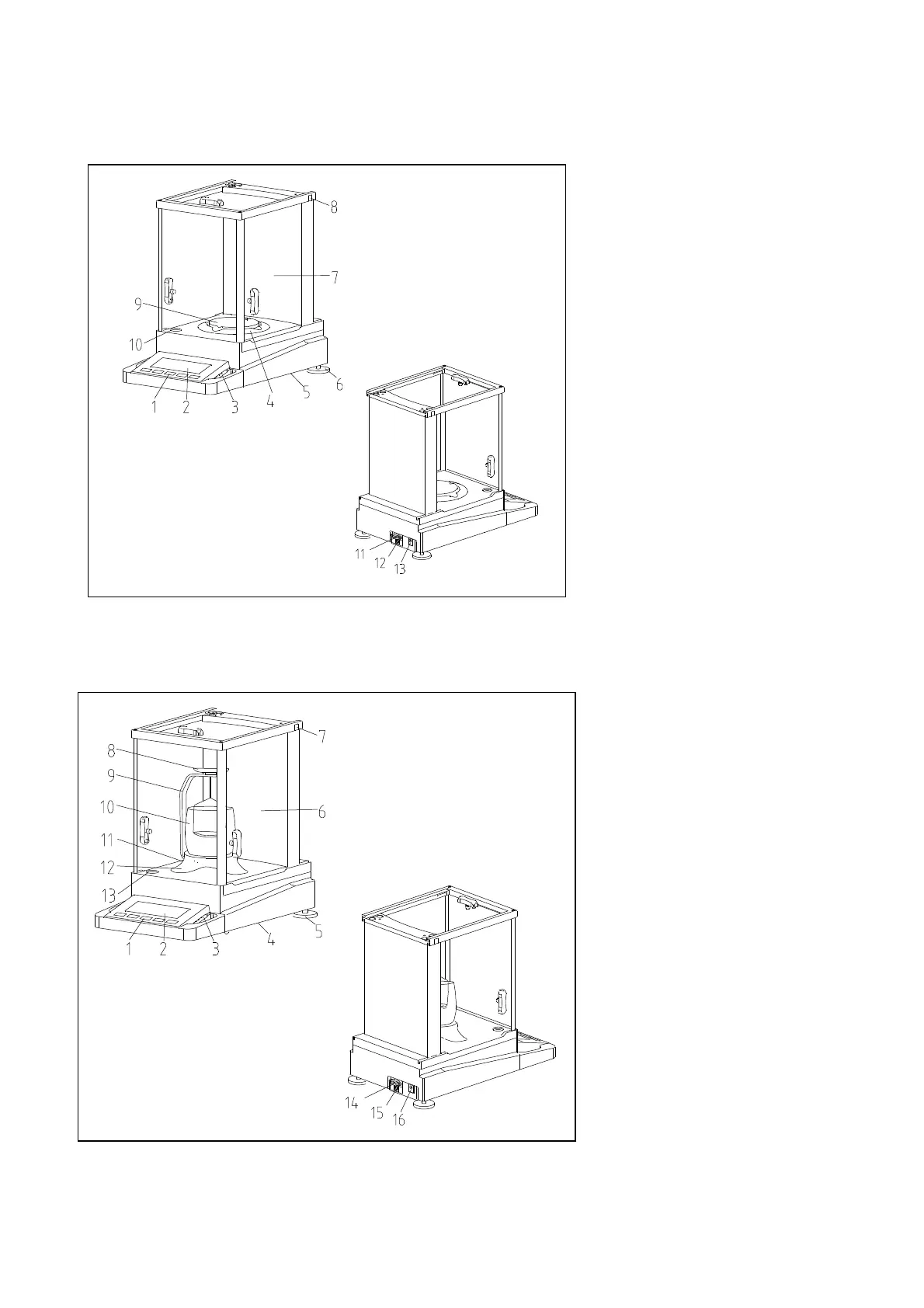

1.2 Balance Structure
1)Operating Key
2)Display Screen
3)Unlocked pen for glass doors
4)Windbreak
5)Handing ring for hook
(In the bottom of balance)
6)Leveling foot
7)Windproof cover
8)Lock for glass
9)Weighting pan
10)Level indicator
11)RS232 port
12)USB port(optional)
13)Power adapter socket
1) Operating Key
2) Display Screen
3) Unlocked pen for glass doors
4) Handing ring for hook
(In the bottom of balance)
5) Leveling foot
6) Windproof cover
7) Lock for glass
8) Testing Shelf
9) C-Style Bracket
10) Arched glass
11) Shelve table
12) Fixed Ring
13) Level indicator
14) RS232 port
15) USB port(optional)
16) Power adapter socket
