Advanced Operation Sorensen DLM-E Series
48 Operation Manual
CAUTION!
To prevent possible damage to the supply, do not connect the remote
program return line of the negative supply to the common connection.

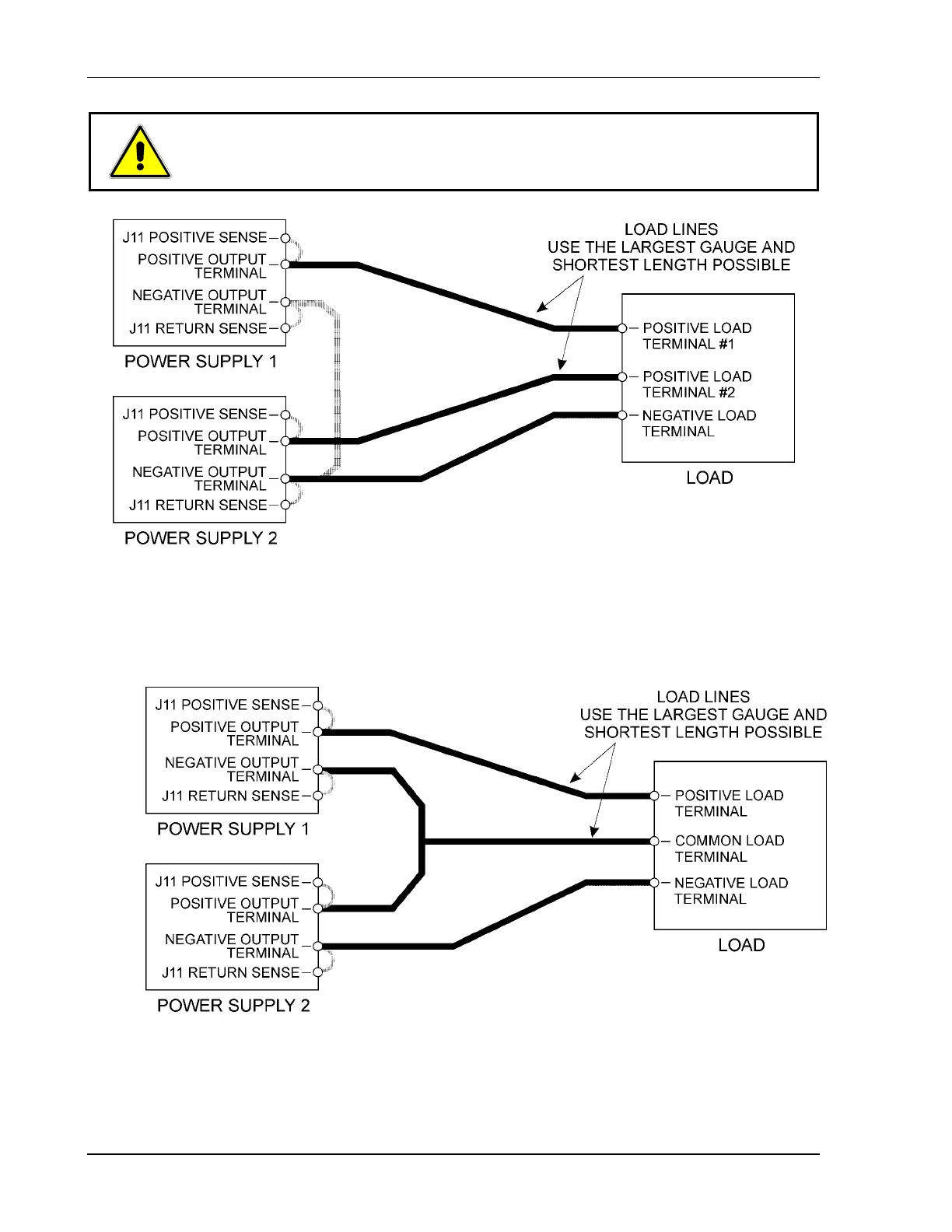

Figure 4–18. Split Supply Operation of Multiple Supplies (Two Positive Voltages)
(Local sense lines shown are from J11 to busbars)
Figure 4–19. Split Supply Operation of Multiple Supplies (Positive–Negative Supply)
(Local sense lines shown are from J11 to busbars)
