16, 22, 22MTK User Manual

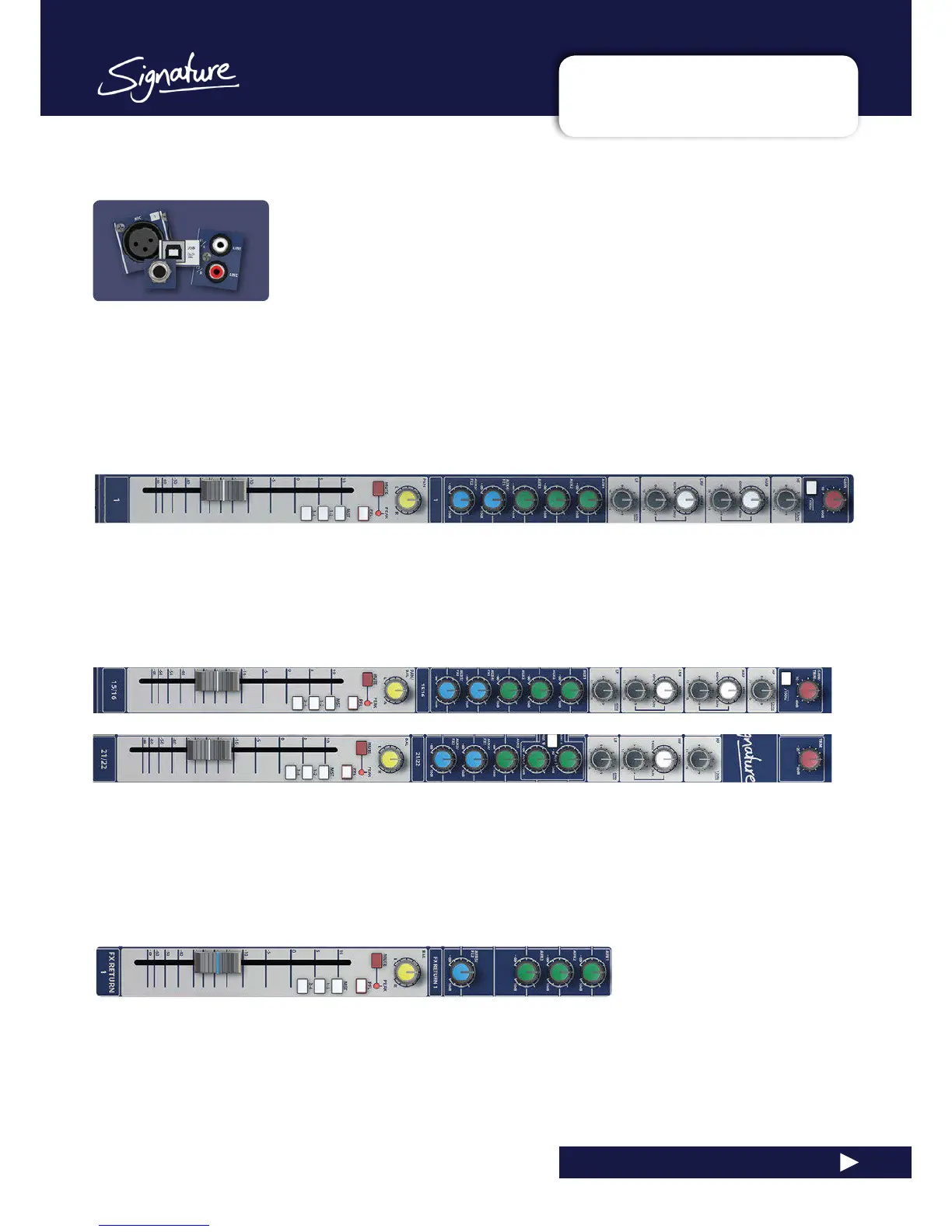

2.2: PARTS OF THE CONSOLE

GETTING STARTED > PARTS OF THE CONSOLE

2.2: Parts Of The Console

Inputs & Outputs

The Signature console features a variety of physical inputs and outputs for getting audio in and out of the

console: XLR, Jack, and Phono for analogue audio I/O, and USB for digital audio. Refer to Section 3.0

for more detail, and to section 7.0 for detailed information on USB functionality. Note - USB functionality

forMTK(Signature22MTK)andnon-MTK(Signature16and22)aredifferent;bothtypesaredetailedin

section 7.0.

Mono Input Channels

Mono input channels control the levels, routing, and EQ on single channel audio inputs. All mono input

channelshavebothmicrophoneandline-levelcapability.Inaddition,specicchannelsfeatureHi-Zinputs

for high impedance sources such as guitar pick-ups. Refer to Sections 4.2 and 5.2 for more detail.

Stereo Input Channels

Signature 16, 22, and 22MTK consoles have two types of stereo inputs. One offers the option of a mono

microphone/linelevelinputbyusingeithertheXLRorLeft/MonoJackInputaswellasstereoJackinputs;

the other (highest-numbered stereo channel) offers stereo line level phono inputs and is the ‘Playback

Channel’;theMasterchannel’sINTERVALMUTEfunctionmutesallchannelsexcepttheStereoplayback

channel. Refer to Sections 4.3 and 5.3 for more detail.

FX Return

A Signature FX Return channel takes it’s input from the output of the internal Lexicon FX processor. It is a

stereo input channel with aux sends but without input level control or EQ. Refer to Sections 4.4 and 5.4 for

more detail.
