2.2: PARTS OF THE CONSOLE
GETTING STARTED > PARTS OF THE CONSOLE

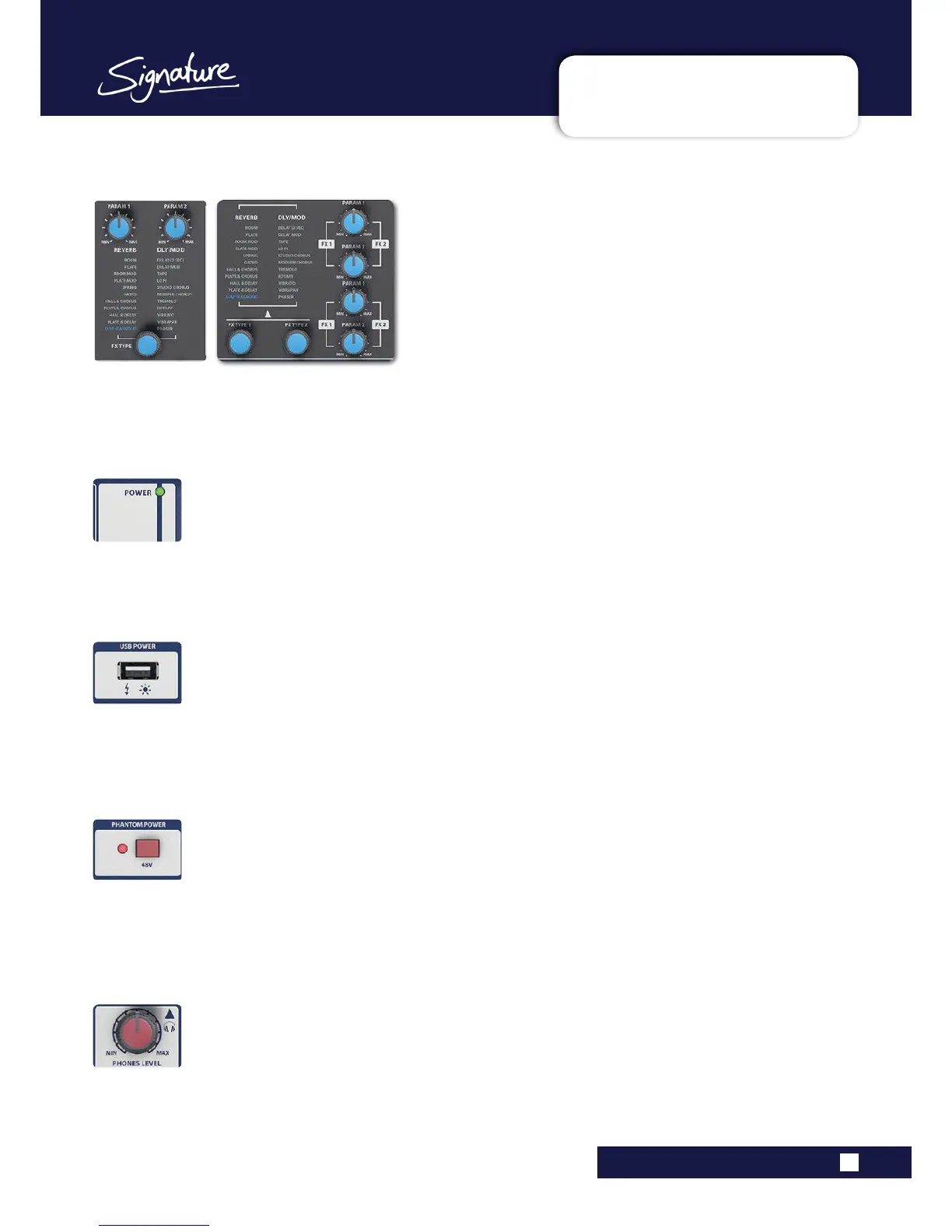

2.2: Parts Of The Console
Lexicon FX Control
Signature 16 has a single internal Lexicon FX processor and send/return bus for adding FX such as reverb,
delay, Chorus, Rotary, LoFi, Tape emulation, and more. Signature 22 and 22MTK have dual processors and
send/return paths. Each Effect has two adjustable parameters. Refer to section 8.0 for more detail.
Power Indicator
Lights Green when console is powered. Use the power switch on the rear underside of the console to
poweritonandoff.Itisgoodpractisetoturntheoutputleveldownrstincasethisaffectsanyconnected
speakers.
USB Power Socket
For attaching powered/chargeable USB peripherals such as a USB-powered LED lamp, or a mobile phone.
Not for data. There is a 500mA current limit on this connection.
Global Phantom Power Switch
Applies 48V phantom power to the console microphone inputs so you can use Condenser/Capacitor
microphones, active DI boxes, and so on. See section 5.1 for more detail.
Headphones Level Control
Level control for the monitoring output - either the Master Stereo Output, or the Solo Bus. See section 6.0
for more detail.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
