BMK-8 U / BMK-12 W
20

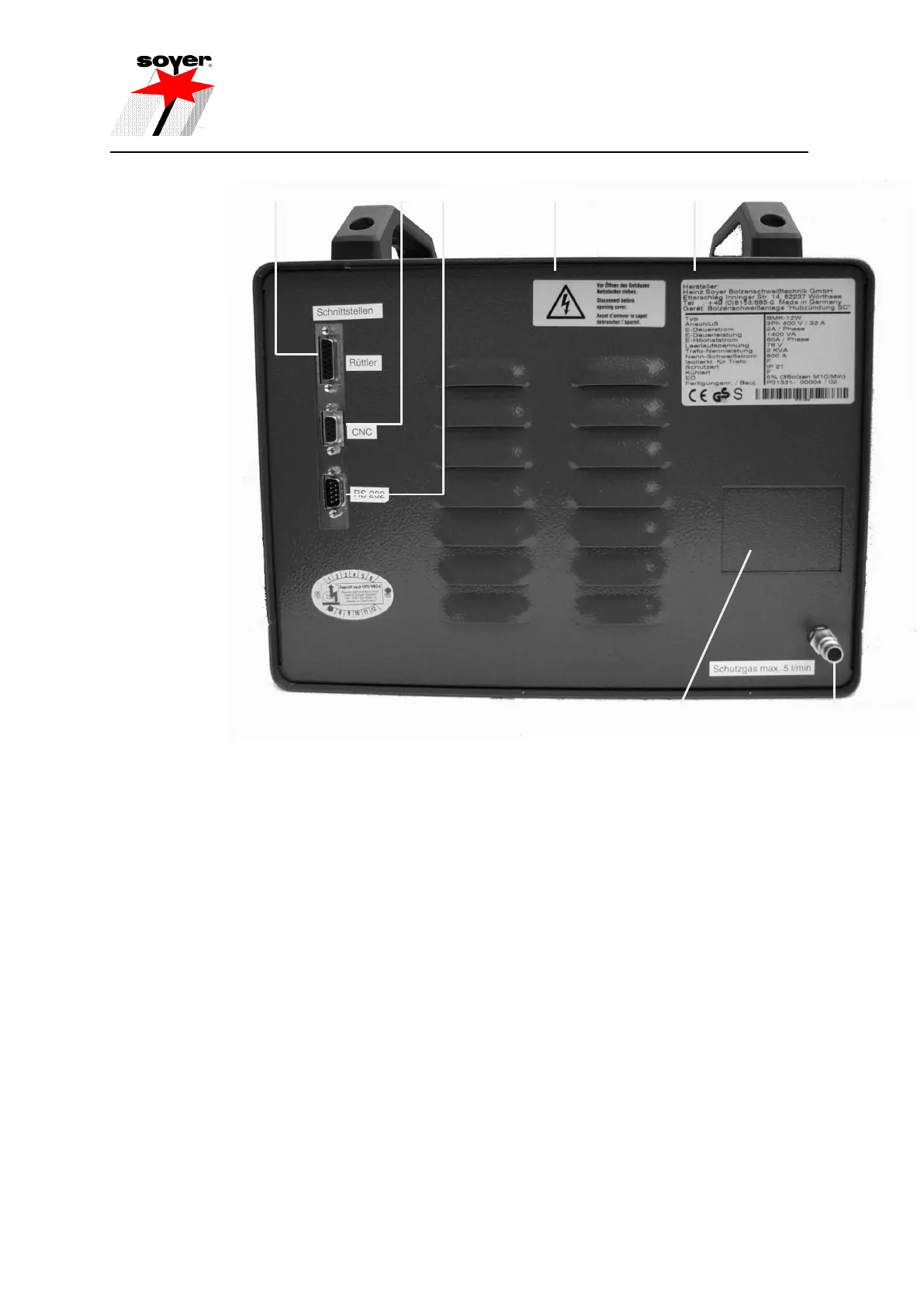

Rear view of BMK-8U / BMK-12 W
14 15-pole connecting socket / feeder interface (OPTION)
The feeder interface serves to connect the feeder control to the stud welding device.
15 9-pole connecting socket / CNC interface (OPTION)
The CNC interface serves to be connected with an external control system to control the stud
welding process.
16 9-pin connector, interface RS 232 (OPTION)
This interface serves to be connected with an external control system.
17 Danger sign
18 Type plate
19 Shielding gas connector
This connection serves to supply the stud welder with gas by means of a pressure reducer.
The admissible gas flow value ranges between 4 and 5 l/min.
20/21 Compressed-air supply connection (OPTION)
This connection serves to supply the stud welder with compressed air and to connect the
compressed air lines of the feeder control to the stud welder. The admissible supply pressure
amounts to a maximum of 7bar.
