Soyer BMK-8 U - 3 Spare Parts; Wear Parts; Accessories for Inert-Gas-Shielded Arc Welding

Appendix A/REV1 / Adjustment of short-cycle drawn arc welding guns
Appendix A /9

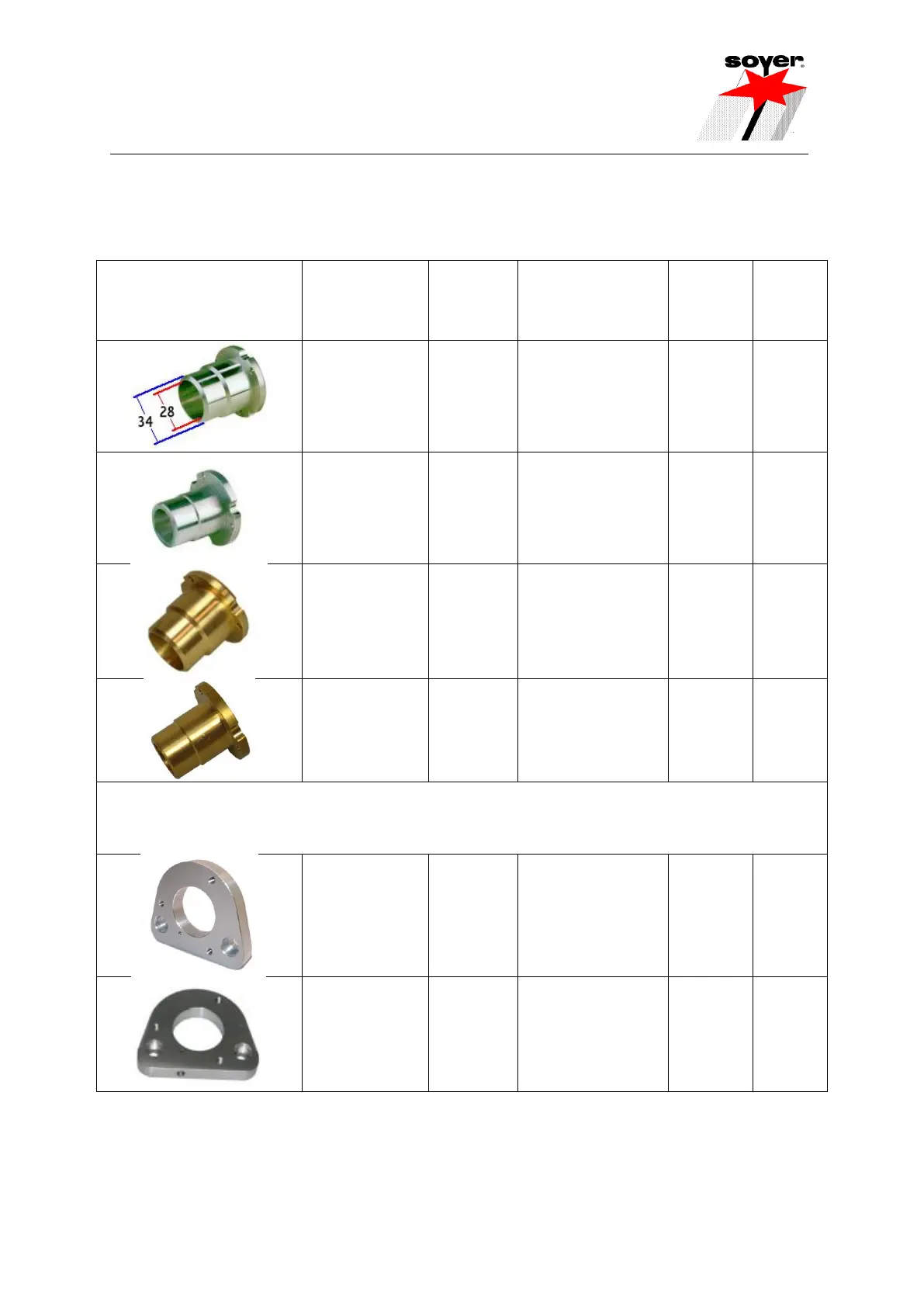

3 Spare parts / Wear parts
3.1 Accessories for inert-gas-shielded arc welding
Abbildung
Illustration
Artikel Nr.
Order code
Menge
Quantity
Bezeichnung
Designation
Gewicht
in kg
Weight
in kg
F01633
1
Schutzgasglocke
SGL-2 Aluminium
SGL-2 gas shroud,
aluminium
0,06
F01631
1
Schutzgasglocke
Aluminium
Gas shroud
aluminium
SGL-1
0,063
F02477
1
Schutzgasglocke
Messing
Gas shroud,
brass
SGL-2
0,183
F02476
1
Schutzgasglocke
Messing
Gas shroud,
brass
SGL-1
0,189
SGL-1: innerer / inside Ø: 22 mm; äußerer / outside Ø: 30 mm
SGL-2: innerer / inside Ø: 28 mm; äußerer / outside Ø: 34 mm
F02329
1
Stativgrundplatte
Support base
plate
SGL-1 Ø22mm
0,054
F01997
1
Stativgrundplatte
Support base
plate
SGL-2 Ø28mm
0,051
