2 Start-up
2.1 Total view

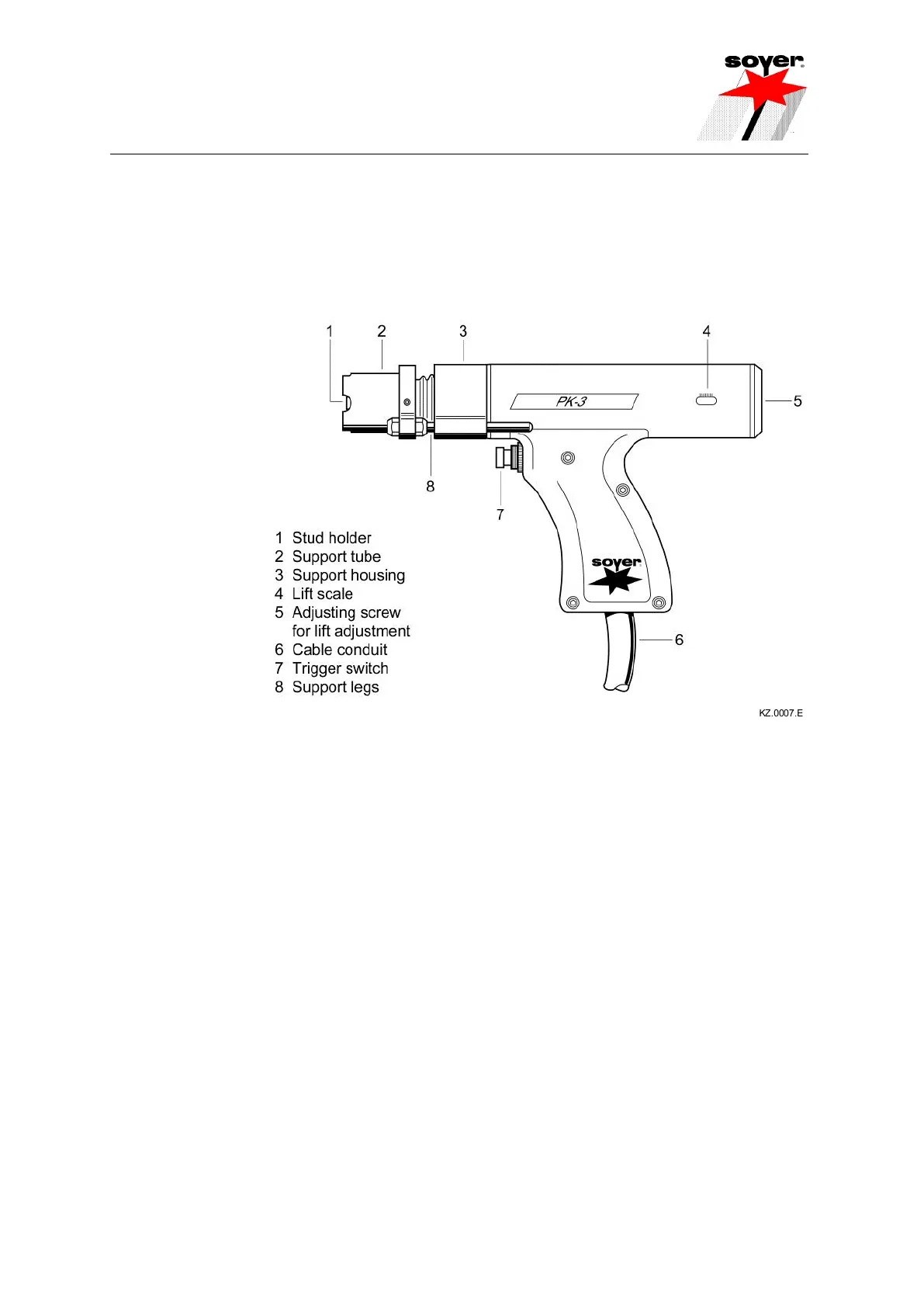

The illustration below shows standard PK-3 stud welding gun for short-cycle drawn arc
operation. A large range of equipment is available.
R
2.2 Connecting stud welding gun to stud welder
Use the gun cable and control cable to connect the stud welding gun to the stud
welder
• Insert connector of stud welding gun’s welding cable into the relevant jack at the stud
welder
• Insert connector of stud welding gun’s control cable into the relevant jack at the stud
welder.
• Insert gas supply connector of stud welding gun into the relevant jack at the stud
welder (only with optional shielding gas equipment).
2.3 Operation
• Connect stud welder to earth
• Adjust stud welding gun as described in Appendix A, Chapter 1
• Connect stud welder to mains supply
• Adjust parameters at stud welder according to welding studs to be used
• For standard operation, insert welding stud into stud holder
• Position stud welding gun on workpiece and press trigger switch
