BMK-8 U / BMK-12 W
19
5 Start-up
5.1 Front and rear view
1 2 3 4 5 6
13 12 11 10 9 8 7

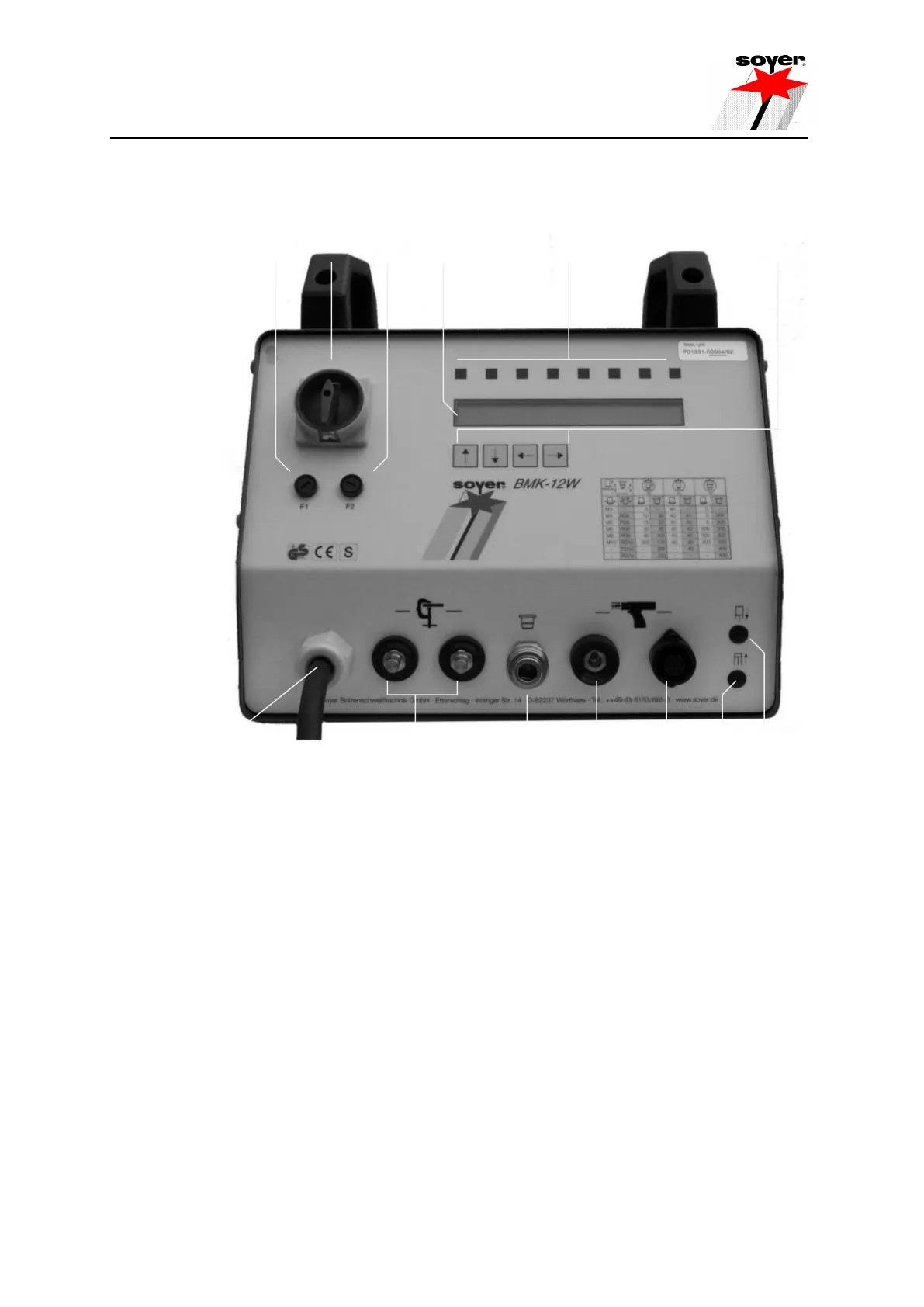

Front view of BMK-8U / BMK-12 W (above illustration of BMK-12W corresponds to BMK-8U)
1 • Fuse element F1
2 • Main switch (switch stud welder on)
3 •Fuse element F2
4 • LCD display
5 • Indicator lamps for function control
6 • Function keys for setting the welding parameters
7 • Air function "forward" (option)
8 • Air function "backward" (option)
Connection for welding guns or heads with automatic stud feed
9 • Control cable connection
10 • Welding cable socket
The control cable connection and the welding cable socket serve to connect the stud welding
guns or heads to the stud welder.
11 • Gas connection socket
Before welding with shielding gas, connect the gas hose of the welding gun or head to the gas
connection socket.
12 • Earth cable connectors
The earth cable connectors serve to connect the earth clamps to the stud welder.
13 • Mains cable
The mains cable is a four-core (3P + PE), highly flexible connecting cable for connecting the
stud welder to the mains supply.
