User manual EXPERT 2K-FA
Pag. 15 of 15 Issue 2 – May 2011

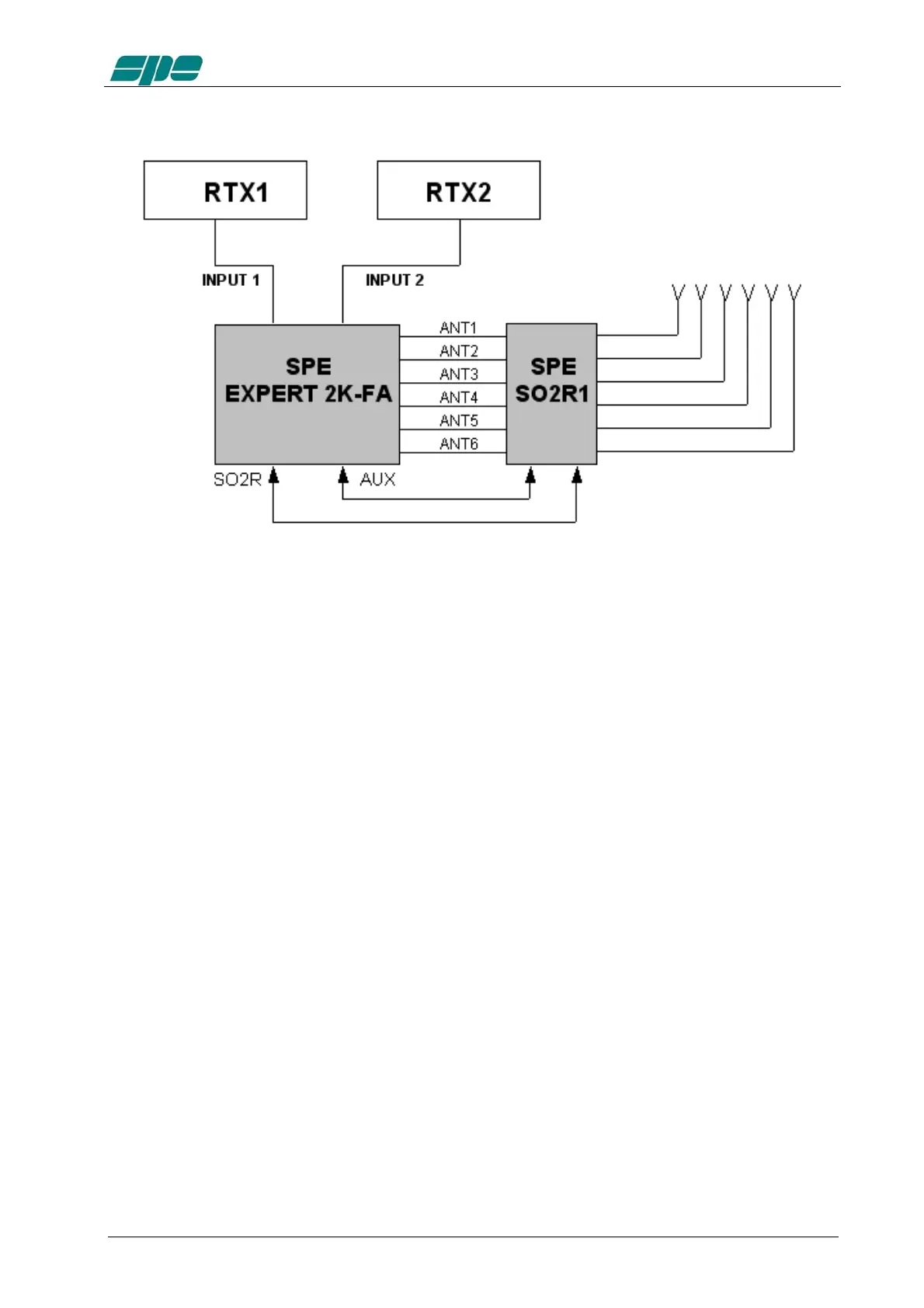

The unit is controlled and powered from the AUX port.
Note: the isolation between the transmitting antenna and the receiving antenna must be very
high and, therefore, very well planned. Locating the antennas at some distance from
each other, and using appropriate band-pass filters will help to achieve this.
However, SPE is not responsible for any damage caused to equipment.
4.2 BAND-PASS FILTERS SET “SPE BPF1”
To increase the isolation between the transmitting and the receiving antenna SPE offers
the optional unit "SPE BPF1" which must be placed between RTX1 / RTX2 and linear.
The unit is controlled and powered from the AUX port.
(Contact factory or your distributor for availability).
The unit automatically enables the following features:
a) DXpetition, Contest Multi / Multi.
In this case the amplifier is connected to a single transceiver (INPUT 1 / 2).
"SPE BPF1 automatically selects the filter on the band to be used in the input where the
transceiver is connected, while the other unrelated input is unused.
