SPE EXPERT 2K-FA - Rear Panel Layout

User manual EXPERT 2K-FA
Pag. 9 of 9 Issue 2 – May 2011

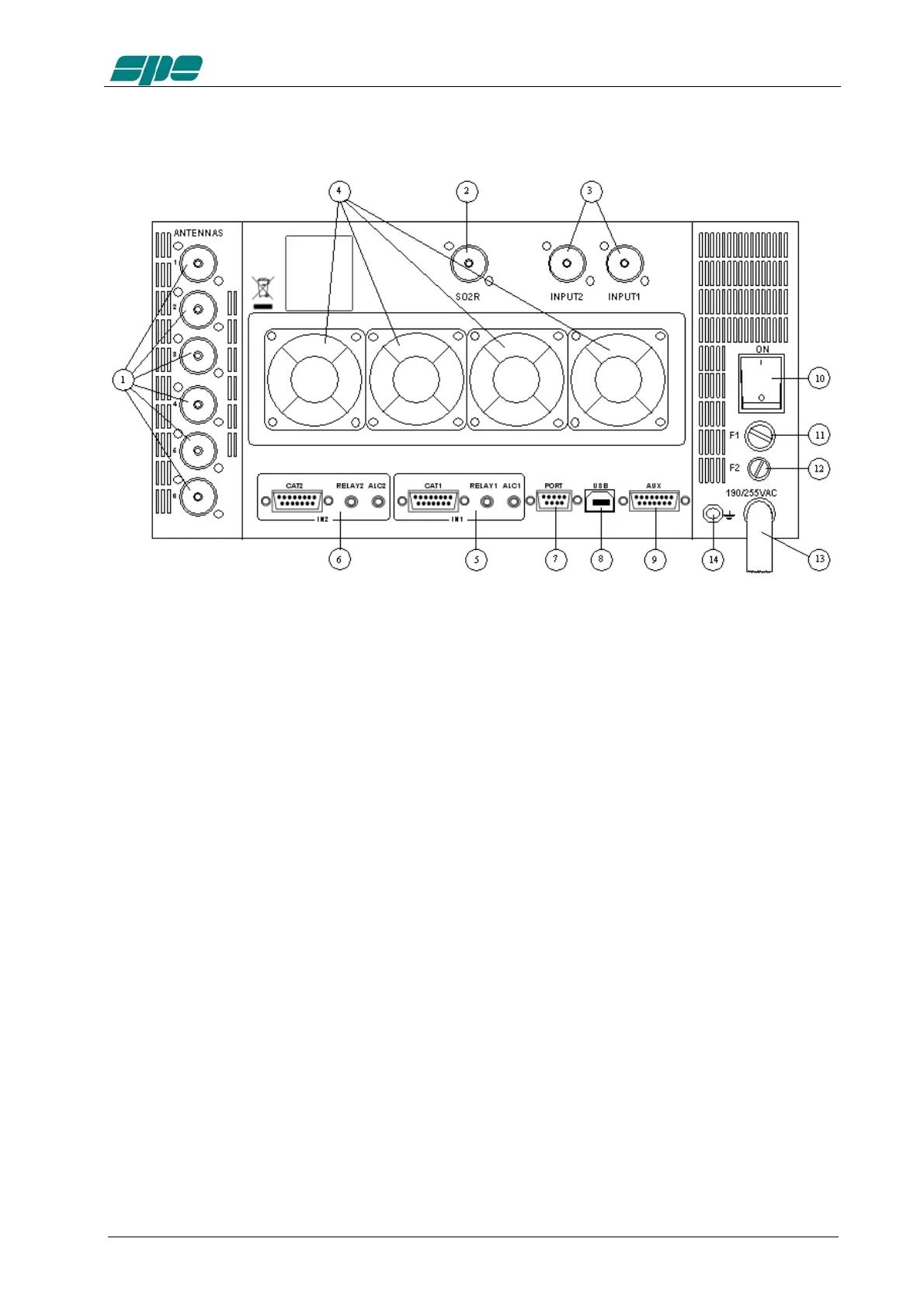

1.2 Rear Panel
1) ANT connectors for six possible antennas.
2) SO2R connector for SO2R operations
3) INPUT connectors to connect two exciters.
4) FANS
5) IN 1 ALC, RELAY, CAT connectors for exciter 1.
6) IN 2 ALC, RELAY, CAT connectors for exciter 2.
7) PORT “PORT”.
8) PORT “USB”.
9) PORT “AUX”.
10) ON main switch.
11) FUSE 1 PA unit, 20A.
12) FUSE 2 electronic unit 0,5A.
13) AC mains power cable.
14) GND ground connector.
