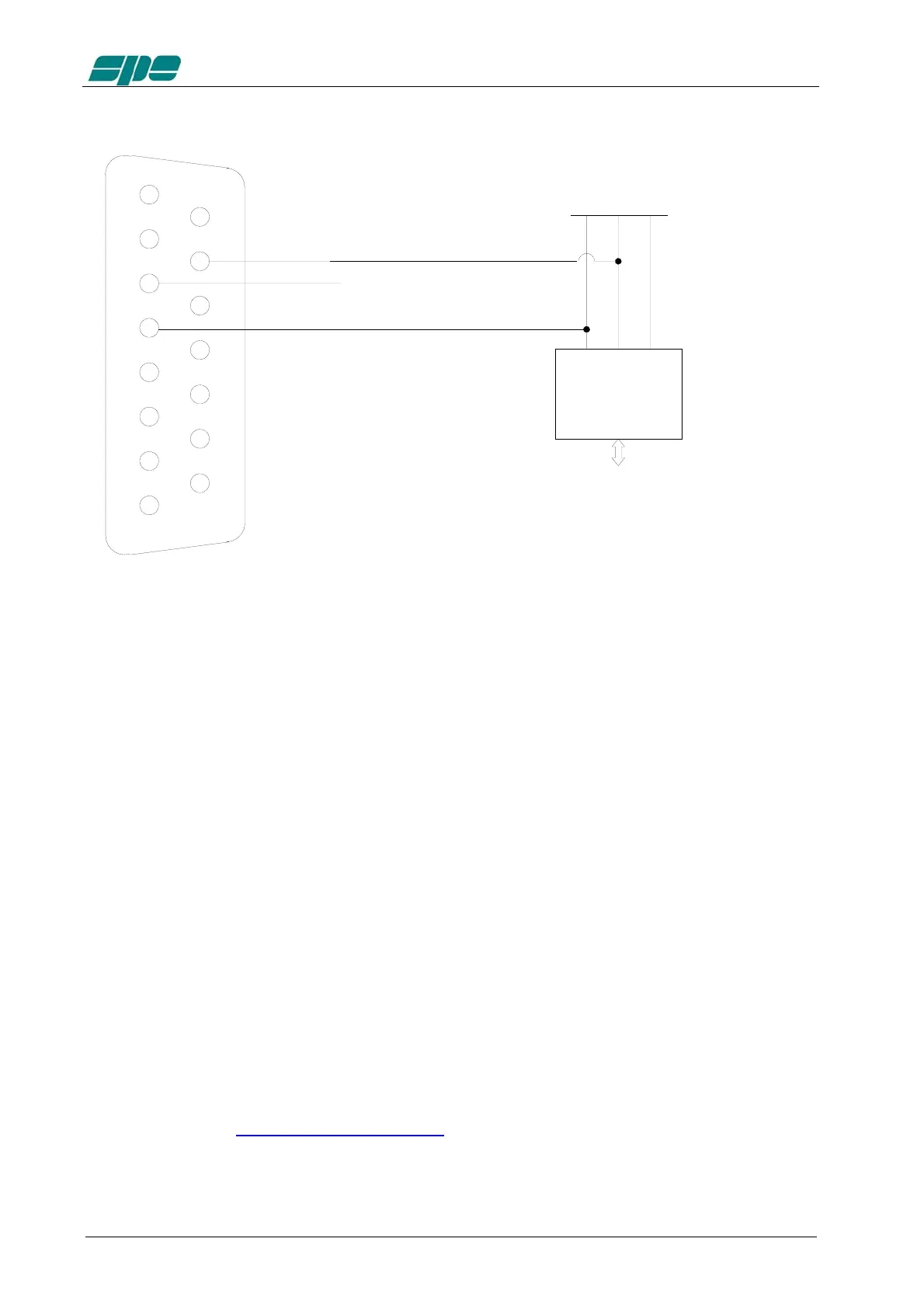

14.4 5V TTL YAESU INTERFACE
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
TX
RX
TTL INTERFACE
PC
GND
TX
RX
TTL
YAESU
RADIO CONNECTOR
DB15
M
RX TTL
TX TTL
X
GND
Note: WARNING, SPE is not responsible for any failure resulting from misuse of HW
interface.
15. USB / RS 232 PORTS USAGE
Through the USB / RS232 ports on the rear panel it is possible to interface the amplifier
with a PC.
Two features are possible
a) To remote the linear.
b) To download the successive versions of SW.
The USB port is recommended in order to directly link the linear with a PC.
In this case the SW “ Term_2K_USB” must be used.
The RS232 port (see “13.5 PORT Connector”) is more suitable for internet use.
In this case the SW “Term_2K_232” must be used.
These ports are in alternative so they can’t be used simultaneously.
From the website www.linear-amplifier.com
you can download these programs.
Note: In the internet use, refer to the manual of the remoting equipment.
