User manual EXPERT 2K-FA
Pag. 60 of 60 Issue 2 – May 2011
20.2 Term_2K_USB.exe usage
It is warmly suggested to create a link to the application on the desktop.
As a first try, let’s double-click on the application’s icon (the USB symbol), using the
mouse left-button, just to see if everything works fine.
It is warmly suggested to create a link to the application on the desktop.

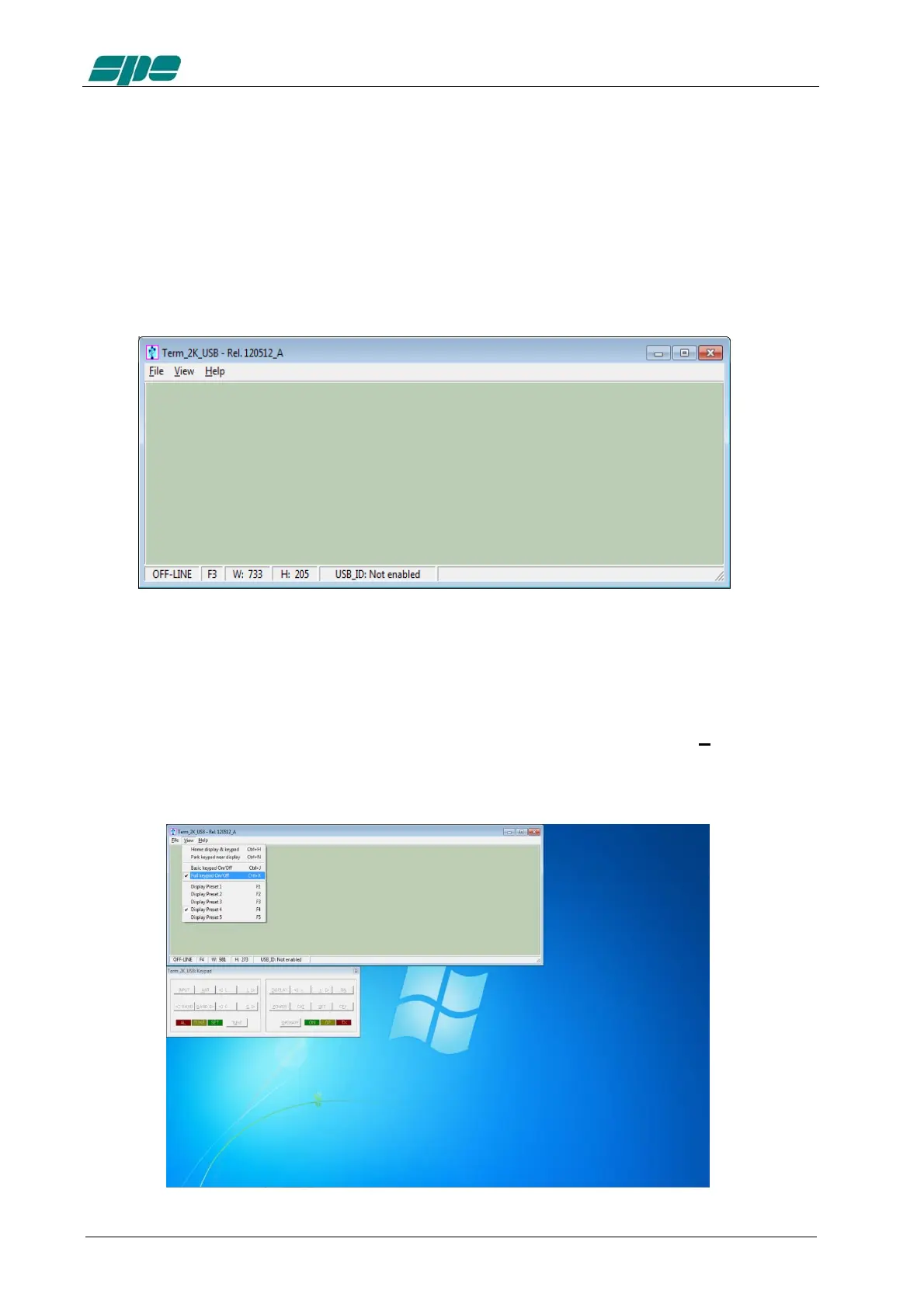

As a result the application window will show off, as in the following picture:
This is the main window of Term_2K_USB.exe application.
It is a realistic hardcopy of the EXPERT 2K-FA LCD display, and it is also equipped with
a pop-up virtual keypad having almost the same look and feel as the real one placed on
the EXPERT 2K-FA front panel.
To activate/deactivate this keypad the user must check/uncheck the View/KeyPad
On/Off menu item as shown in the following screen snapshot:
