SPE EXPERT 2K-FA - YAESU Transceiver CAT Options

User manual EXPERT 2K-FA
Pag. 36 of 36 Issue 2 – May 2011
12.5 YAESU

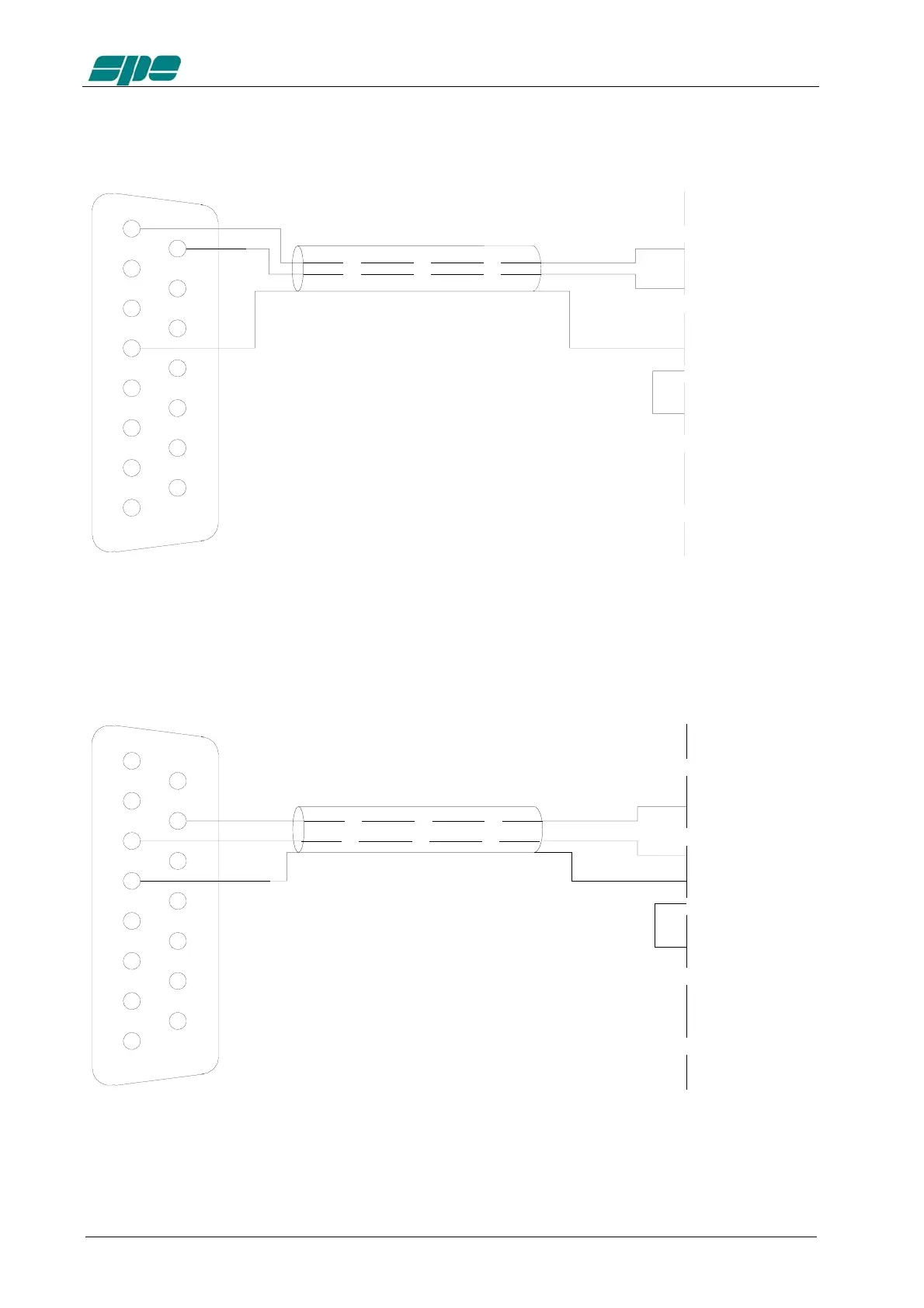

CAT RS232 Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO CONNECTOR
DB15 M
RX 232
TX 232
TX 232
RX 232
RTS
CTS
(RXD)
(TXD)
The radio connector may be a DB-9 or DB-25 male connector or female connector (read
the specific manual). Verify from the manual if the RTS–CTS link is necessary.
CAT 5V TTL Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO CONNECTOR
RX
TX
DB15 M
RX TTL
TX TTL
RTS
CTS
The connector is described in the manual. Verify if the RTS–CTS link is necessary.
