Maintenance
—
44 SPECTROMAXx —
21.02.2020

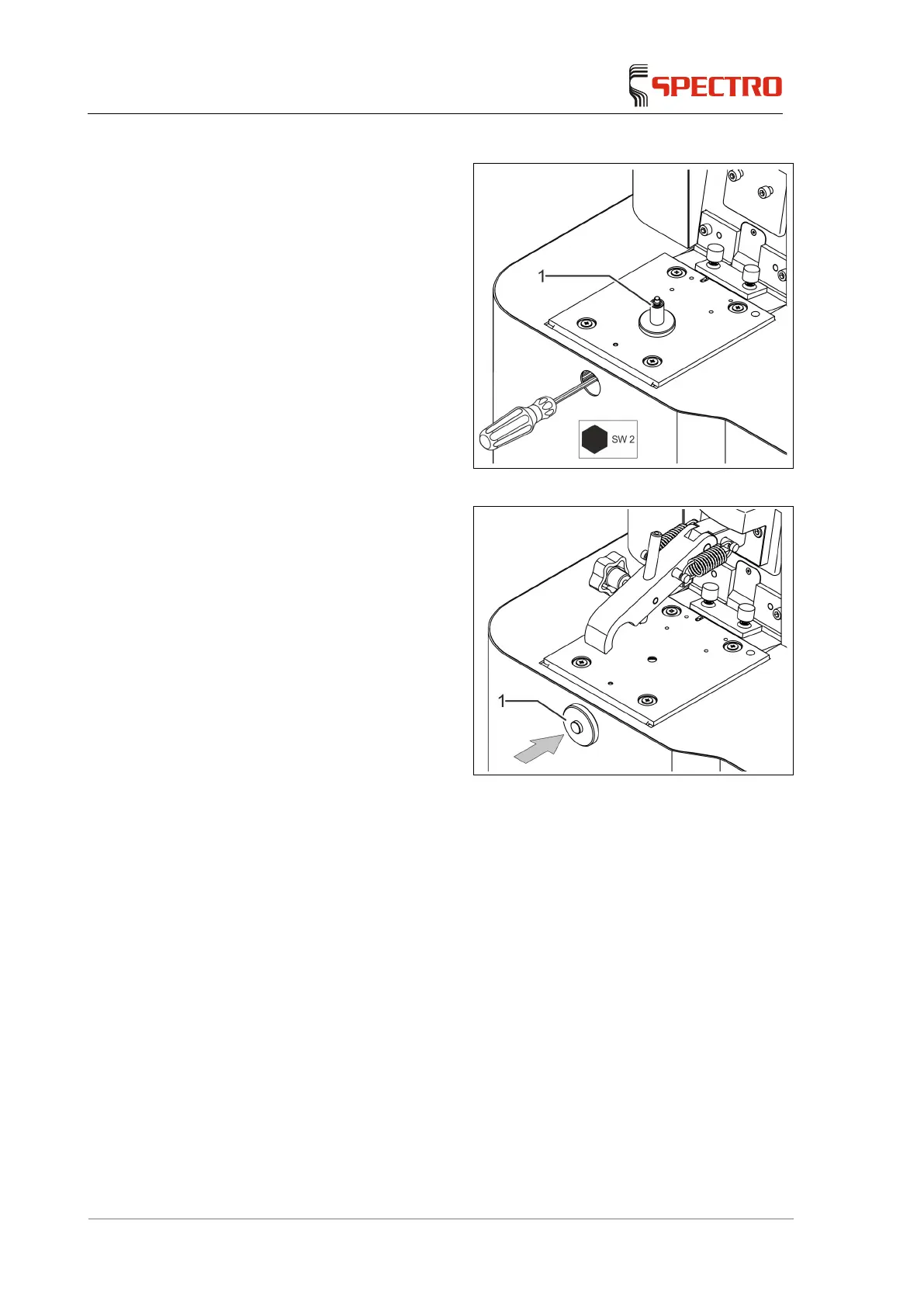

14. Use the setting gage (1) in order
to align the electrode.
 Press the setting gage with
the 3.4 mm shoulder into
the spark stand opening
and at the same time use
the Allen key (AF 2) to
tighten the electrode screw.
Fig. 27
15. Screw the setting gage (1) back
into the spark stand.

The spark stand is now cleaned.
Fig. 28
