Installing GMOS 6
the corresponding holes on the mount plate. Then bolt them together.
With a Hand-made Mount

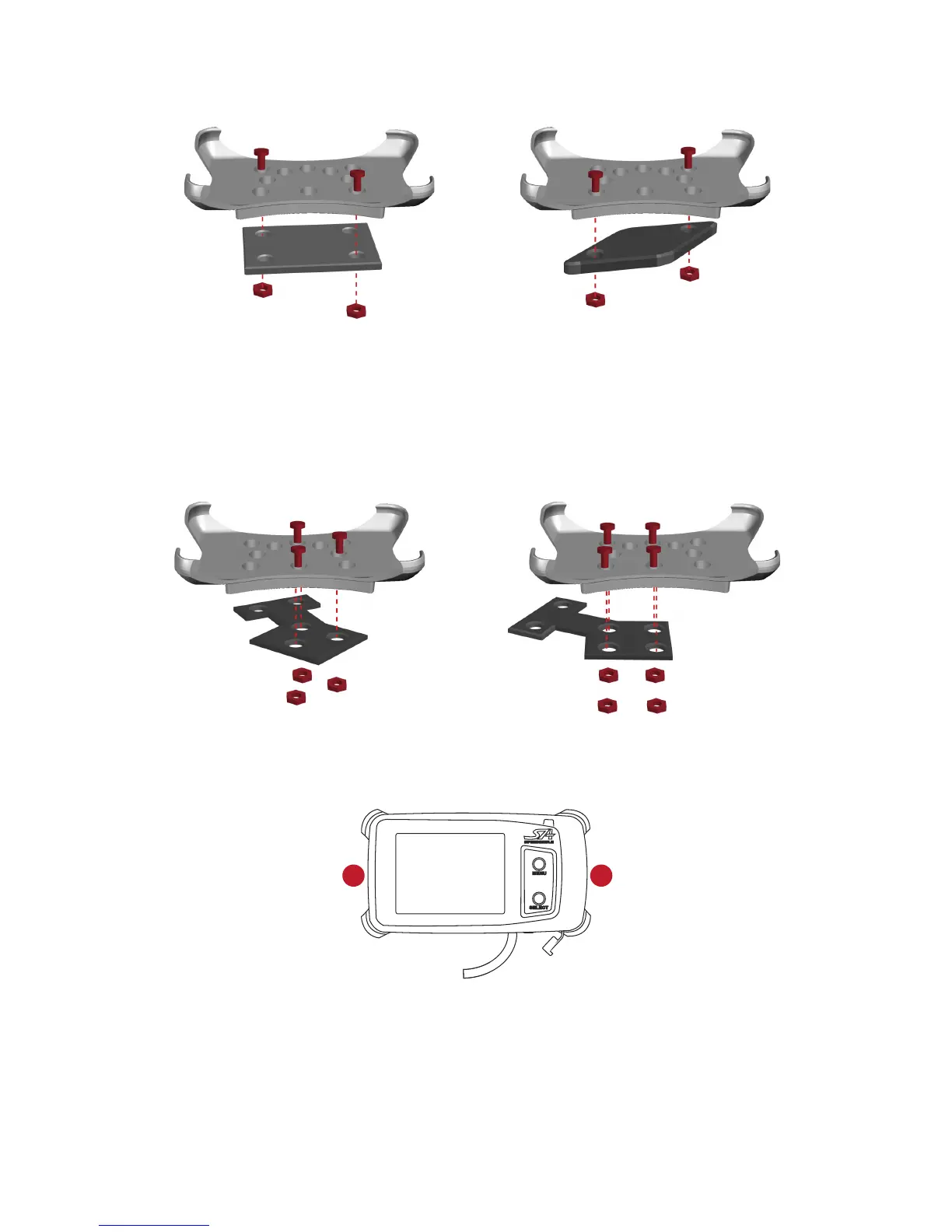

If you would like to make your own mount plate, no problem. The hole pattern on the
bracket is designed to form as many equilateral triangles and squares as possible to
allow you the maximum freedom when adjusting tting orientations. Below are two
examples:
After the bracket is installed, insert the left end of the device into the bracket, then
click the right end into place.
1 2
