Installing GMOS 8

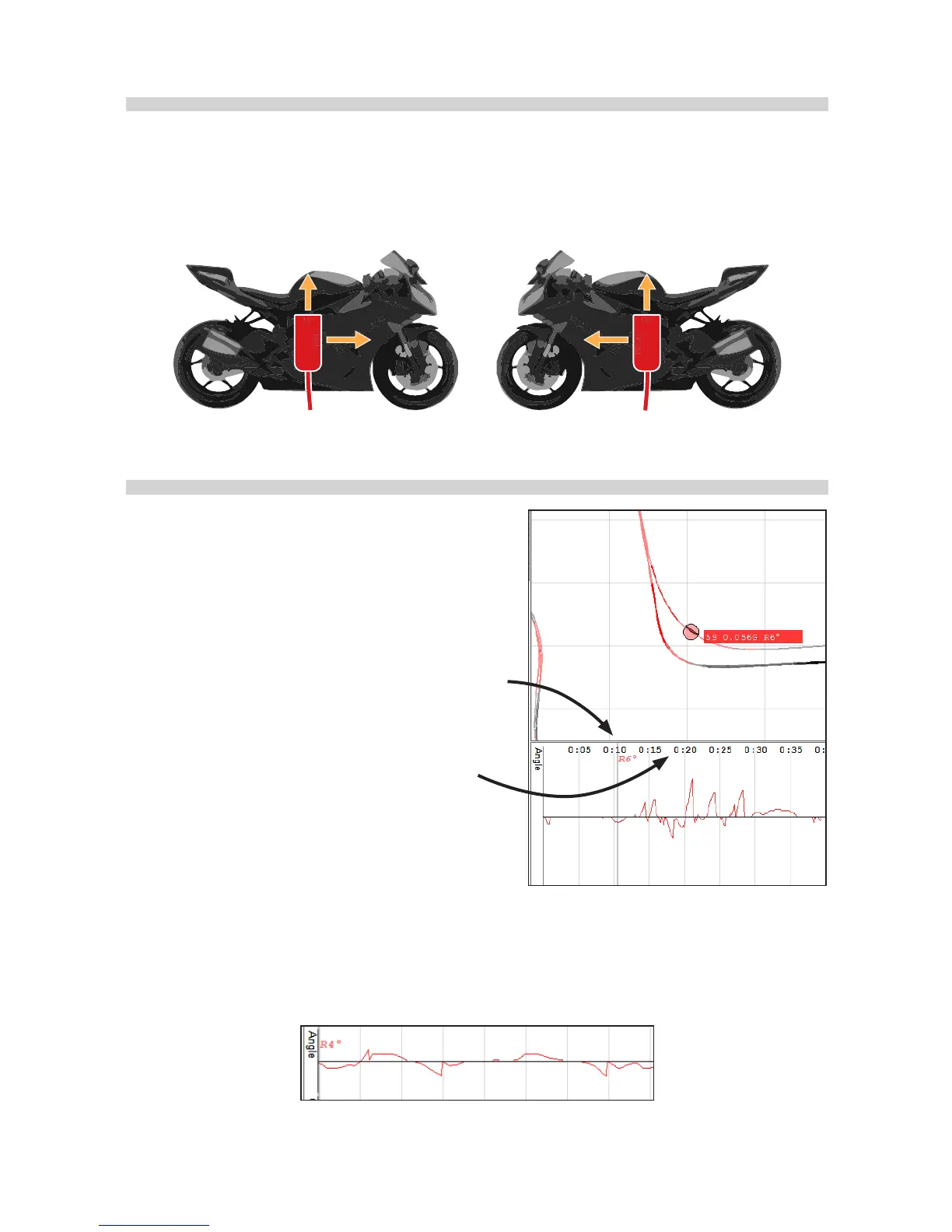

Installation Orientation
Clean the mounting surface with alcohol and let dry. Make sure the “UP” lettering is
pointing upward, and “FRONT” to the front. With the supplied red sponge tape, ad-
here the sensor to the installation location. Please also make sure the sensor cable
is secured.
Signs That the Installation Is Not Correct
Consider changing the installation location if
you see the lean angle meter needle moving
erratically during a turn in Drive Mode, or
you see such lean angle graph pattern as
the gure to the right in the analysis software
SpeedAngle R4:
If your angle shows a similar graph pattern in R4 as below, the sensor is installed in
a wrong direction. Make sure the “FRONT” on the sensor case is pointed to the front
of the bike.
The bike is leaning into a
turn, but the angle degree
measured is near 0: too much
vibration.
These peak-like lean angle
patterns are also a result of
too much vibration.
