63
3. Prepare the microswitch bracket (see fig. 9) for
installation by installing the microswitches and
gathering the hardware:
• Microswitch Screws (x2)
• Microswitch Washers (x2)
• Microswitch Bracket Screw (x2)
• Microswitch Mounting Block
• Microswitch Adjusting Bracket

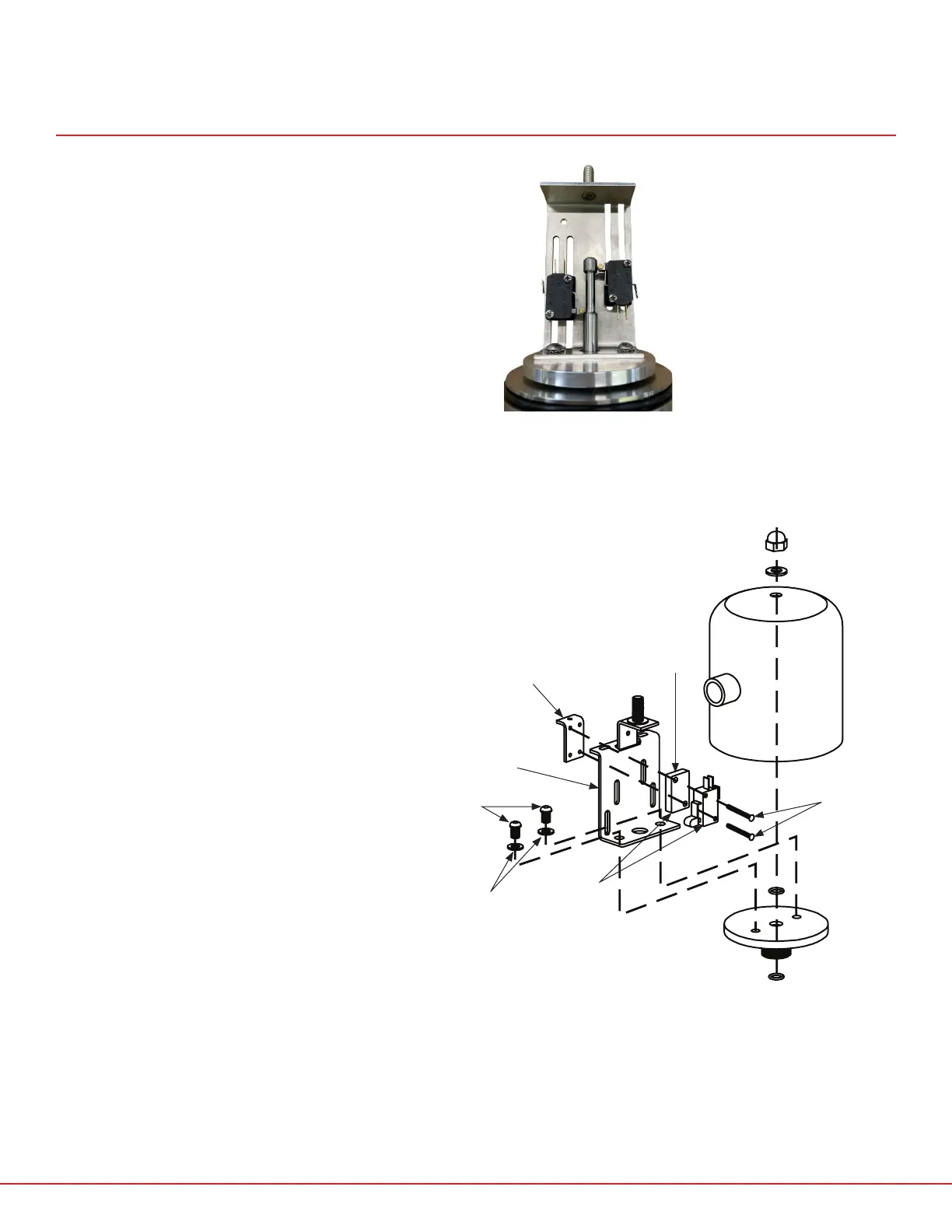

FIG. 8 - MICROSWITCHES
INSTALLED ON BRACKET AND
BRACKET INSTALLED ON
CYLINDER
MICROSWITCH ASSEMBLY INSTRUCTIONS 
SP10MS/SP10PRX/SP20MS/SP20PRX
FIG. 9 - SP10MS/SP10PRX/SP20MS/SP20PRX ACTUATOR DIAGRAM
MICROSWITCH
BRACKET
SP10MS-3
MICRO-
SWITCHES
(X2)
SP10MS-3B
MICROSWITCH
SCREWS (X2)
SP10MS-3C
MICROSWITCH
BRACKET SCREWS (X2)
SP10MS-3L
MICROSWITCH
WASHERS (X2)
SP10MS-3K
MICROSWITCH
MOUNTING BLOCK
SP10MS-3A
MICROSWITCH
ADJUSTING
BRACKET
SP10MS-3D
