42

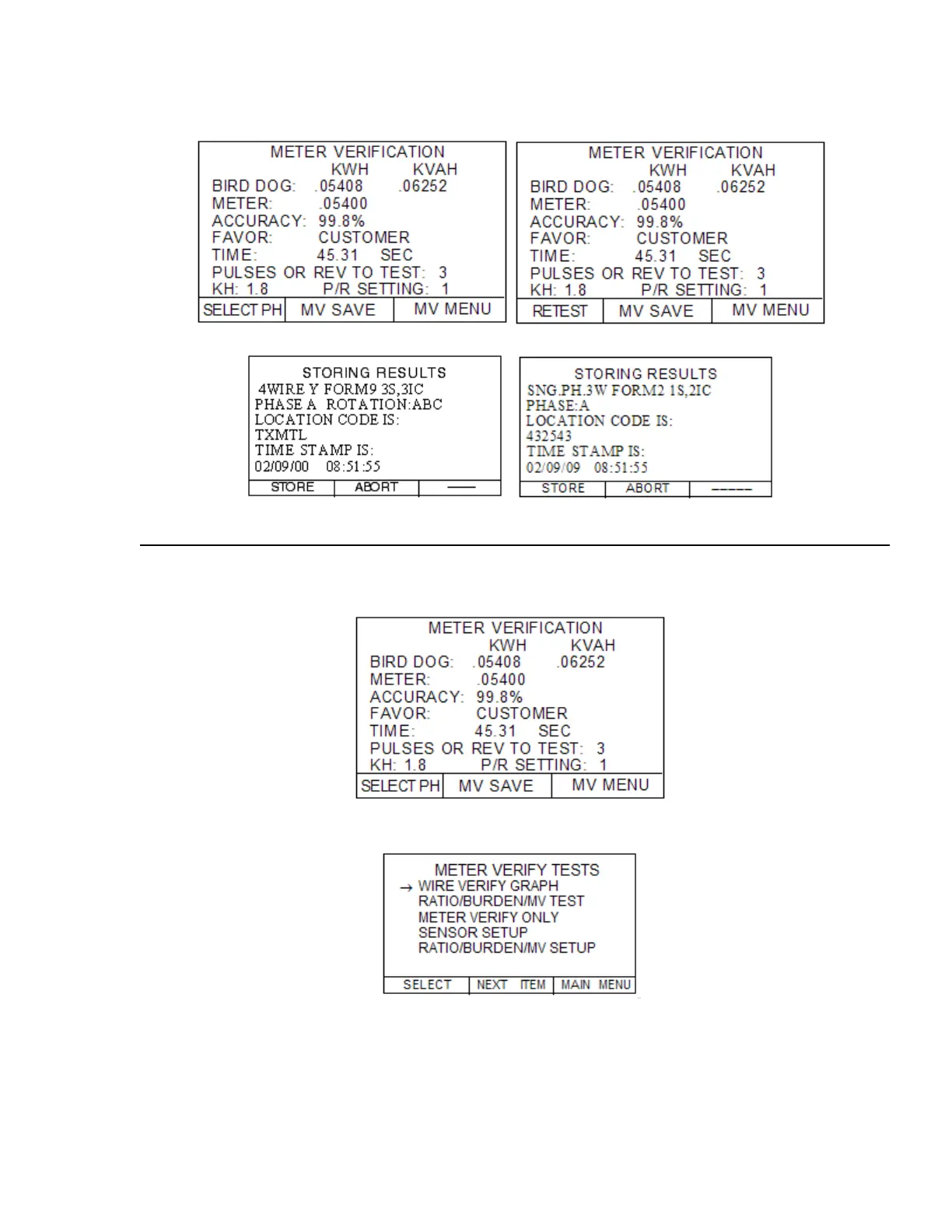

Steps 7.1 & 7.2—Review the METER VERIFICATION screen for proper
ACCURACY & press the MV SAVE button.
Step 7.3—Press the STORE button.
For a Polyphase Meter For a Form 2 Meter
For a Form 1, 2 or 12 Meter stop here. You are done! For a polyphase circuit go to the next step.
Steps 8.1 & 8.2—Unshort all CTs to provide all currents to the meter. Press the MV
MENU button. For a single phase circuit, stop here.
Steps 8.3 & 5.2 —Select the WIRE VERIFY GRAPH go back to Step 5.2.
To Next Page
