Bird Dog Plus. If you want either the High Voltage Probe with fiber optic
cable or the Large I Probes can be carried in the 3
rd
compartment of the
6000 Bird Dog Plus case if you prefer.

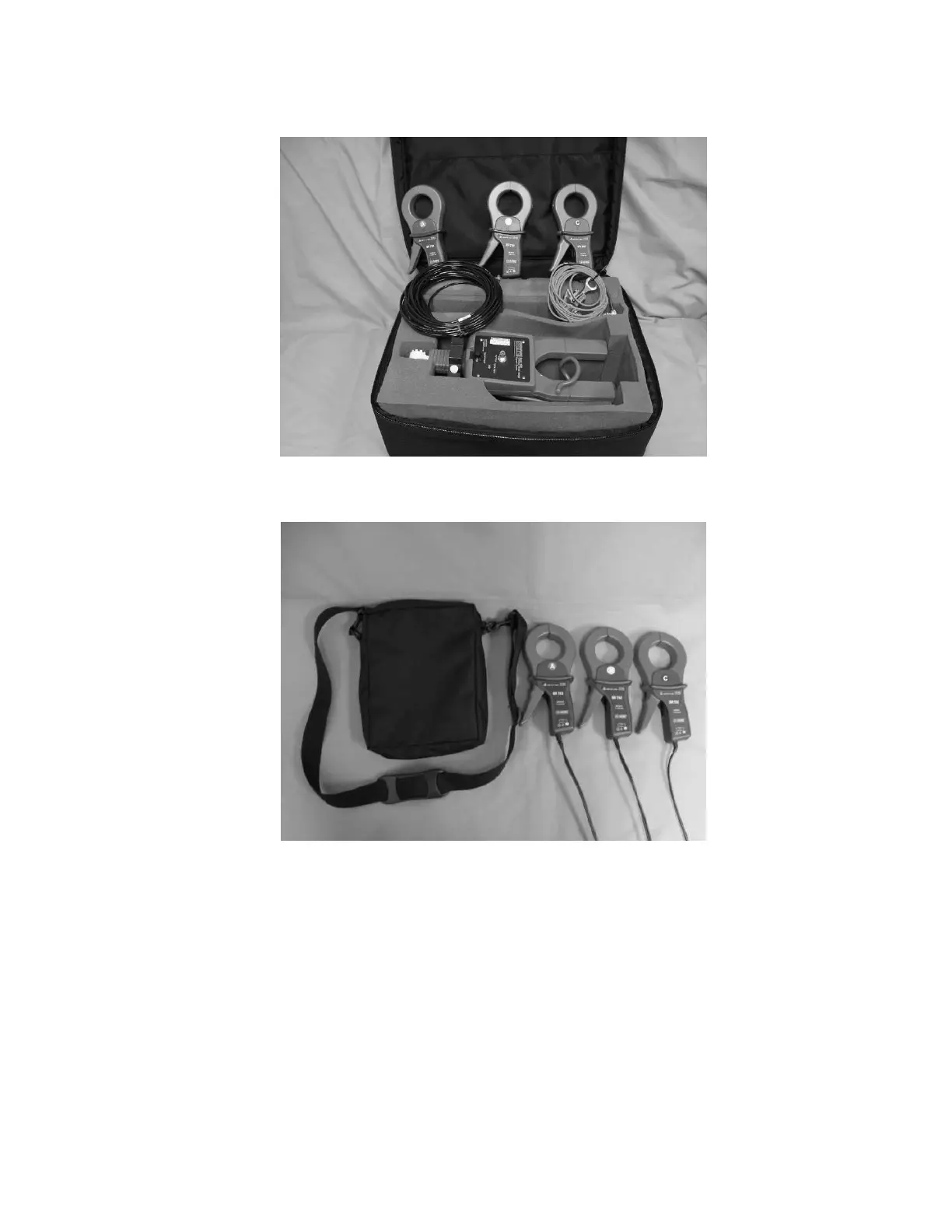

High Voltage Case--Location of the Large I Probes when the 1500 High Voltage Kit is
ordered.
Carrying Pouch--Location of the Large I Probes when the 1500 High Voltage Kit is NOT
ordered.
Note: Connecting the Large I Probes to the 6000 Bird Dog Plus—When you
connect the Large I Probes to the 6000 Bird Dog Plus, all 3 probes have been joined
together to 1 connector. Take this connector and attach it to the connector’s mate in
the 3
rd
compartment of the 6000 carrying case.
o Push button for manual meter verification testing
Behind the 3
rd
compartment is a carrying pouch where the manuals or any other
paperwork can be maintained.
The zipper on the back is used for assembly and disassembly of the parts of the 6000
Bird Dog Plus, normally performed at the factory.
