SECTION F.2.2
SCREEN FLOW FOR SINGLE ELEMENT
METER CIRCUIT TESTING

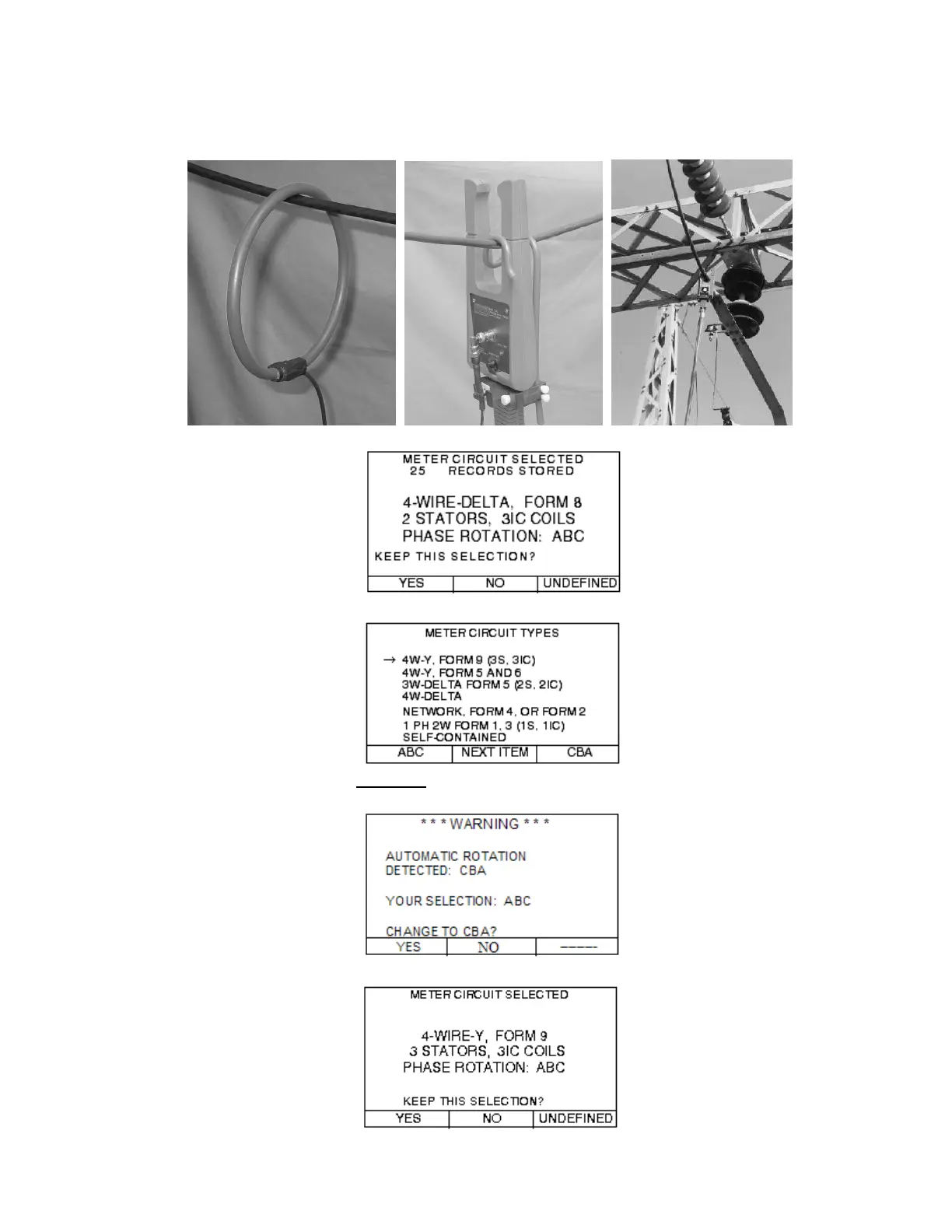

Step 1.1—Hook up the Flexible Coil Probe or the High Voltage Probe like this:
Step 3.1—Select NO if this is not the correct meter type & rotation.
Step 3.2—Select the correct meter type & rotation.
Step 3.2— If you are incorrect as to the rotation, you will see the following message.
Press the YES button:
Step 3.2—Confirm the meter type & rotation selected.
